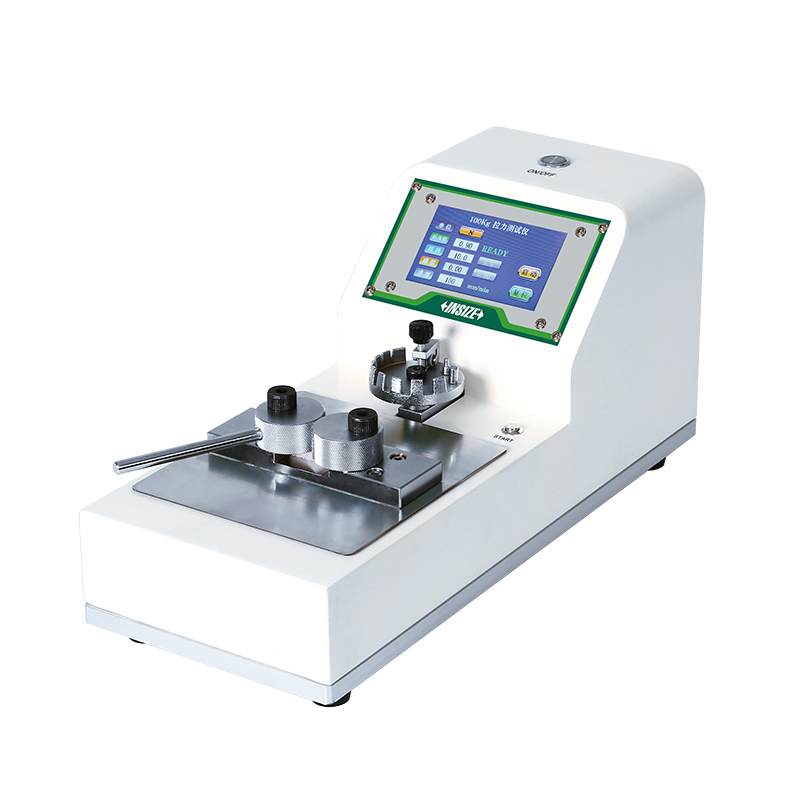

端子拉力测试仪(基础型)
Code: DTM-P Series
符合JJF专用工作测力机校准规范
适用于端子拉力测试,适配各类线束端子生产与质检场景,广泛应用于电子制造、汽车线束、通信设备和家电等行业
一键测试、自动复位、测试灵活、数据可靠
内置28条标准测试程序和16条可修改程序
卡盘适合多种规格的线材和端子, 有特殊要求可定制
| Code | Accuracy | Unit | Test methods | Max. test force |
|---|---|---|---|---|
| DTM-PA500 | ±1% | N, kgf, lbf | retention method, pull-out method | 500N |
| DTM-PA1K | ±1% | N, kgf, lbf | retention method, pull-out method | 1kN |
| DTM-PA3K | ±1% | N, kgf, lbf | retention method, pull-out method | 3kN |
| DTM-PA10K | ±1% | N, kgf, lbf | retention method, pull-out method | 10kN |
| DTM-PB500 | ±1% | N, kgf, lbf | retention method, pull-out method | 500N |
| DTM-PB1K | ±1% | N, kgf, lbf | retention method, pull-out method | 1kN |
| DTM-PB3K | ±1% | N, kgf, lbf | retention method, pull-out method | 3kN |
| DTM-PB10K | ±1% | N, kgf, lbf | retention method, pull-out method | 10kN |

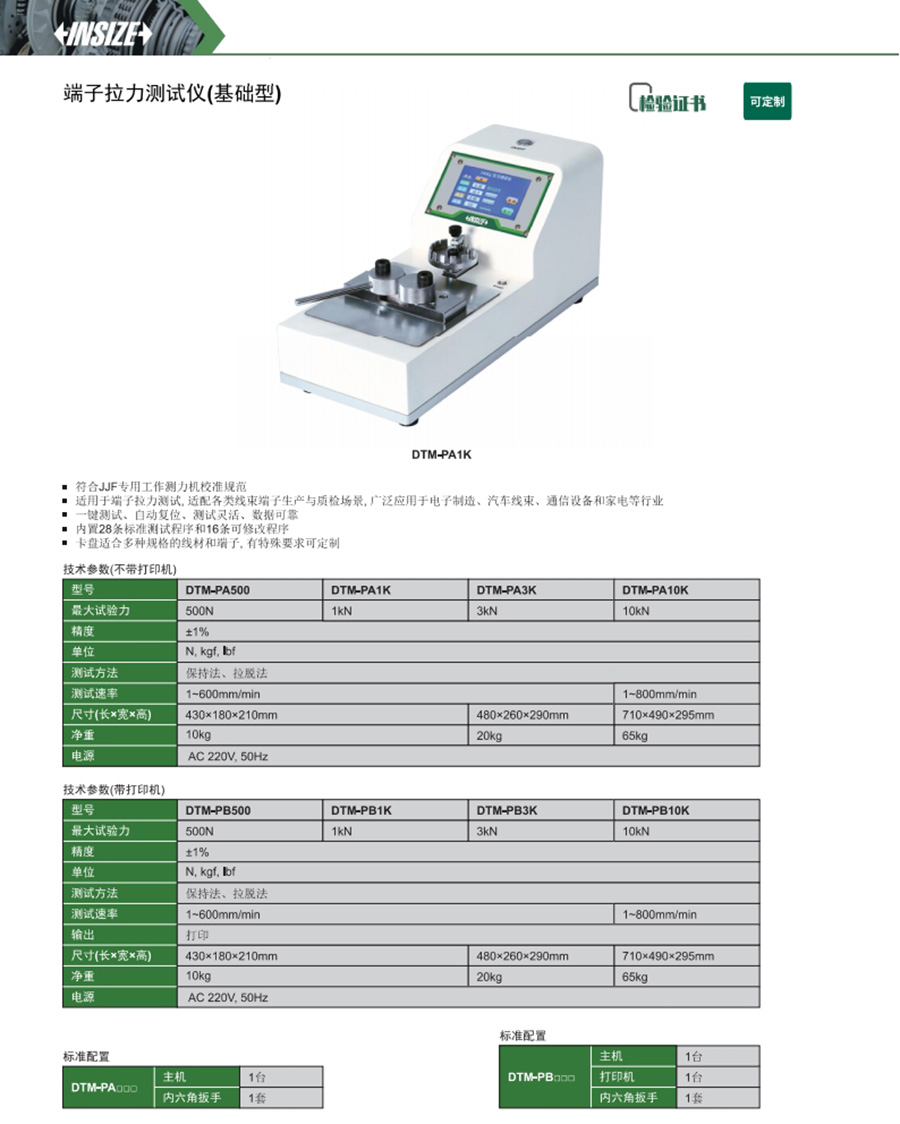

View the complete
product specifications
