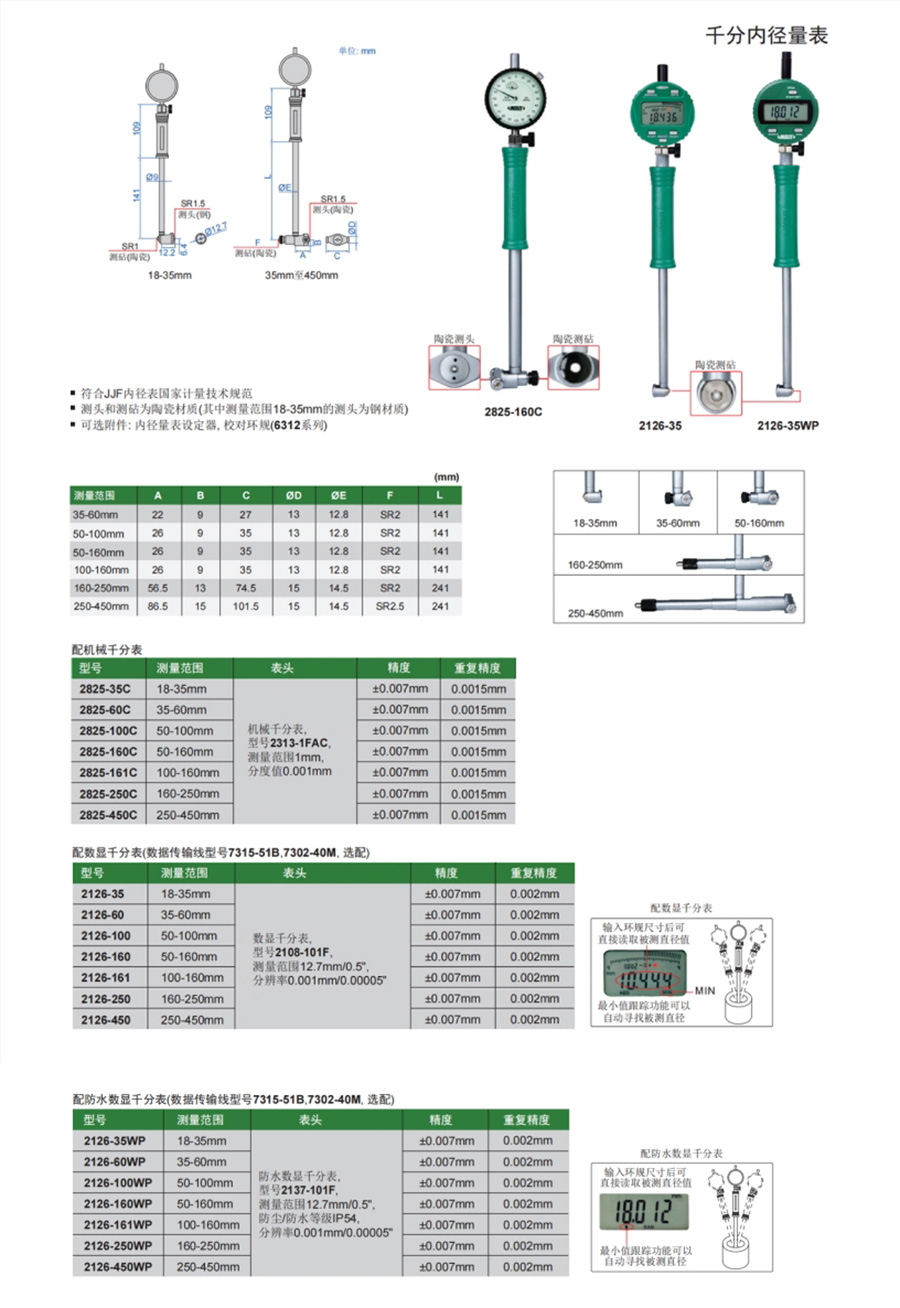

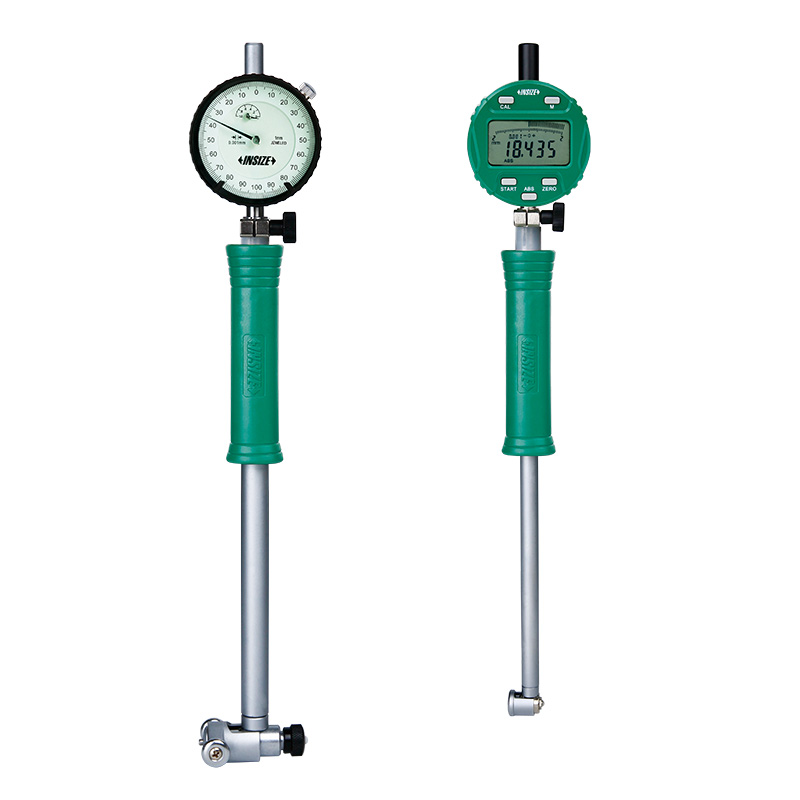

千分内径量表
型号: 2825/2126
符合JJF内径表国家计量技术规范
测头和测砧为陶瓷材质(其中测量范围18-35mm的测头为钢材质)
| 型号 | 测量范围 | 精度 | 重复精度 |
|---|---|---|---|
| 2825-35C | 18-35mm | ±0.007mm | 0.0015mm |
| 2825-60C | 35-60mm | ±0.007mm | 0.0015mm |
| 2825-100C | 50-100mm | ±0.007mm | 0.0015mm |
| 2825-160C | 50-160mm | ±0.007mm | 0.0015mm |
| 2825-161C | 100-160mm | ±0.007mm | 0.0015mm |
| 2825-250C | 160-250mm | ±0.007mm | 0.0015mm |
| 2825-450C | 250-450mm | ±0.007mm | 0.0015mm |
| 2126-35 | 18-35mm | ±0.007mm | 0.002mm |
| 2126-60 | 35-60mm | 0.002mm | 0.002mm |
| 2126-100 | 50-100mm | 0.002mm | 0.002mm |
| 2126-160 | 50-160mm | 0.002mm | 0.002mm |
| 2126-161 | 100-160mm | 0.002mm | 0.002mm |
| 2126-250 | 160-250mm | 0.002mm | 0.002mm |
| 2126-450 | 250-450mm | 0.002mm | 0.002mm |
| 2126-35WP | 18-35mm | ±0.007mm | 0.002mm |
| 2126-60WP | 35-60mm | 0.002mm | 0.002mm |
| 2126-100WP | 50-100mm | 0.002mm | 0.002mm |
| 2126-160WP | 50-160mm | 0.002mm | 0.002mm |
| 2126-161WP | 100-160mm | 0.002mm | 0.002mm |
| 2126-250WP | 160-250mm | 0.002mm | 0.002mm |
| 2126-450WP | 250-450mm | 0.002mm | 0.002mm |
