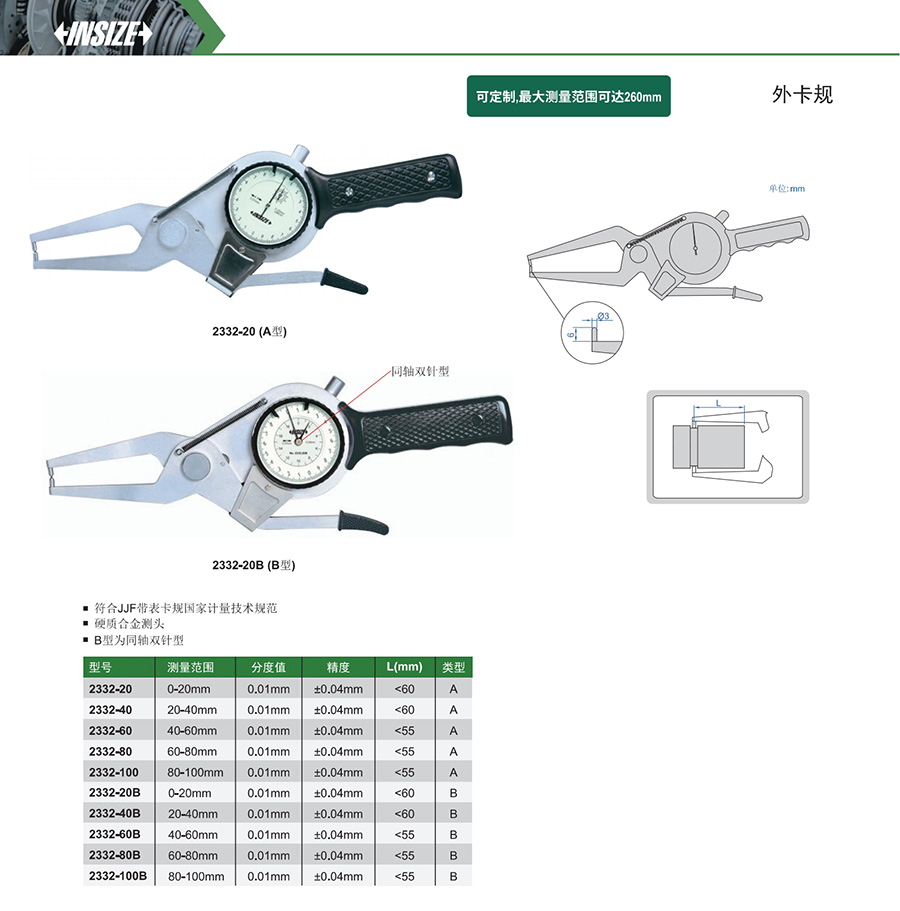

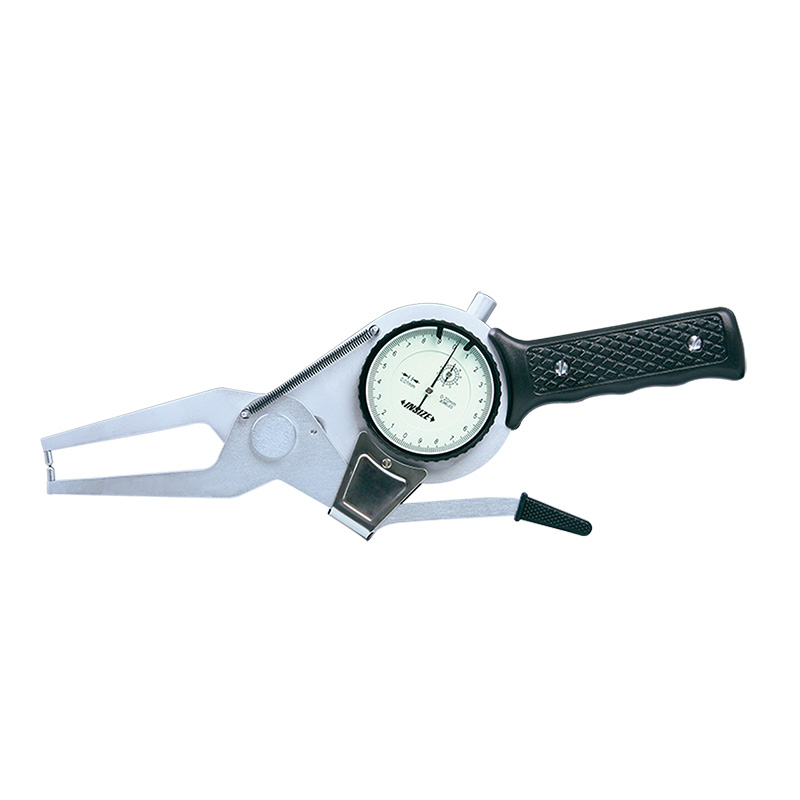

外卡规
型号: 2332
符合JJF带表卡规国家计量技术规范
硬质合金测头
B型为同轴双针型
| 型号 | 测量范围 | 精度 | 分度值 |
|---|---|---|---|
| 2332-20 | 0-20mm | ±0.04mm | 0.01mm |
| 2332-40 | 20-40mm | ±0.04mm | 0.01mm |
| 2332-60 | 40-60mm | ±0.04mm | 0.01mm |
| 2332-80 | 60-80mm | ±0.04mm | 0.01mm |
| 2332-100 | 80-100mm | ±0.04mm | 0.01mm |
| 2332-20B | 0-20mm | ±0.04mm | 0.01mm |
| 2332-40B | 20-40mm | ±0.04mm | 0.01mm |
| 2332-60B | 40-60mm | ±0.04mm | 0.01mm |
| 2332-80B | 60-80mm | ±0.04mm | 0.01mm |
| 2332-100B | 80-100mm | ±0.04mm | 0.01mm |
