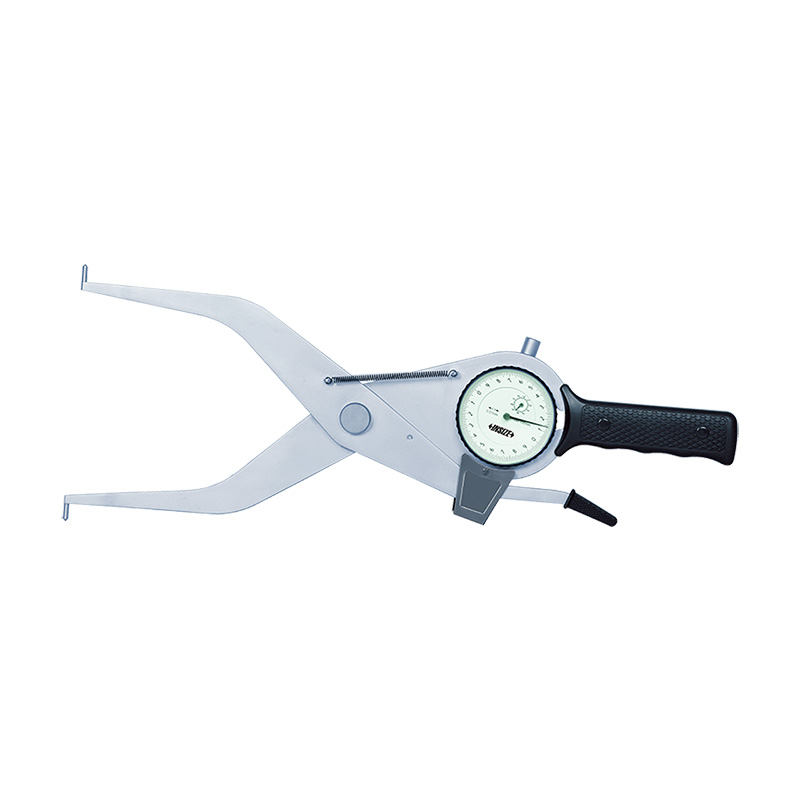

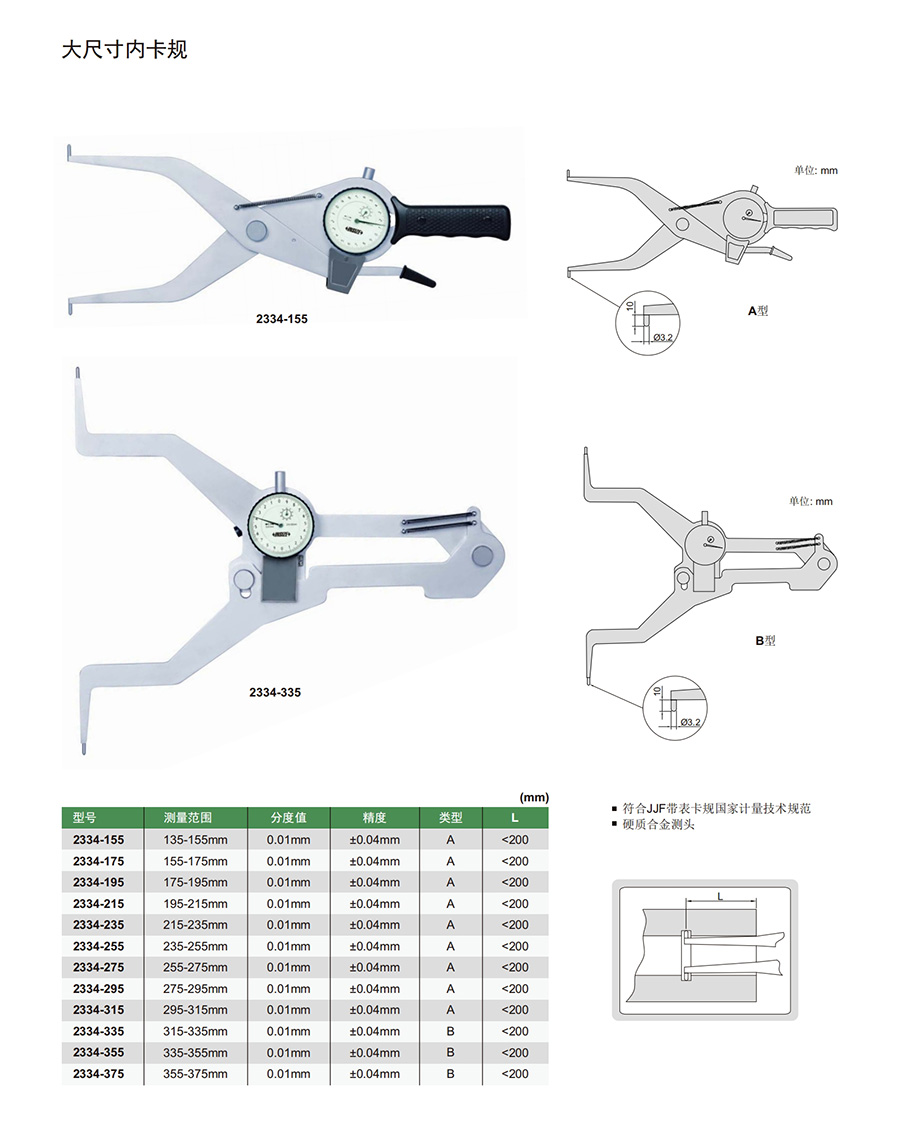

大尺寸内卡规
型号: 2334
符合JJF带表卡规国家计量技术规范
硬质合金测头
| 型号 | 测量范围 | 精度 | 分度值 |
|---|---|---|---|
| 2334-155 | 135-155mm | ±0.04mm | 0.01mm |
| 2334-175 | 155-175mm | ±0.04mm | 0.01mm |
| 2334-195 | 175-195mm | ±0.04mm | 0.01mm |
| 2334-215 | 195-215mm | ±0.04mm | 0.01mm |
| 2334-235 | 215-235mm | ±0.04mm | 0.01mm |
| 2334-255 | 235-255mm | ±0.04mm | 0.01mm |
| 2334-275 | 255-275mm | ±0.04mm | 0.01mm |
| 2334-295 | 275-295mm | ±0.04mm | 0.01mm |
| 2334-315 | 295-315mm | ±0.04mm | 0.01mm |
| 2334-335 | 315-335mm | ±0.04mm | 0.01mm |
| 2334-355 | 335-355mm | ±0.04mm | 0.01mm |
| 2334-375 | 355-375mm | ±0.04mm | 0.01mm |
