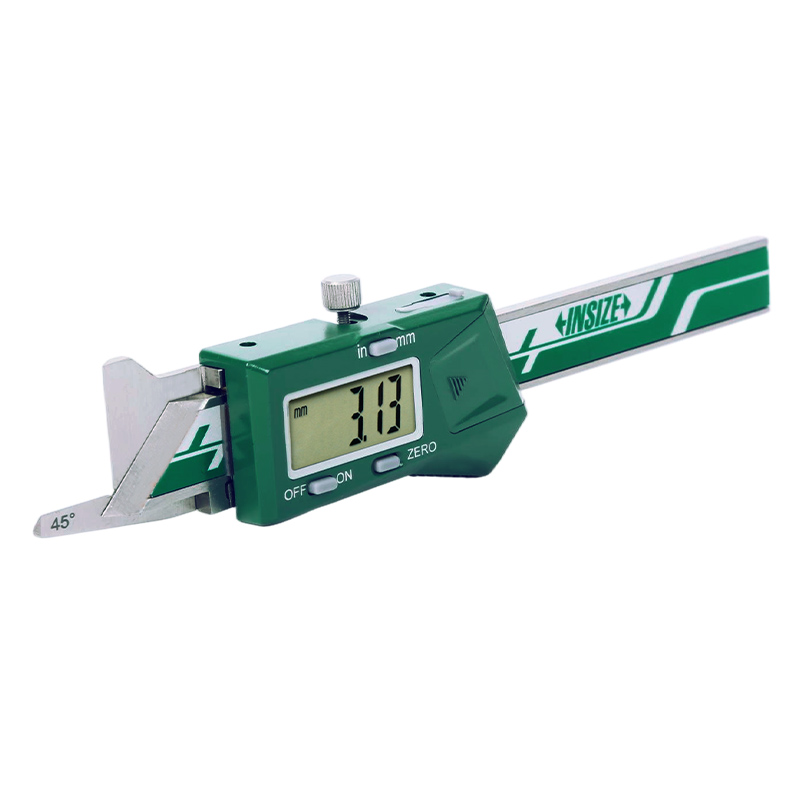

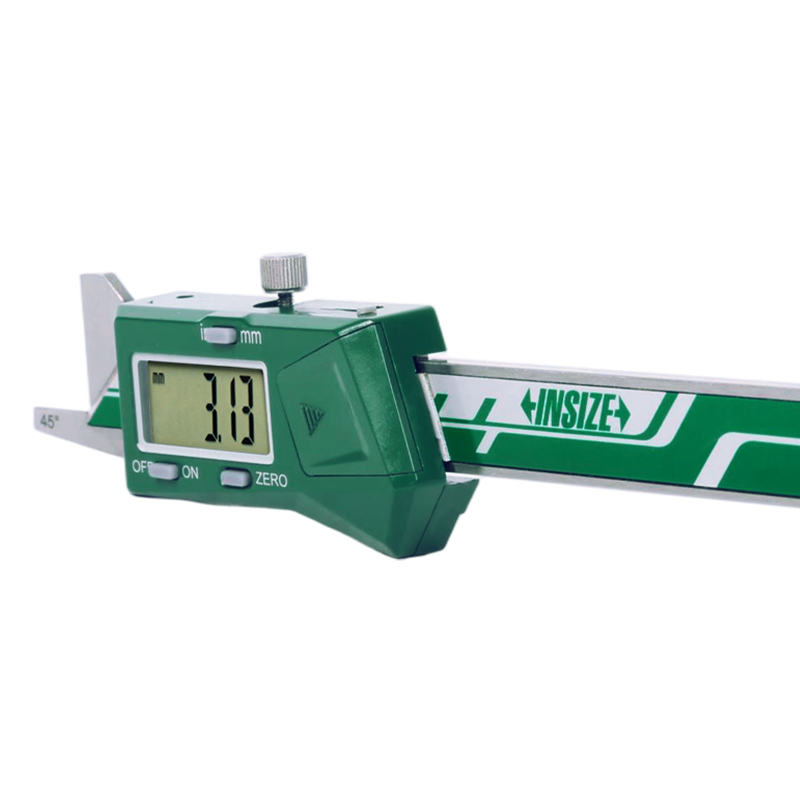

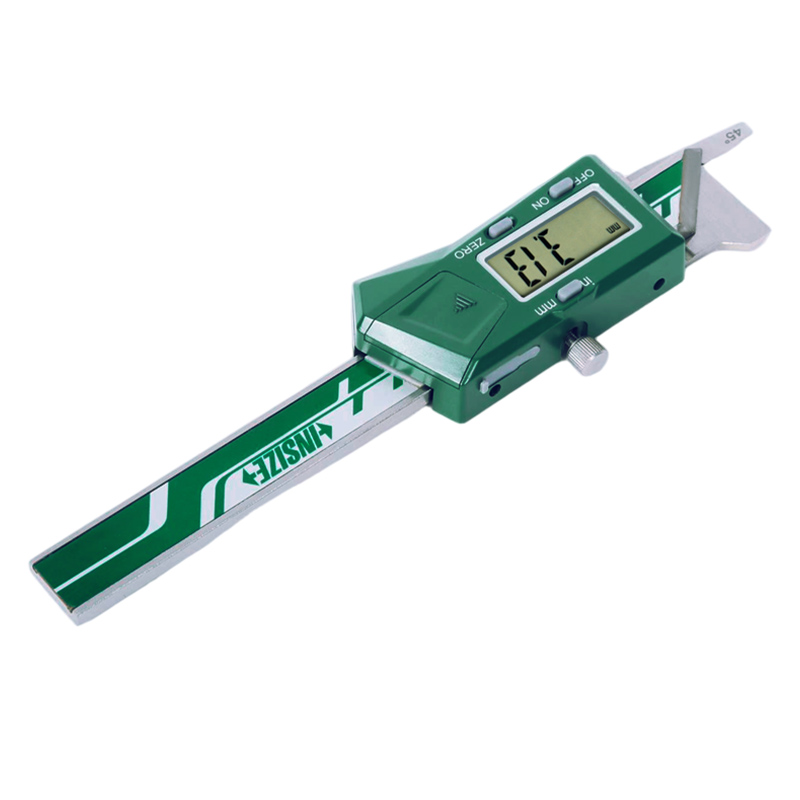

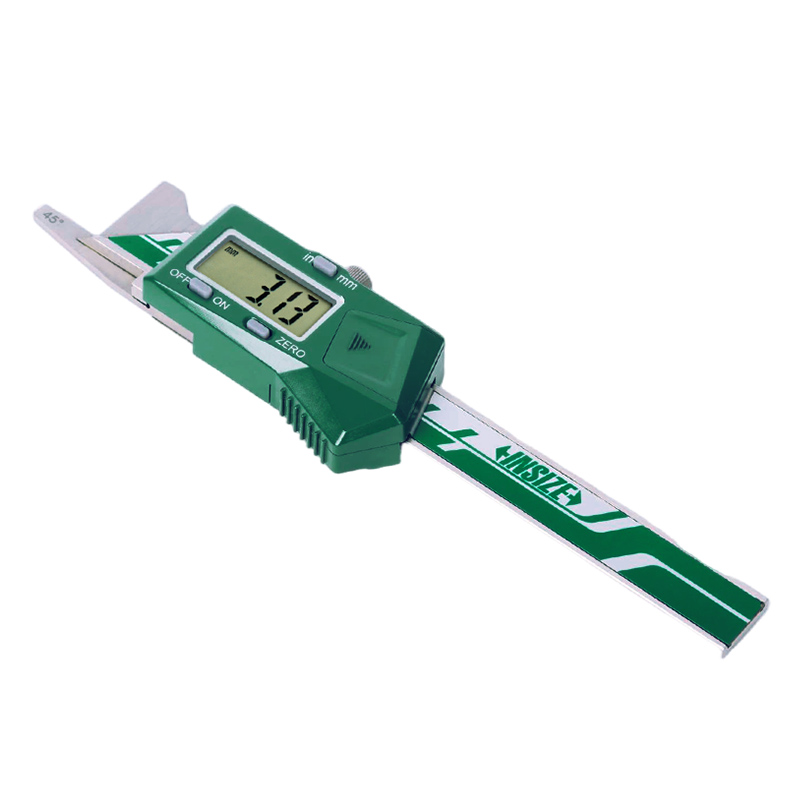

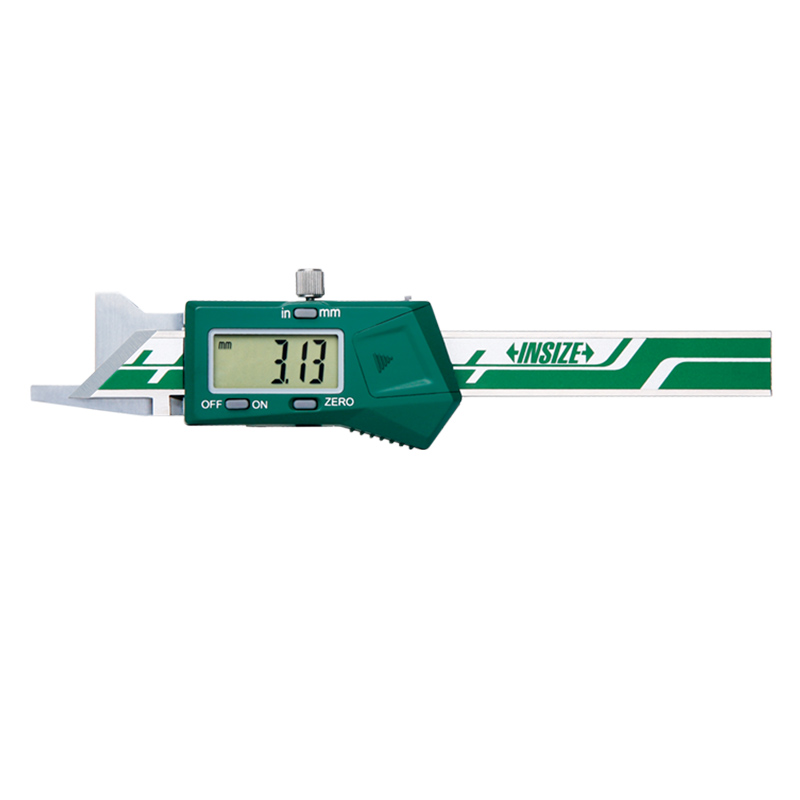

数显倒角规
型号: 1180
符合企业标准
不防水
测量15°/20°/30°/45°/60°倒角尺寸
分辨率: 0.01mm/0.0005"
按键: 开/关, 置零, 公/英制转换
自动关机, 拉动尺身开机
CR2032电池
不锈钢尺身

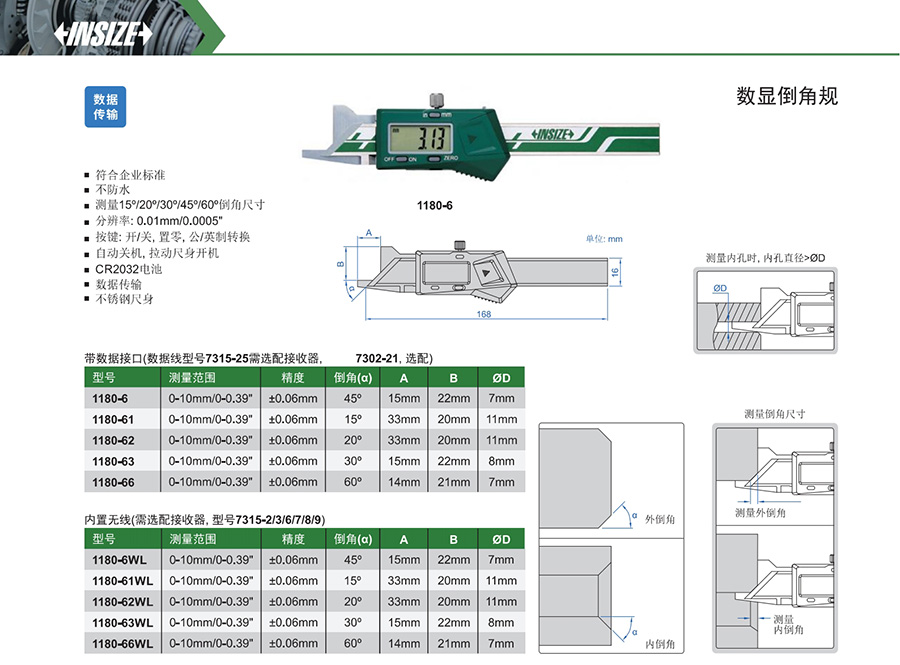

| 型号 | 测量范围 | 精度 | 分辨率 | 倒角 (α) |
|---|---|---|---|---|
| 1180-6 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 45º |
| 1180-61 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 15º |
| 1180-62 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 20º |
| 1180-63 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 30º |
| 1180-66 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 60º |
| 1180-6WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 45º |
| 1180-61WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 15º |
| 1180-62WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 20º |
| 1180-63WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 30º |
| 1180-66WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" | 60º |
