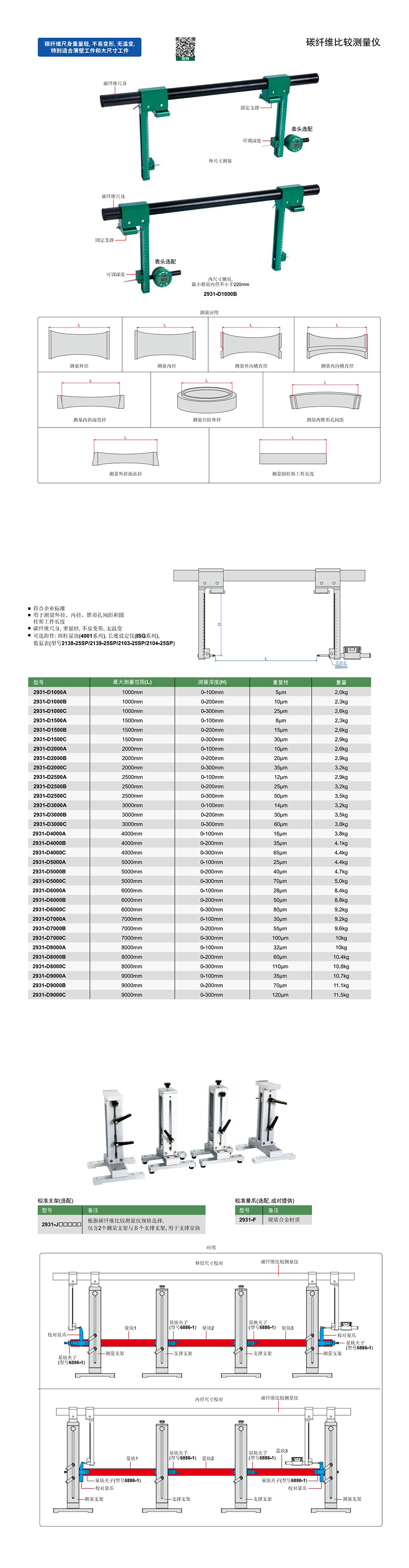

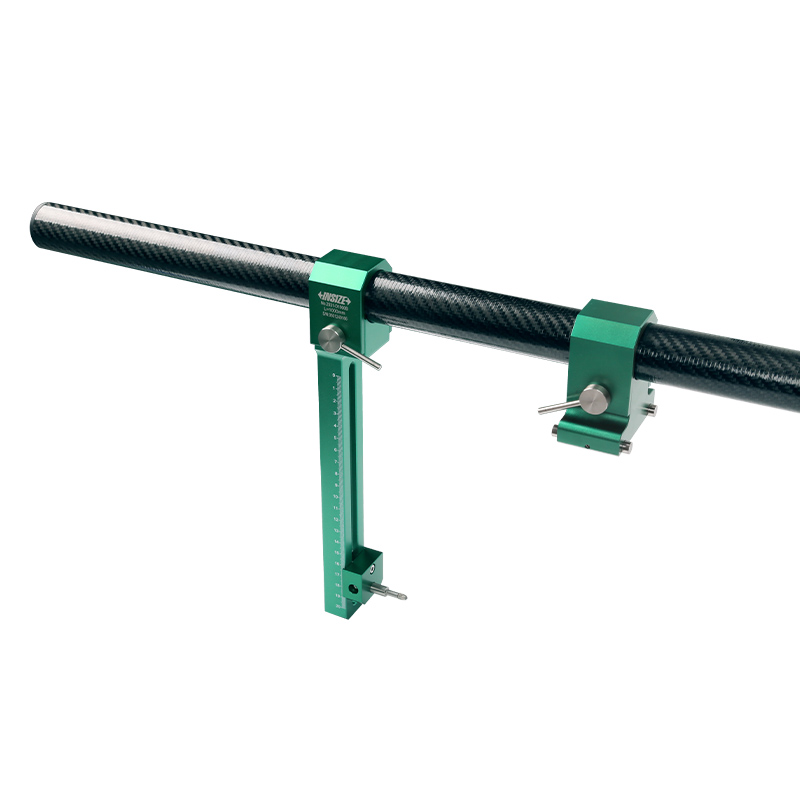

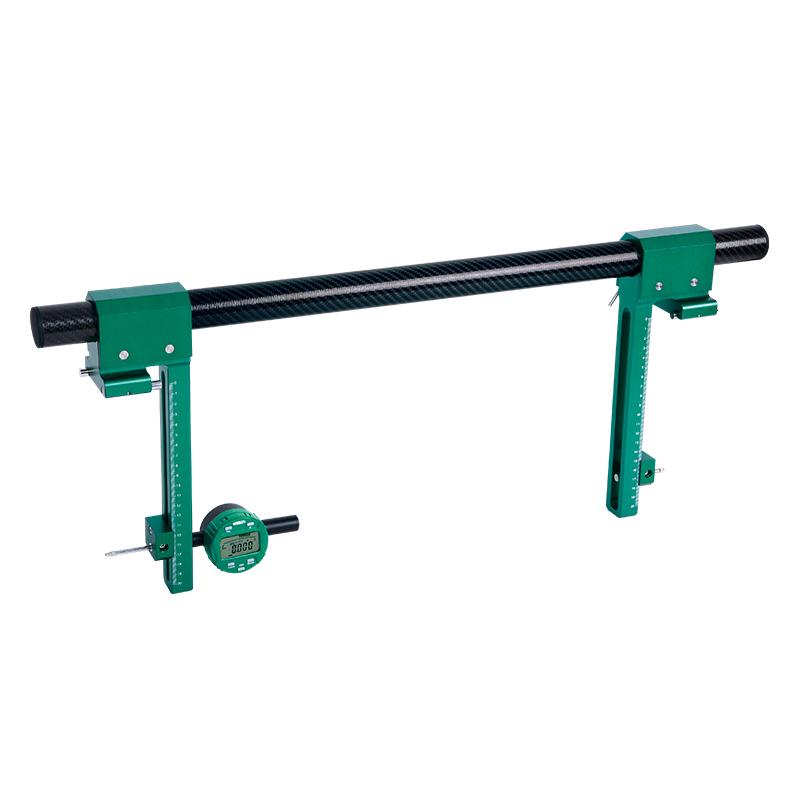

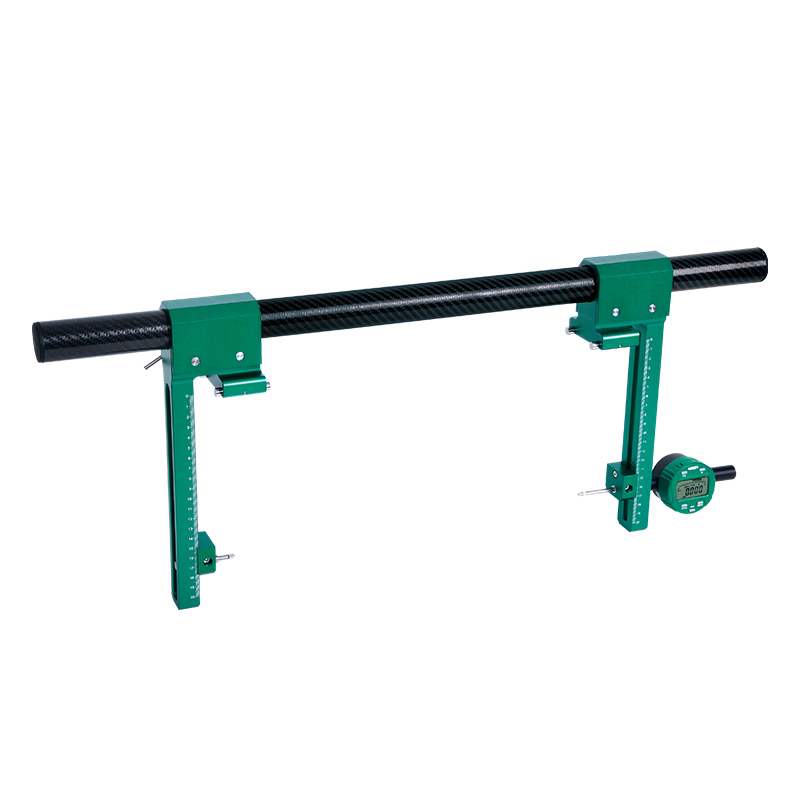

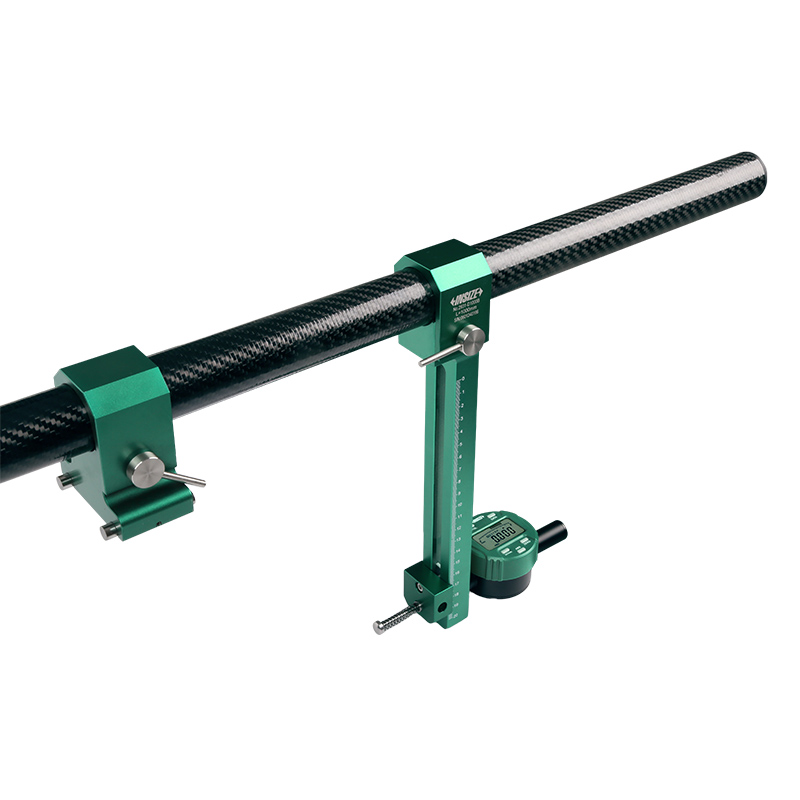

Carbon Fiber Comparison Gauges
Code: 2931
符合企业标准
用于测量外径、内径、锥形孔间距和圆柱形工件长度
碳纤维尺身, 重量轻, 不易变形, 无温变
可选附件: 圆柱量块(4001系列), 长度设定仪(ISQ系列), 数显表(型号2138-25SP/2139-25SP/2103-25SP/2104-25SP)
| Code | Measuring depth (H) | Repeatability | Maximum measuring range |
|---|---|---|---|
| 2931-D1000A | 0-100mm | 5μm | 1000mm |
| 2931-D1000B | 0-200mm | 10μm | 1000mm |
| 2931-D1000C | 0-300mm | 25μm | 1000mm |
| 2931-D1500A | 0-100mm | 8μm | 1500mm |
| 2931-D1500B | 0-200mm | 15μm | 1500mm |
| 2931-D1500C | 0-300mm | 30μm | 1500mm |
| 2931-D2000A | 0-100mm | 10μm | 2000mm |
| 2931-D2000B | 0-200mm | 20μm | 2000mm |
| 2931-D2000C | 0-300mm | 35μm | 2000mm |
| 2931-D2500A | 0-100mm | 12μm | 2500mm |
| 2931-D2500B | 0-200mm | 25μm | 2500mm |
| 2931-D2500C | 0-300mm | 50μm | 2500mm |
| 2931-D3000A | 0-100mm | 14μm | 3000mm |
| 2931-D3000B | 0-200mm | 30μm | 3000mm |
| 2931-D3000C | 0-300mm | 60μm | 3000mm |
| 2931-D4000A | 0-100mm | 16μm | 4000mm |
| 2931-D4000B | 0-200mm | 35μm | 4000mm |
| 2931-D4000C | 0-300mm | 65μm | 4000mm |
| 2931-D5000A | 0-100mm | 25μm | 5000mm |
| 2931-D5000B | 0-200mm | 40μm | 5000mm |
| 2931-D5000C | 0-300mm | 70μm | 5000mm |
| 2931-D6000A | 0-100mm | 28μm | 6000mm |
| 2931-D6000B | 0-200mm | 50μm | 6000mm |
| 2931-D6000C | 0-300mm | 80μm | 6000mm |
| 2931-D7000A | 0-100mm | 30μm | 7000mm |
| 2931-D7000B | 0-200mm | 55μm | 7000mm |
| 2931-D7000C | 0-300mm | 100μm | 7000mm |
| 2931-D8000A | 0-100mm | 32μm | 8000mm |
| 2931-D8000B | 0-200mm | 60μm | 8000mm |
| 2931-D8000C | 0-300mm | 110μm | 8000mm |
| 2931-D9000A | 0-100mm | 35μm | 9000mm |
| 2931-D9000B | 0-200mm | 70μm | 9000mm |
| 2931-D9000C | 0-300mm | 120μm | 9000mm |
