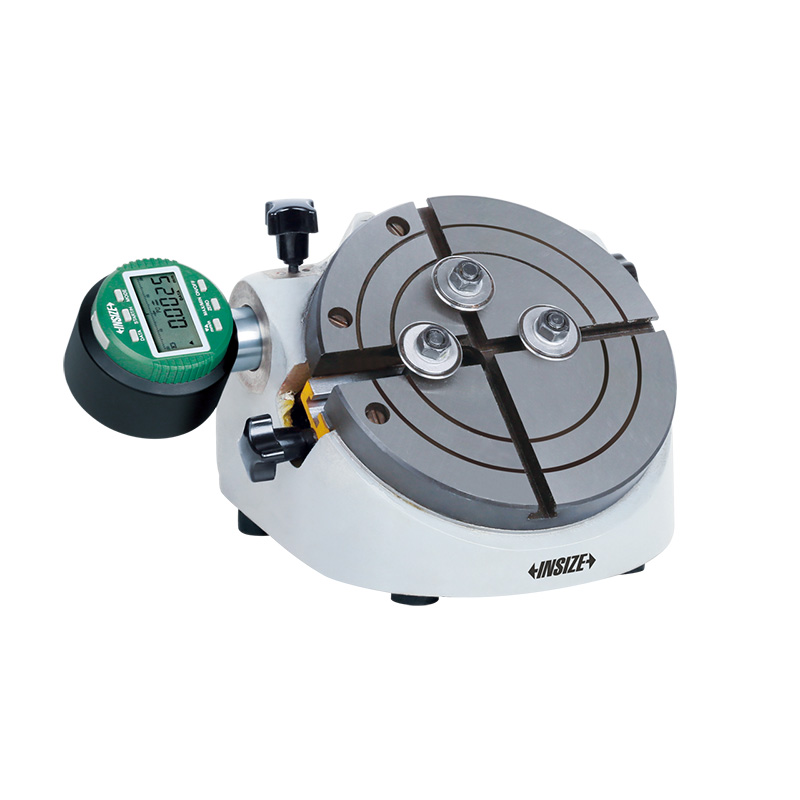

Internal And External Diameter Comparison Instrument
Code: 6843
符合企业标准

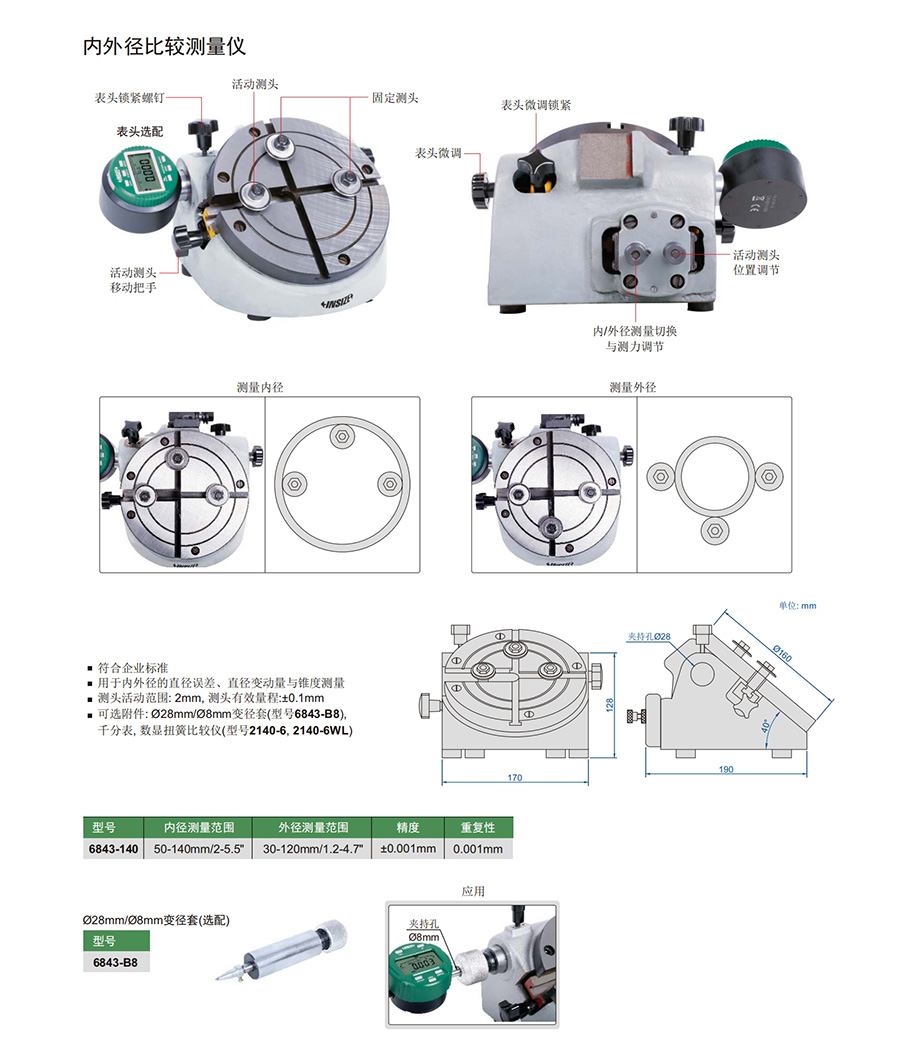

用于内外径的直径误差、直径变动量与锥度测量
测头活动范围: 2mm, 测头有效量程: ±0.1mm
可选附件: ∅28mm/∅8mm变径套(型号6843-B8), 千分表, 数显扭簧比较仪(型号2140-6, 2140-6WL)
| Code | Accuracy | Range of external diameter | Range of internal diameter | Repeatability |
|---|---|---|---|---|
| 6843-140 | ±0.001mm | 30-120mm/1.2-4.7" | 50-140mm/2-5.5" | 0.001mm |
