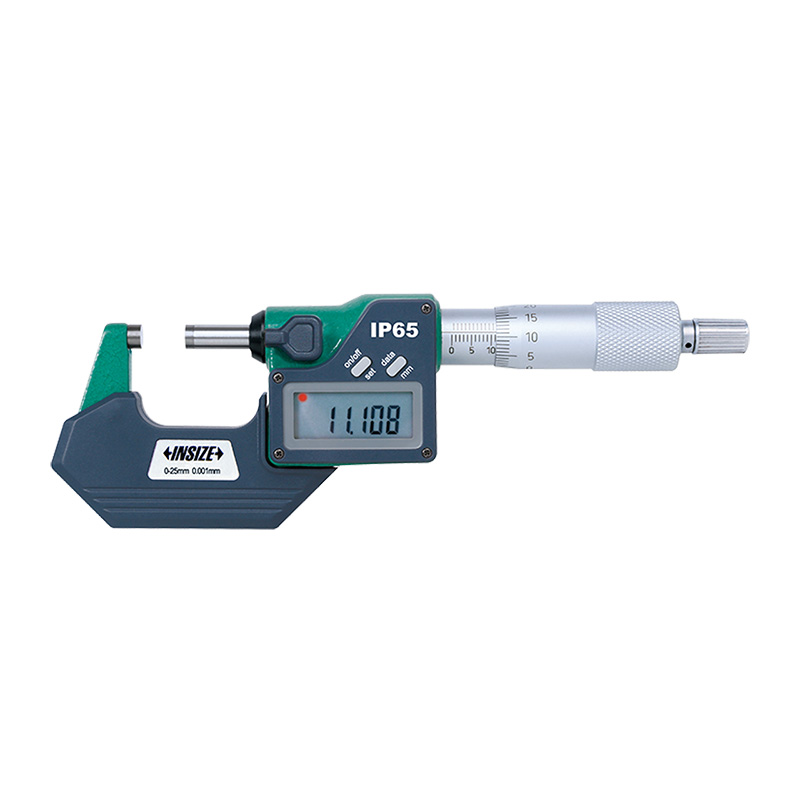

Waterproof Digital Outside Micrometers (With Data Output)
Code: 3101
符合JJG外径千分尺国家计量检定规程
防尘/防水等级: IP65
按键: 开/关, 初始值设置,
带球测头
自动关机
硬质合金测量面, 棘轮测力
配标准杆(除0-25mm/0-1"外)
可选附件: 数据传输线

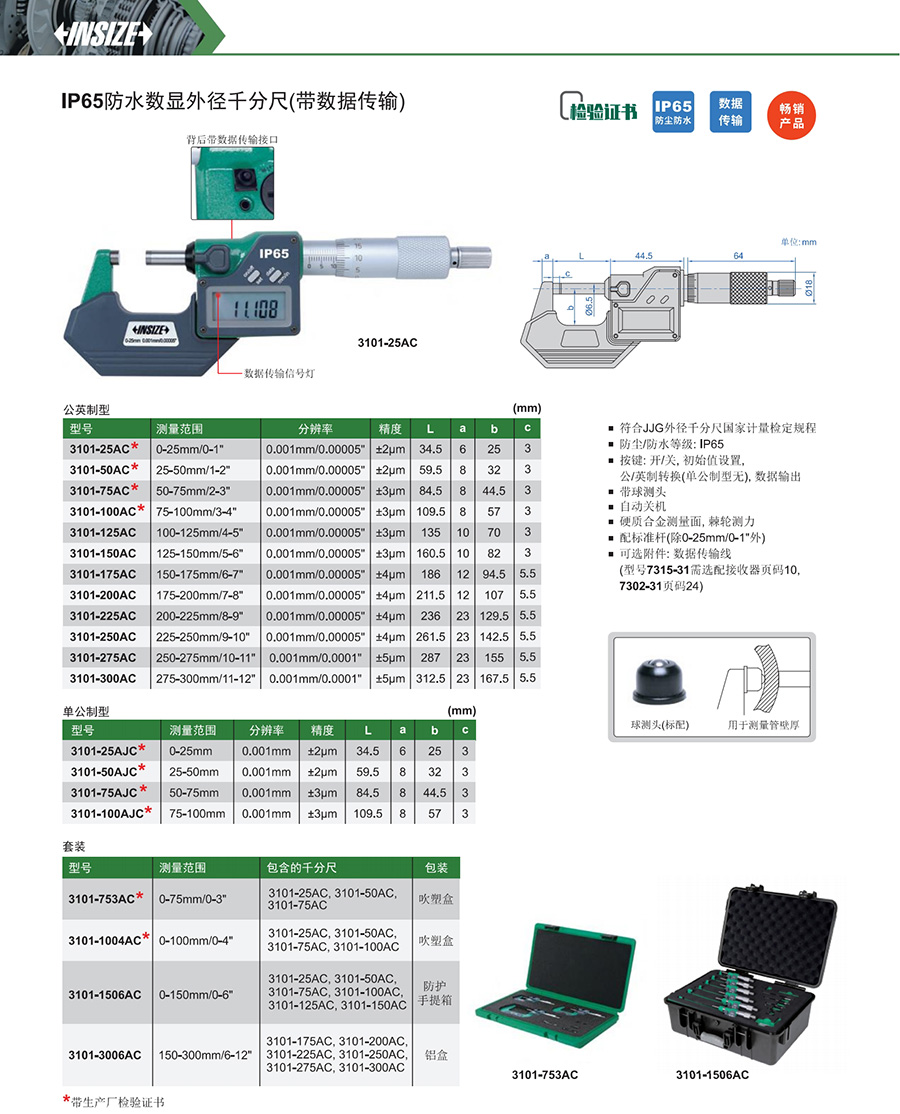

| Code | Range | Accuracy | Resolution | Type |
|---|---|---|---|---|
| 3101-25A | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-50A | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-75A | 50-75mm/2-3" | ±3μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-100A | 75-100mm/3-4" | ±3μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-125A | 100-125mm/4-5" | ±3μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-150A | 125-150mm/5-6" | ±3μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-175A | 150-175mm/6-7" | ±4μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-200A | 175-200mm/7-8" | ±4μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-225A | 200-225mm/8-9" | ±4μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-250A | 225-250mm/9-10" | ±4μm | 0.001mm/0.00005" | Metric/Inch type (ratchet stop) |
| 3101-275A | 250-275mm/10-11" | ±5μm | 0.001mm/0.0001" | Metric/Inch type (ratchet stop) |
| 3101-300A | 275-300mm/11-12" | ±5μm | 0.001mm/0.0001" | Metric/Inch type (ratchet stop) |
| 3101-25FA | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Metric/Inch type (friction thimble) |
| 3101-25AJ | 0-25mm | ±2μm | 0.001mm | Metric/Inch type (friction thimble) |
| 3101-50AJ | 25-50mm | ±2μm | 0.001mm | Metric type (ratchet stop) |
| 3101-75AJ | 50-75mm | ±3μm | 0.001mm | Metric type (ratchet stop) |
| 3101-100AJ | 75-100mm | ±3μm | 0.001mm | Metric type (ratchet stop) |

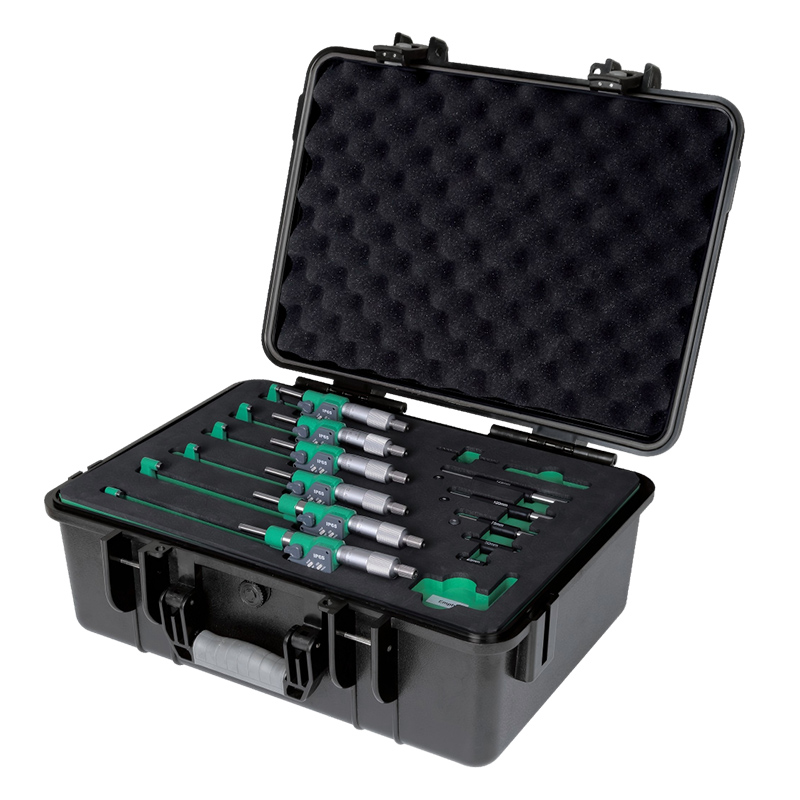

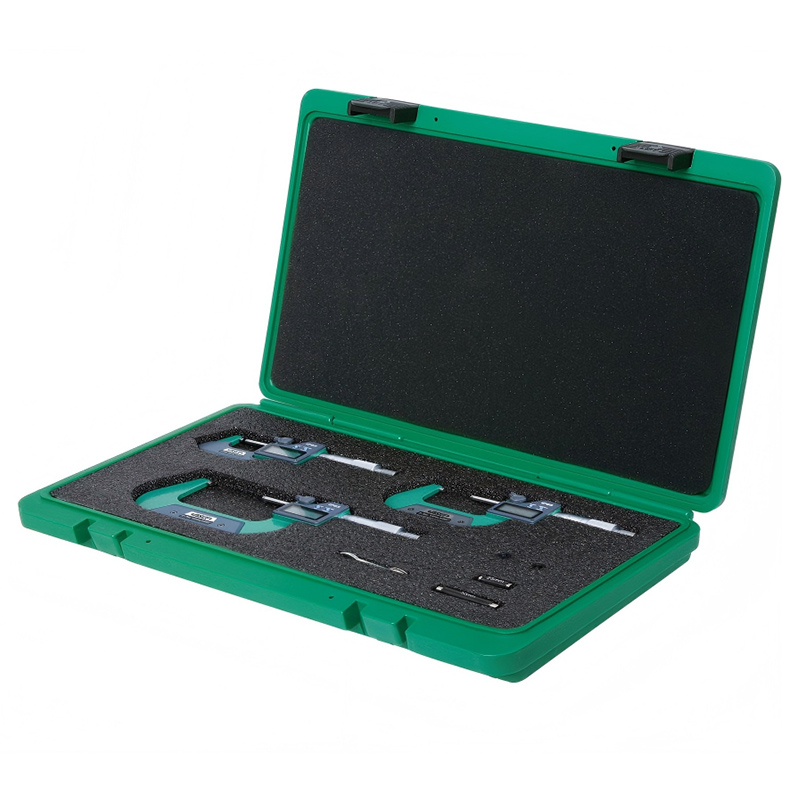

| 3101-753A (Set) | 0-75mm/0-3" | ±2~±3μm | 0.001mm/0.00005" | ratchet stop type |
| 3101-1004A (Set) | 0-100mm/0-4" | ±2~±3μm | 0.001mm/0.00005" | ratchet stop type |
| 3101-1506A (Set) | 0-150mm/0-6" | ±2~±3μm | 0.001mm/0.00005" | ratchet stop type |
| 3101-3006A (Set) | 150-300mm/6-12" | ±4μm~±5μm | 0.001mm/0.00005", 0.001mm/0.0001" | ratchet stop type |
