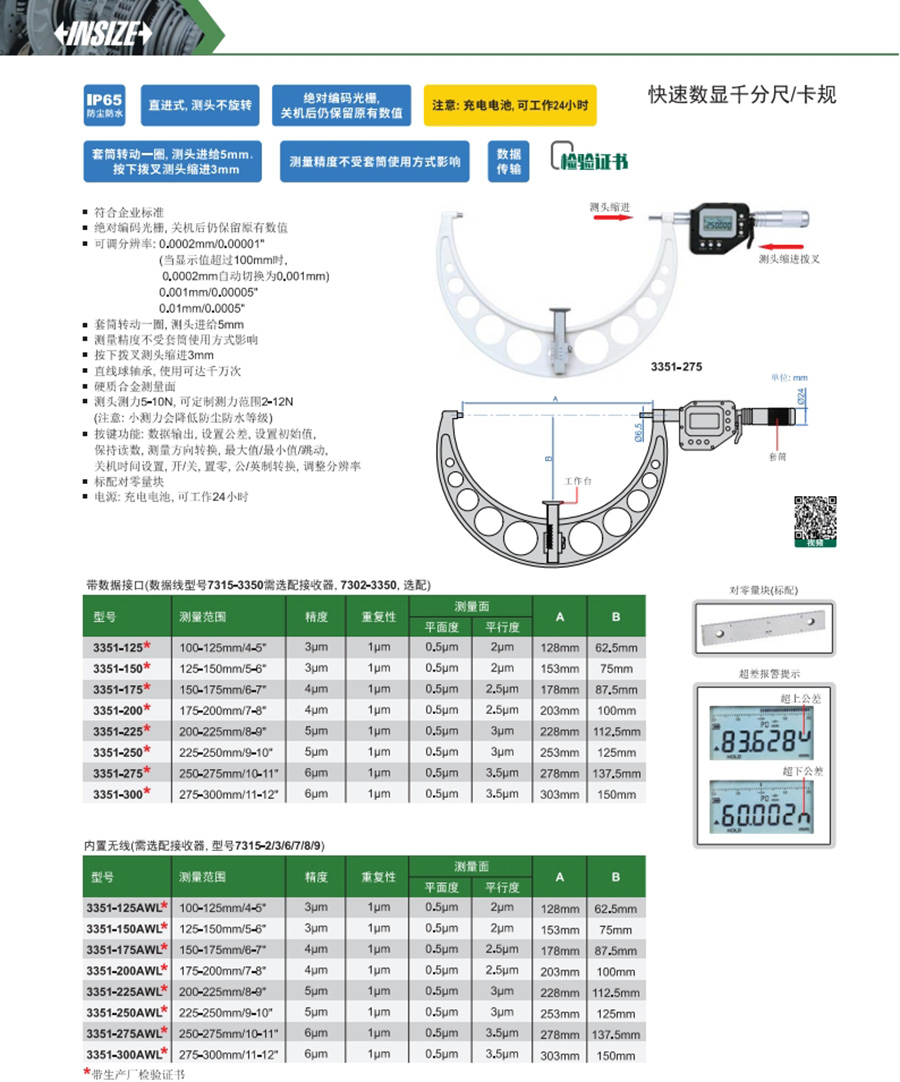

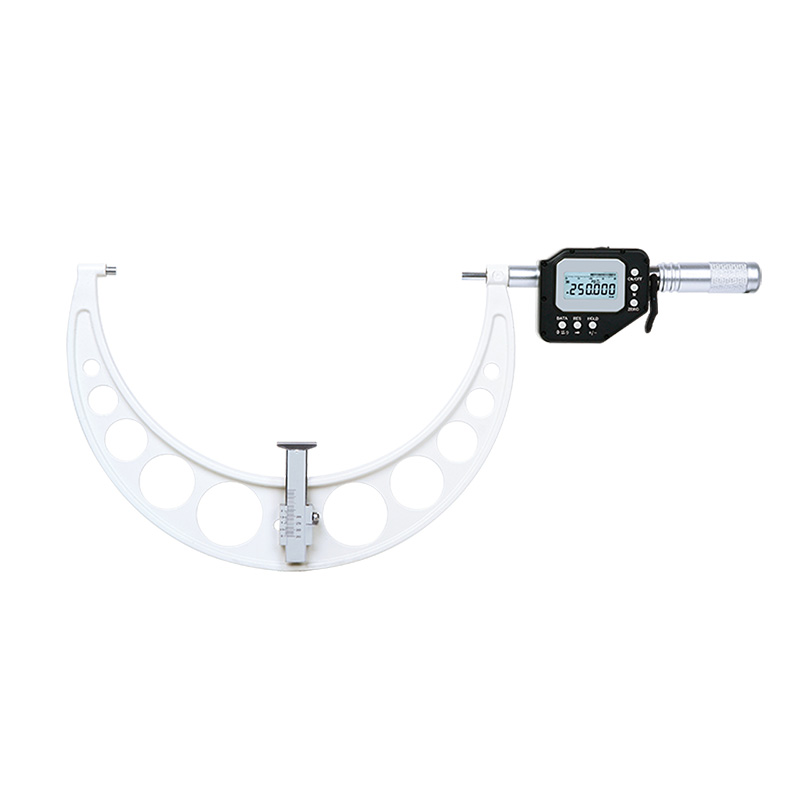

快速数显千分尺/卡规
Code: 3351
符合企业标准
绝对编码光栅, 关机后仍保留原有数值
可调分辨率: 0.0002mm/0.00001"
套筒转动一圈, 测头进给5mm
测量精度不受套筒使用方式影响
按下拨叉测头缩进3mm
直线球轴承, 使用可达千万次
硬质合金测量面
测头测力5-10N, 可定制测力范围2-12N (注意: 小测力会降低防尘防水等级)
按键功能: 数据输出, 设置公差, 设置初始值,
标配对零量块
电源: 充电电池, 可工作24小时
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3351-125 | 100-125mm/4-5" | 3μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-150 | 125-150mm/5-6" | 3μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-175 | 150-175mm/6-7" | 4μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-200 | 175-200mm/7-8" | 4μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-225 | 200-225mm/8-9" | 5μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-250 | 225-250mm/9-10" | 5μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-275 | 250-275mm/10-11" | 6μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-300 | 275-300mm/11-12" | 6μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | with data interface |
| 3351-125AWL | 100-125mm/4-5" | 3μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-150AWL | 125-150mm/5-6" | 3μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-175AWL | 150-175mm/6-7" | 4μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-200AWL | 175-200mm/7-8" | 4μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-225AWL | 200-225mm/8-9" | 5μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-250AWL | 225-250mm/9-10" | 5μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-275AWL | 250-275mm/10-11" | 6μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
| 3351-300AWL | 275-300mm/11-12" | 6μm | 0.0002mm/0.00001", 0.001mm/0.00005", 0.01mm/0.0005" | built-in wireless |
