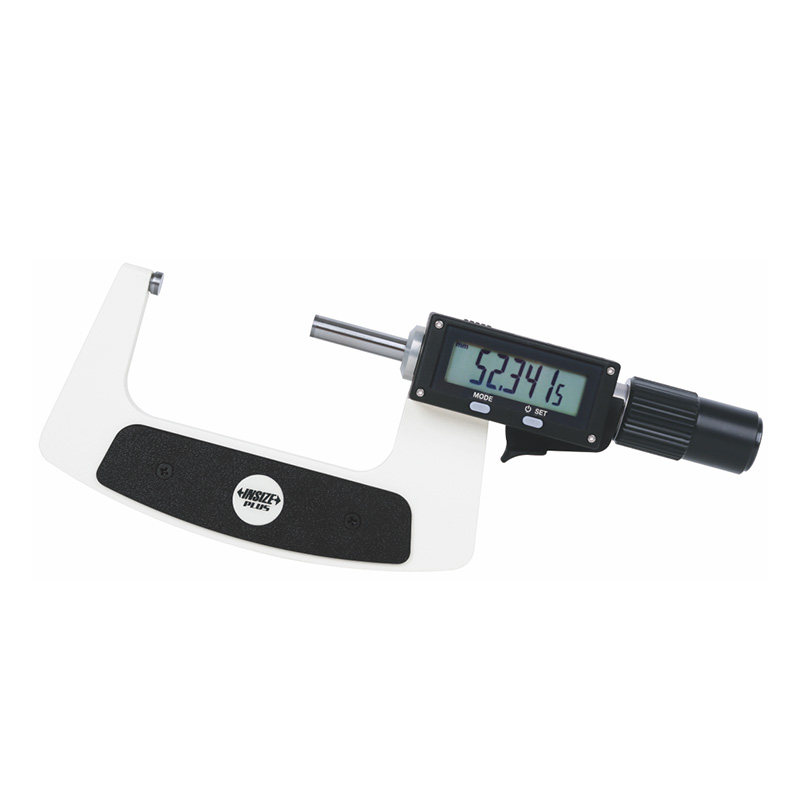

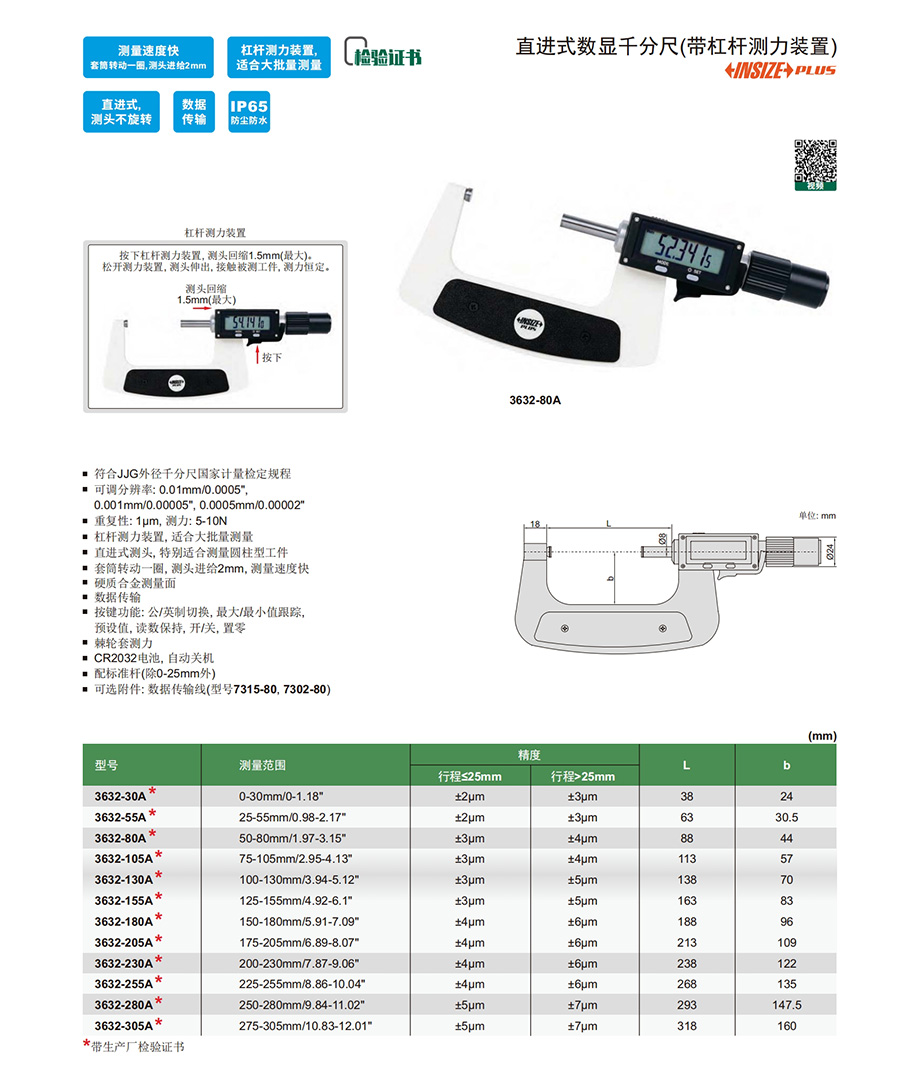

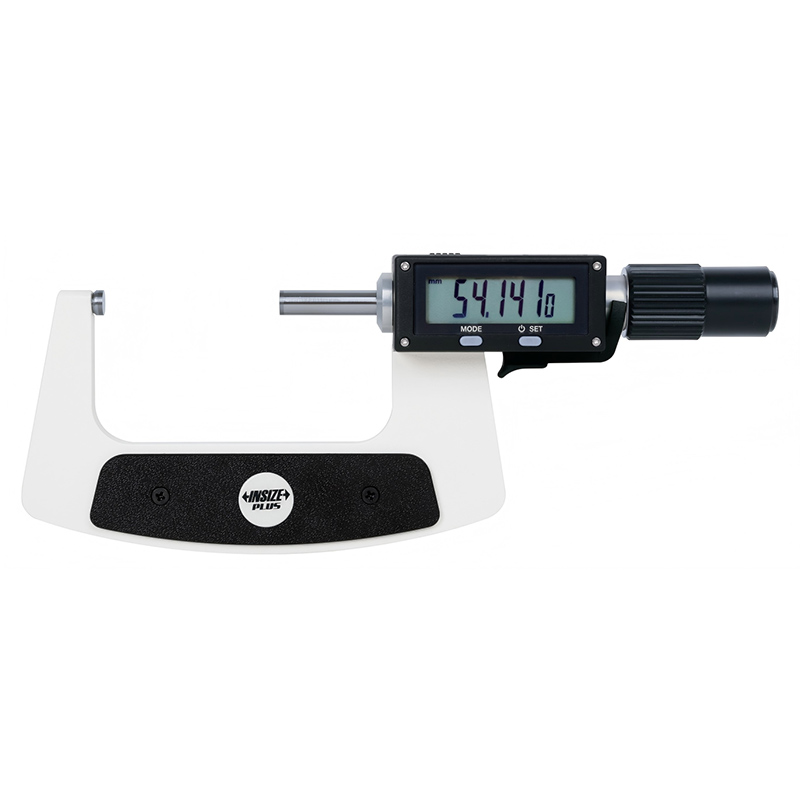

Non-Rotating Spindle Digital Micrometers
Code: 3632
符合JJG外径千分尺国家计量检定规程
可调分辨率: 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002"
重复性: 1μm, 测力: 5-10N
杠杆测力装置,适合大批量测量
直进式测头, 特别适合测量圆柱型工件
套筒转动一圈, 测头进给2mm, 测量速度快
硬质合金测量面
数据传输
按键功能: 公/英制切换, 最大/最小值跟踪, 预设值, 读数保持, 开/关, 置零
棘轮套测力
CR2032电池, 自动关机
配标准杆(除0-25mm外)
可选附件: 数据传输线(型号7315-80, 7302-80)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3632-30A | 0-30mm/0-1.18" | stroke≤25mm:±2μm, stroke>25mm:±3μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-55A | 25-55mm/0.98-2.17" | stroke≤25mm:±2μm, stroke>25mm:±3μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-80A | 50-80mm/1.97-3.15" | stroke≤25mm:±3μm, stroke>25mm:±4μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-105A | 75-105mm/2.95-4.13" | stroke≤25mm:±3μm, stroke>25mm:±4μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-130A | 100-130mm/3.94-5.12" | stroke≤25mm:±3μm, stroke>25mm:±5μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-155A | 125-155mm/4.92-6.1" | stroke≤25mm:±3μm, stroke>25mm:±5μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-180A | 150-180mm/5.91-7.09" | stroke≤25mm:±4μm, stroke>25mm:±6μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-205A | 175-205mm/6.89-8.07" | stroke≤25mm:±4μm, stroke>25mm:±6μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-230A | 200-230mm/7.87-9.06" | stroke≤25mm:±4μm, stroke>25mm:±6μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-255A | 225-255mm/8.86-10.04" | stroke≤25mm:±4μm, stroke>25mm:±6μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-280A | 250-280mm/9.84-11.02" | stroke≤25mm:±5μm, stroke>25mm:±7μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
| 3632-305A | 275-305mm/10.83-12.01" | stroke≤25mm:±5μm, stroke>25mm:±7μm | 0.01mm/0.0005", 0.001mm/0.00005", 0.0005mm/0.00002" |
