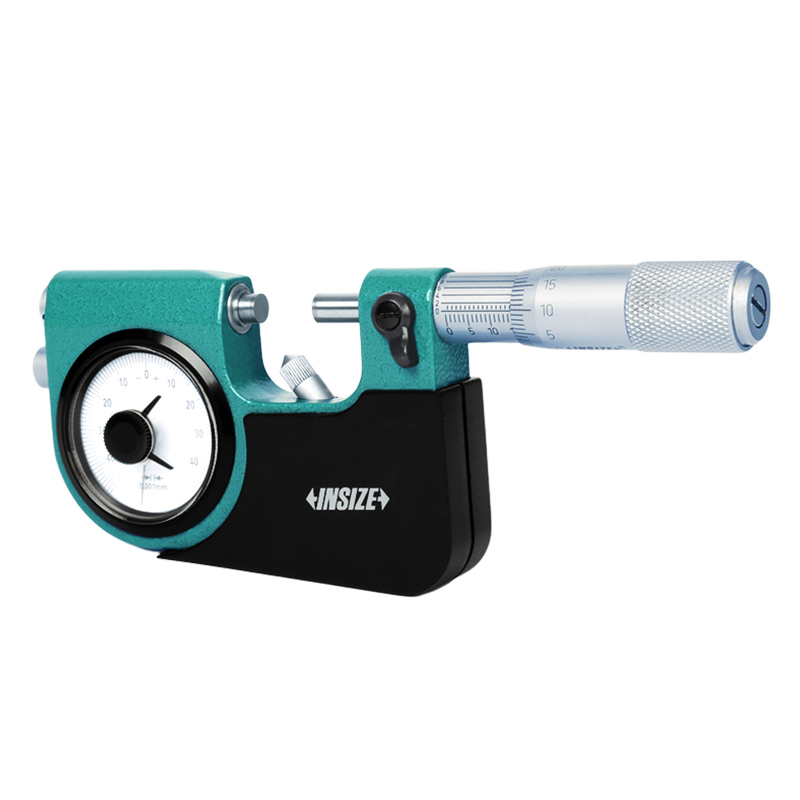

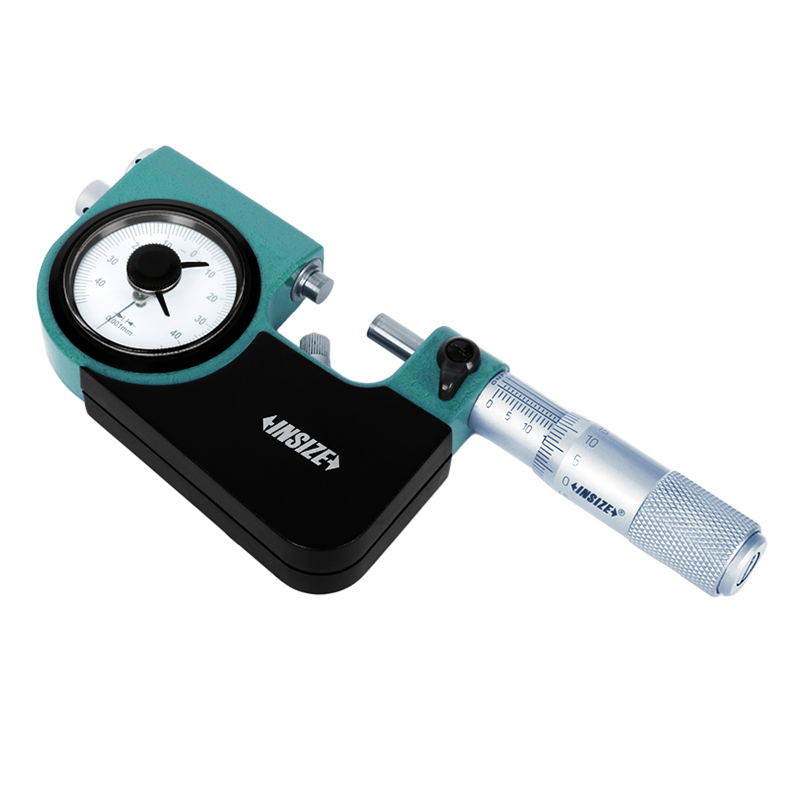

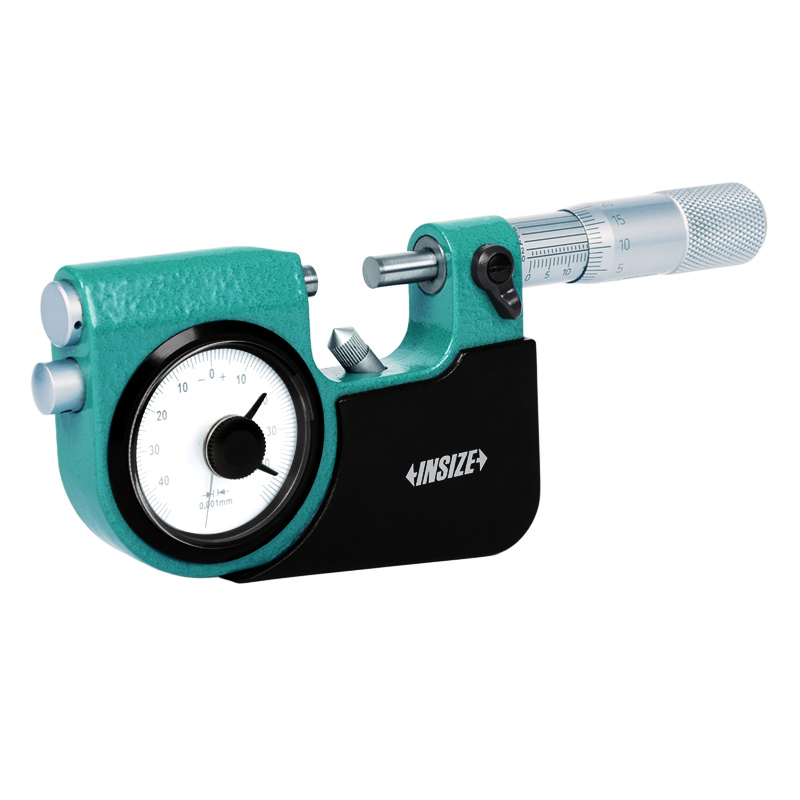

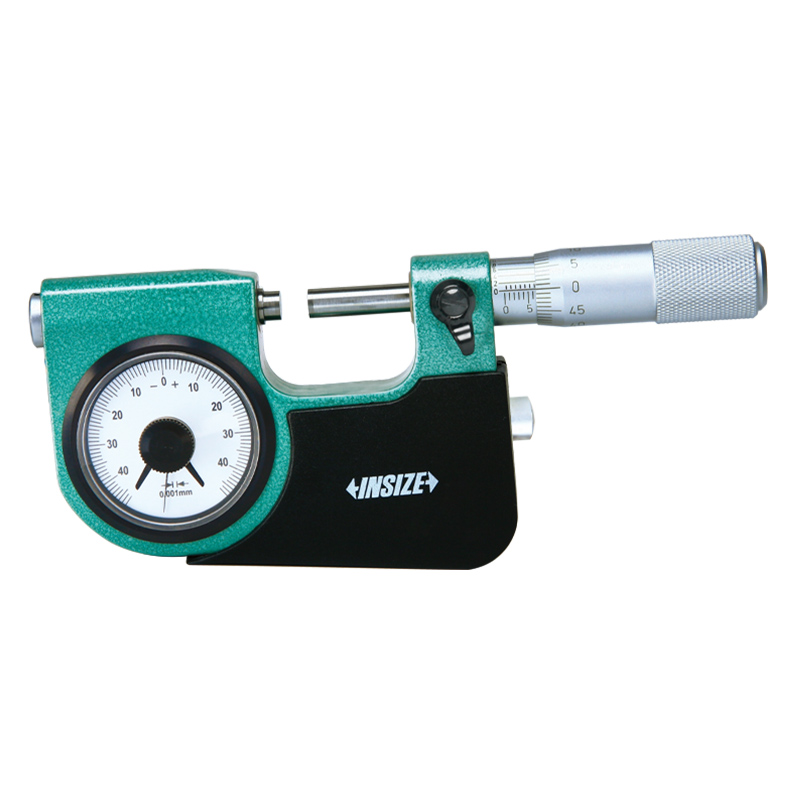

Indicating Micrometers
Code: 3332

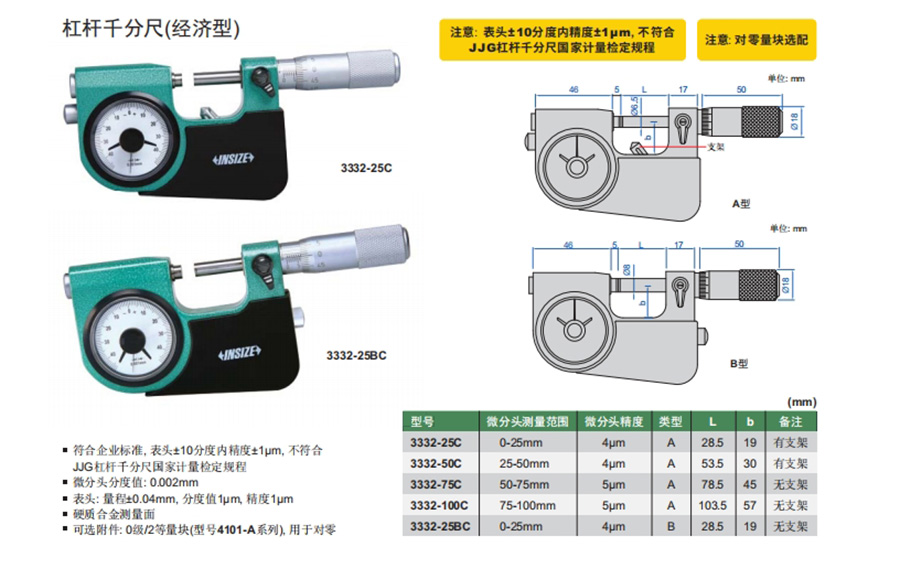

符合企业标准, 表头±10分度内精度±1μm, 不符合JJG杠杆千分尺国家计量检定规程
微分头分度值: 0.002mm
表头: 量程±0.04mm, 分度值1μm, 精度1μm
硬质合金测量面
可选附件: 0级/2等量块(型号4101-A系列), 用于对零
| Code | Range | Type | Graduation | Dial indicator range | Dial indicator graduation |
|---|---|---|---|---|---|
| 3332-25 | 0-25mm | A | 0.002mm | ±0.04mm | 0.001mm |
| 3332-50 | 25-50mm | A | 0.002mm | ±0.04mm | 0.001mm |
| 3332-75 | 50-75mm | A | 0.002mm | ±0.04mm | 0.001mm |
| 3332-100 | 75-100mm | A | 0.002mm | ±0.04mm | 0.001mm |
| 3332-25B | 0-25mm | B | 0.002mm | ±0.04mm | 0.001mm |
