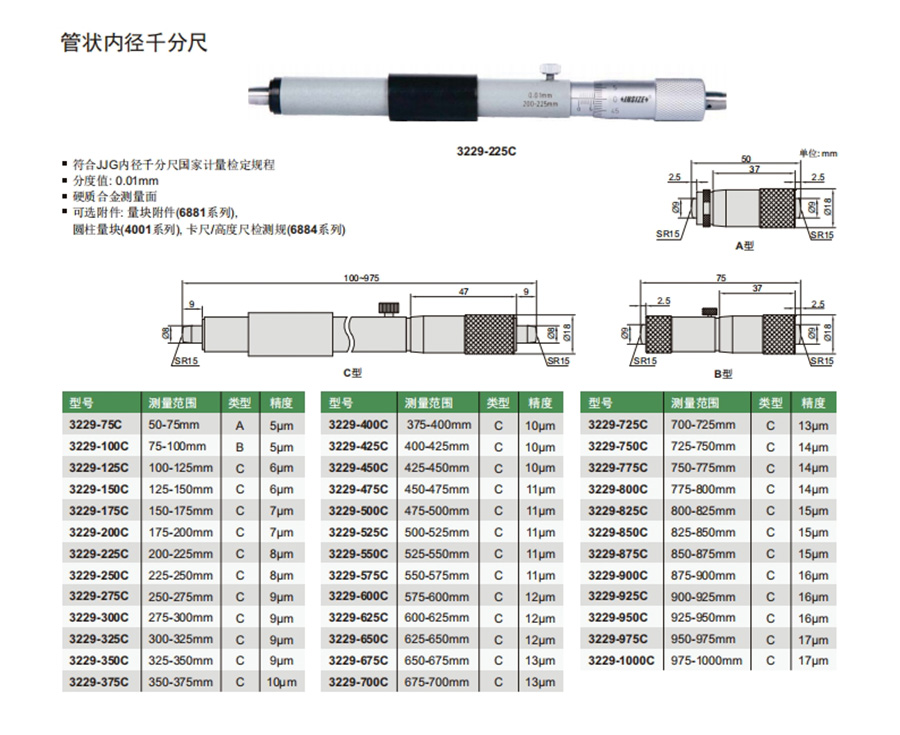

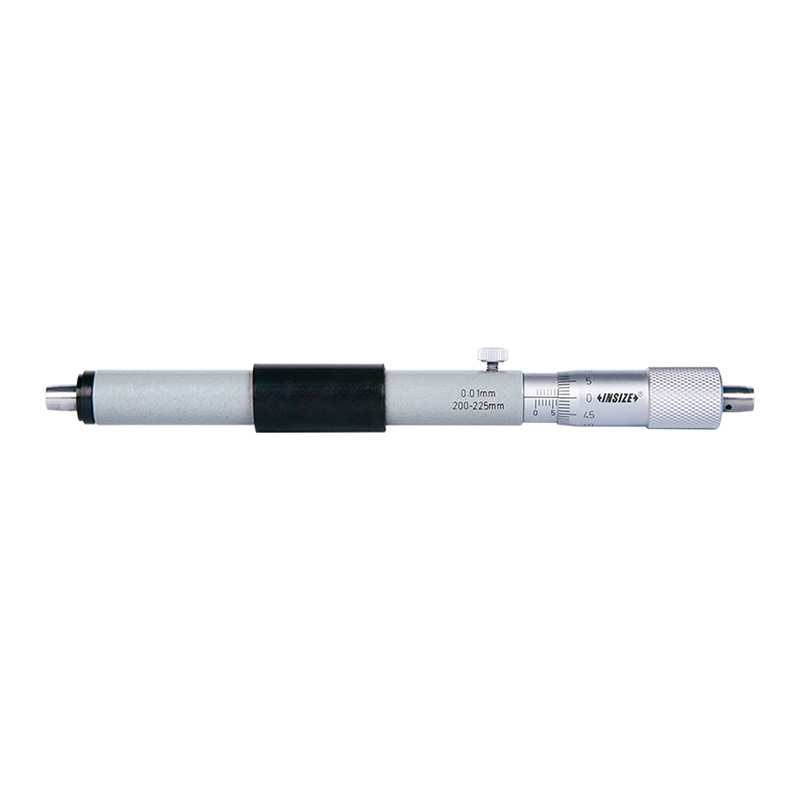

管状内径千分尺
型号: 3229
符合JJG内径千分尺国家计量检定规程
分度值: 0.01mm
硬质合金测量面
| 型号 | 测量范围 | 分度值 |
|---|---|---|
| 3229-75C | 50-75mm | 0.01mm |
| 3229-100C | 75-100mm | 0.01mm |
| 3229-125C | 100-125mm | 0.01mm |
| 3229-150C | 125-150mm | 0.01mm |
| 3229-175C | 150-175mm | 0.01mm |
| 3229-200C | 175-200mm | 0.01mm |
| 3229-225C | 200-225mm | 0.01mm |
| 3229-250C | 225-250mm | 0.01mm |
| 3229-275C | 250-275mm | 0.01mm |
| 3229-300C | 275-300mm | 0.01mm |
| 3229-325C | 300-325mm | 0.01mm |
| 3229-350C | 325-350mm | 0.01mm |
| 3229-375C | 350-375mm | 0.01mm |
| 3229-400C | 375-400mm | 0.01mm |
| 3229-425C | 400-425mm | 0.01mm |
| 3229-450C | 425-450mm | 0.01mm |
| 3229-475C | 450-475mm | 0.01mm |
| 3229-500C | 475-500mm | 0.01mm |
| 3229-525C | 500-525mm | 0.01mm |
| 3229-550C | 525-550mm | 0.01mm |
| 3229-575C | 550-575mm | 0.01mm |
| 3229-600C | 575-600mm | 0.01mm |
| 3229-625C | 600-625mm | 0.01mm |
| 3229-650C | 625-650mm | 0.01mm |
| 3229-675C | 650-675mm | 0.01mm |
| 3229-700C | 675-700mm | 0.01mm |
| 3229-725C | 700-725mm | 0.01mm |
| 3229-750C | 725-750mm | 0.01mm |
| 3229-775C | 750-775mm | 0.01mm |
| 3229-800C | 775-800mm | 0.01mm |
| 3229-825C | 800-825mm | 0.01mm |
| 3229-850C | 825-850mm | 0.01mm |
| 3229-875C | 850-875mm | 0.01mm |
| 3229-900C | 875-900mm | 0.01mm |
| 3229-925C | 900-925mm | 0.01mm |
| 3229-950C | 925-950mm | 0.01mm |
| 3229-975C | 950-975mm | 0.01mm |
| 3229-1000C | 975-1000mm | 0.01mm |
