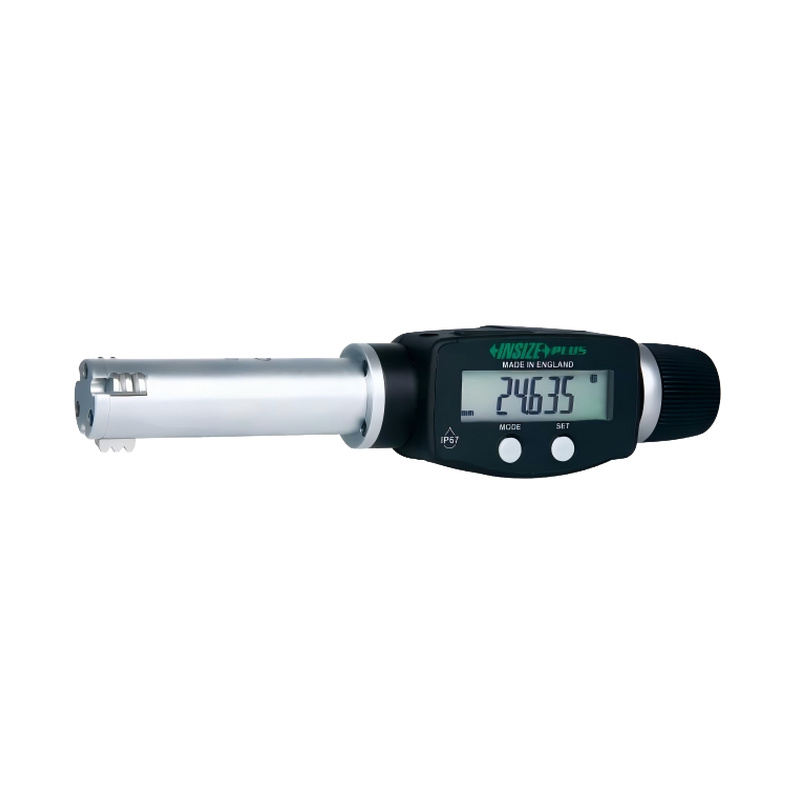

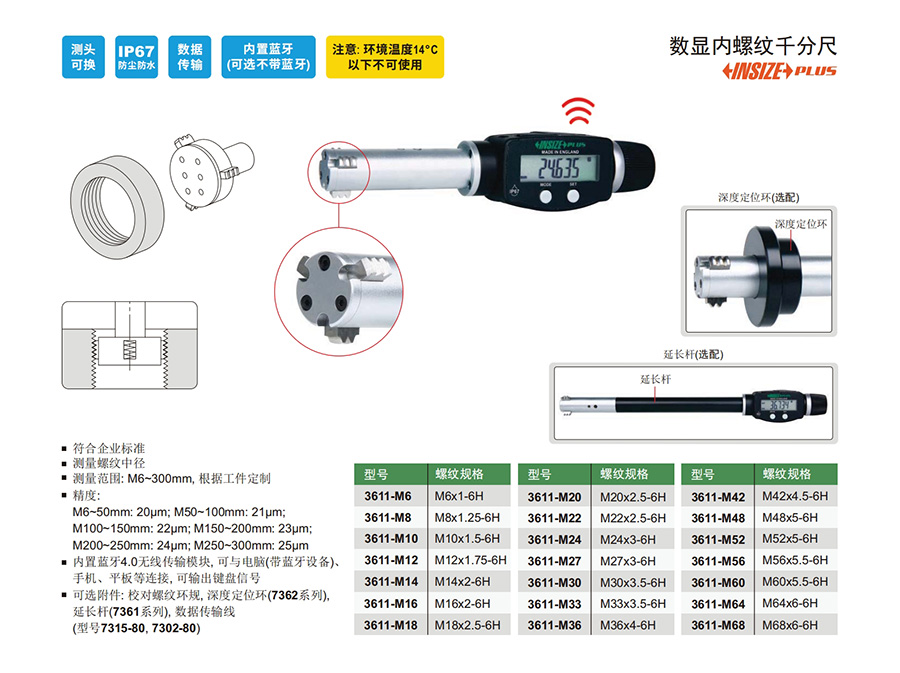

数显内螺纹千分尺
型号: 3611
符合企业标准
测量螺纹中径
测量范围: M6~300mm, 根据工件定制
精度: M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm
内置蓝牙4.0无线传输模块, 可与电脑(带蓝牙设备)、手机、平板等连接, 可输出键盘信号
| 型号 | 测量范围 | 精度 | 螺纹规格 |
|---|---|---|---|
| 3611-M6 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M6x1-6H |
| 3611-M8 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M8x1.25-6H |
| 3611-M10 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M10x1.5-6H |
| 3611-M12 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M12x1.75-6H |
| 3611-M14 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M14x2-6H |
| 3611-M16 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M16x2-6H |
| 3611-M18 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M18x2.5-6H |
| 3611-M20 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M20x2.5-6H |
| 3611-M22 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M22x2.5-6H |
| 3611-M24 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M24x3-6H |
| 3611-M27 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M27x3-6H |
| 3611-M30 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M30x3.5-6H |
| 3611-M33 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M33x3.5-6H |
| 3611-M36 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M36x4-6H |
| 3611-M42 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M42x4.5-6H |
| 3611-M48 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M48x5-6H |
| 3611-M52 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M52x5-6H |
| 3611-M56 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M56x5.5-6H |
| 3611-M60 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M60x5.5-6H |
| 3611-M64 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M64x6-6H |
| 3611-M68 | M6~300mm, 根据工件定制 | M6~50mm: 20µm; M50~100mm: 21µm; M100~150mm: 22µm; M150~200mm: 23µm; M200~250mm: 24µm; M250~300mm: 25µm | M68x6-6H |
