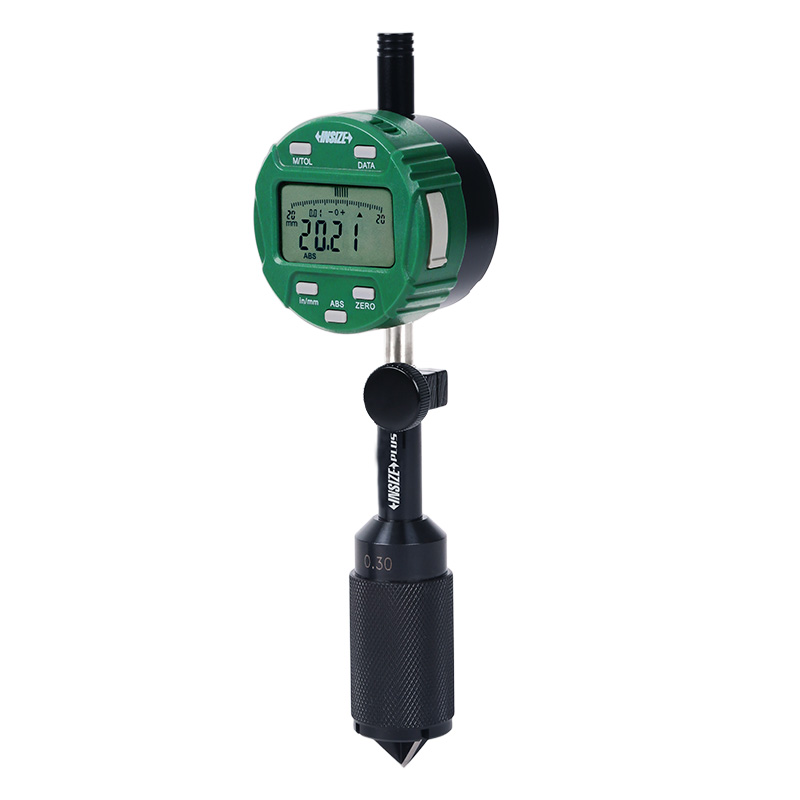

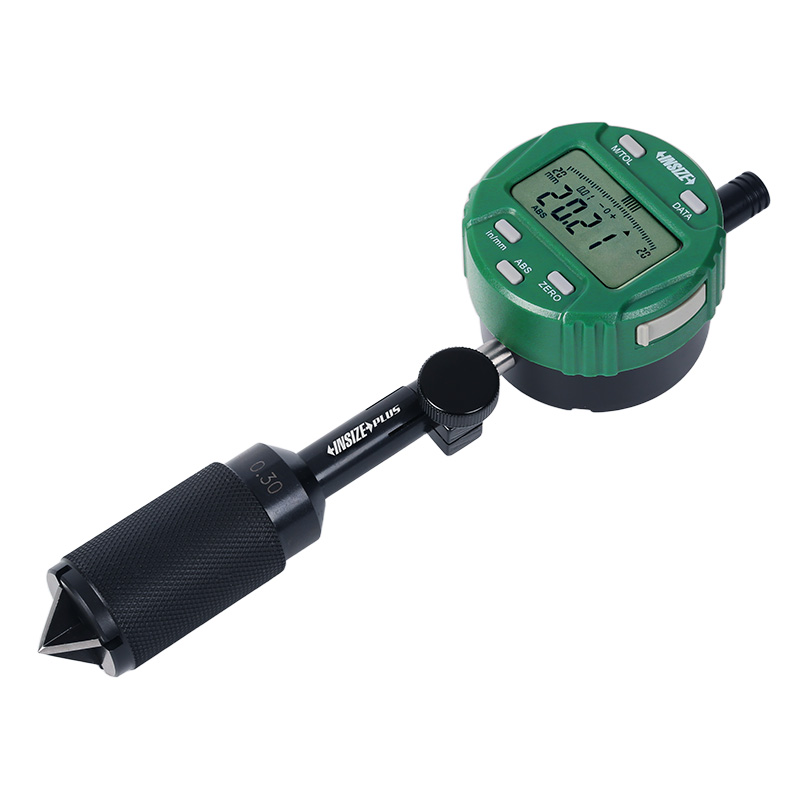

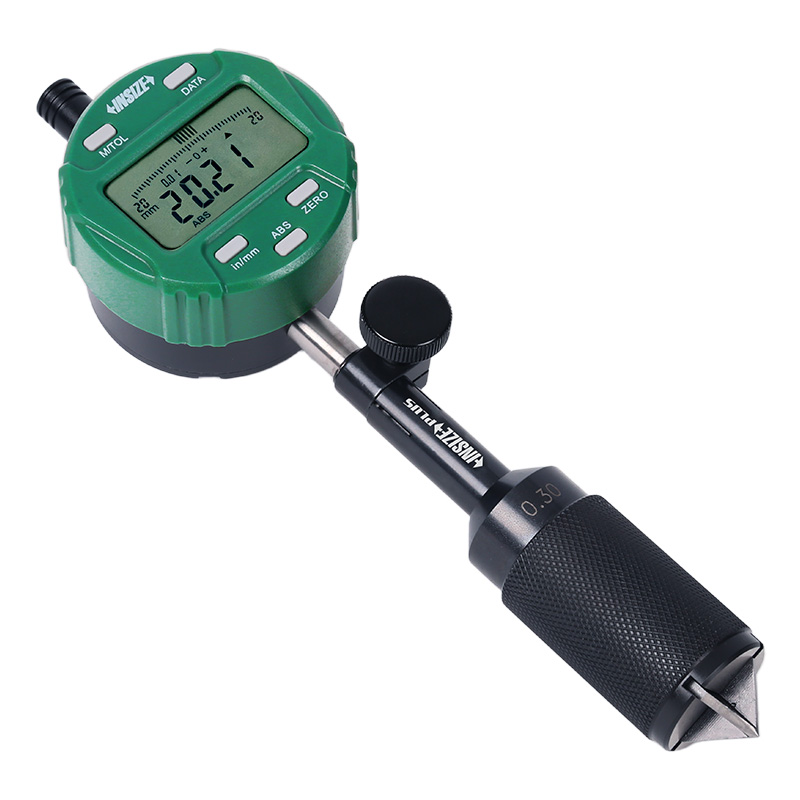

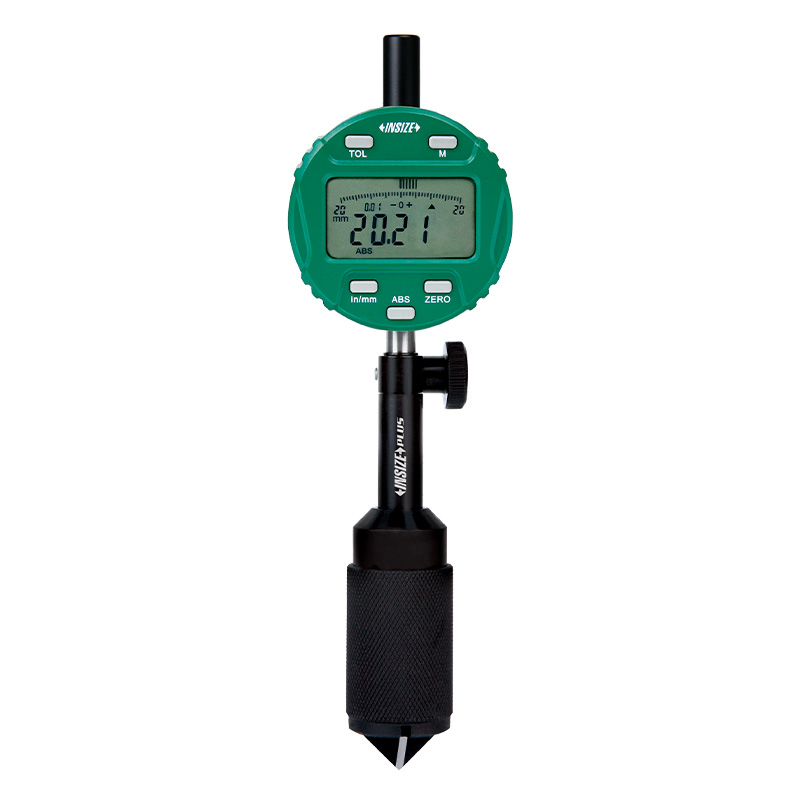

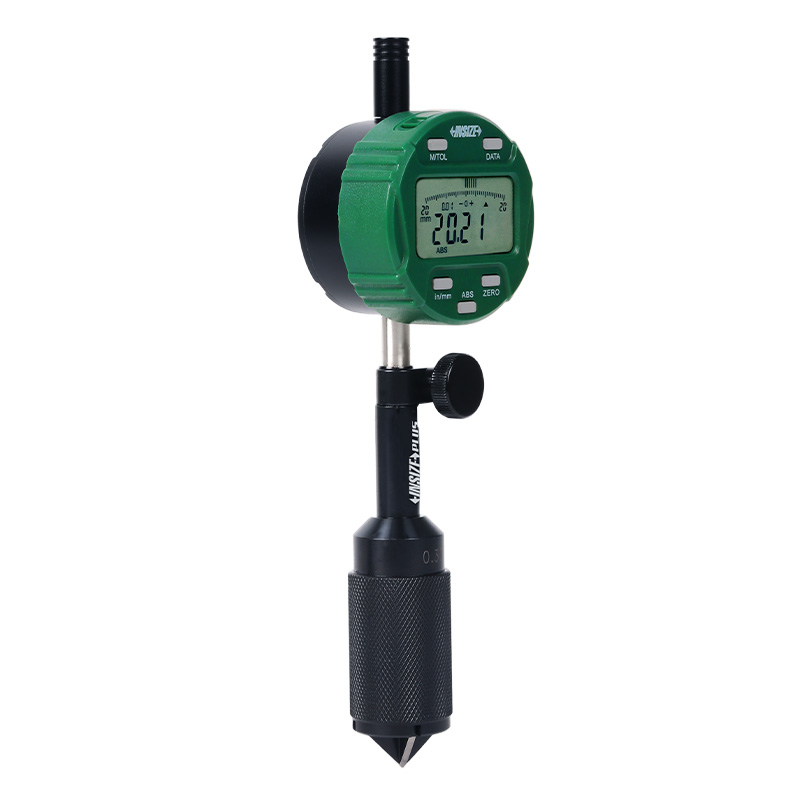

数显倒角孔径规
型号: 2942
符合企业标准
测量倒角孔或锥孔的口端直径
分辨率: 0.01mm/0.0005"
2942-20, 2942-203标配5mm校对规

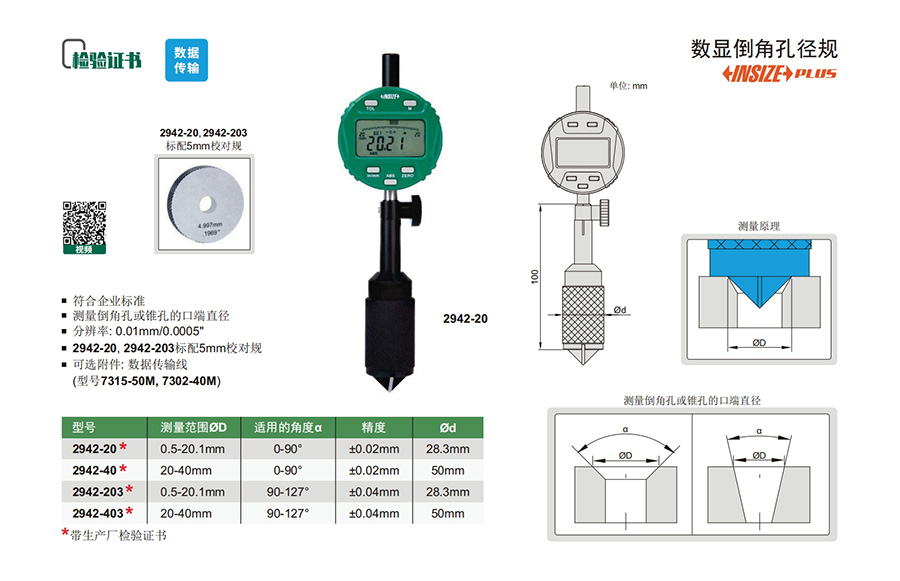

| 型号 | 测量范围 | 精度 | 倒角角度 |
|---|---|---|---|
| 2942-20 | Ø0.5-20.1mm | ±0.02mm | 0-90° |
| 2942-40 | Ø20-40mm | ±0.02mm | 0-90° |
| 2942-203 | Ø0.5-20.1mm | ±0.04mm | 90-127° |
| 2942-403 | Ø20-40mm | ±0.04mm | 90-127° |
-
FAQ
Frequently Asked Questions
Are you checking Chamfer Angle or Chamfer length?
Measuring end diameter of chamfer.
The device does not measure the chamfer angle?
Yes. The instrument is not capable of measuring the chamfer angle itself. It is specifically designed to measure the diameter at the chamfer opening. For different chamfer angles, we can provide customized measuring heads to ensure accurate measurement of the chamfer opening diameter.
Can one measuring head be used for different chamfer angles?
Different chamfer angles require different measuring heads. We can provide customized measuring heads to match your chamfer angle and ensure accurate measurement.
Can this gauge measure tapered holes as well as chamfered holes?
Yes. The gauge is suitable for measuring the end diameter of both chamfered holes and tapered holes.
