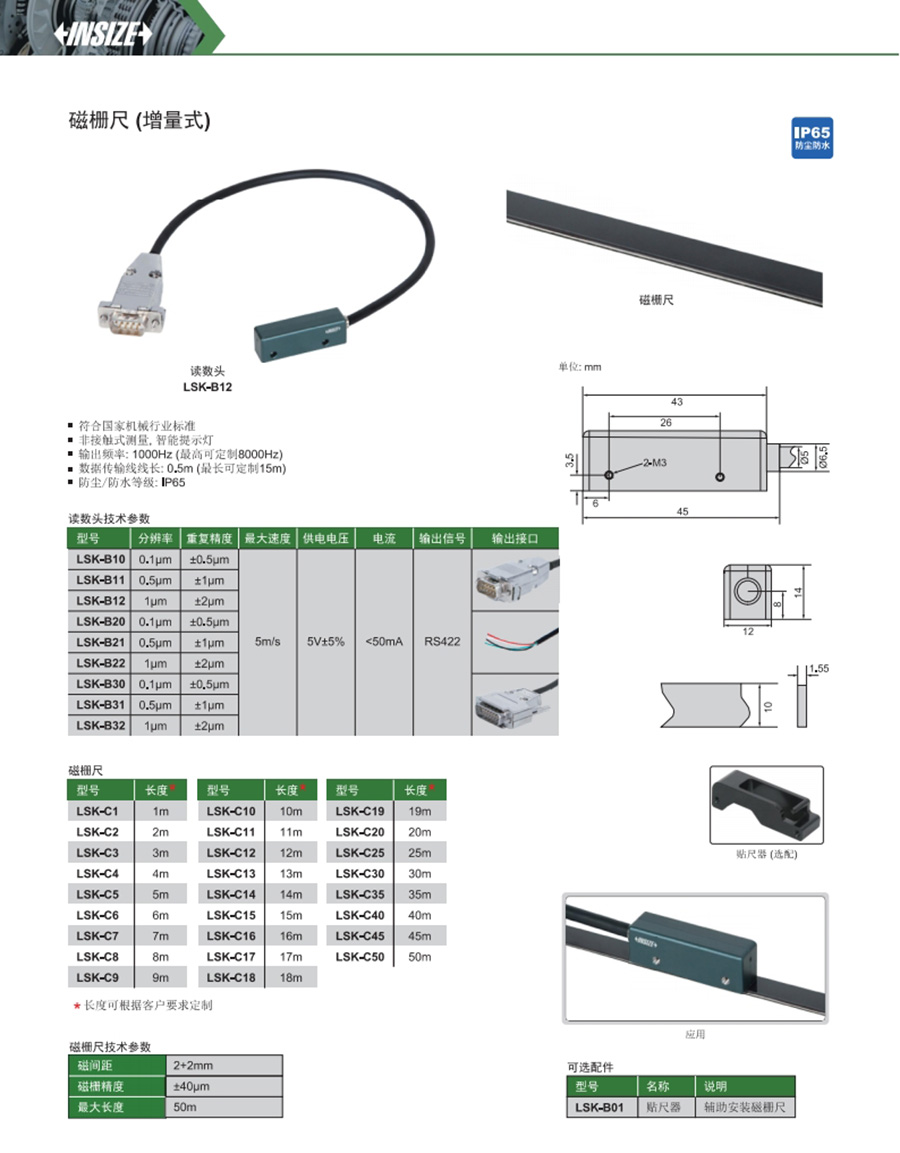

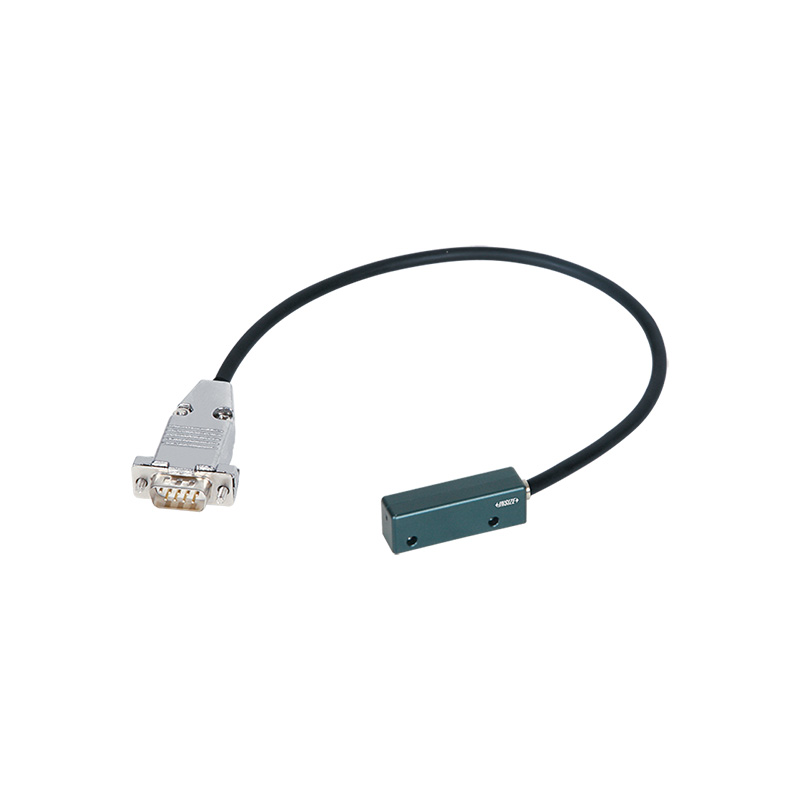

磁栅尺 (增量式)
Code: LSK-B
符合国家机械行业标准
非接触式测量, 智能提示灯
输出频率: 1000Hz (最高可定制8000Hz)
数据传输线线长: 0.5m (最长可定制15m)
防尘/防水等级: IP65
| Code | Resolution | Type | Repeatability | Output interface |
|---|---|---|---|---|
| LSK-B10 | 0.1μm | magnetic linear | ±0.5μm | DB9 |
| LSK-B11 | 0.5μm | magnetic linear | ±1μm | DB9 |
| LSK-B12 | 1μm | magnetic linear | ±2μm | DB9 |
| LSK-B20 | 0.1μm | magnetic linear | ±0.5μm | direct lead-out |
| LSK-B21 | 0.5μm | magnetic linear | ±1μm | direct lead-out |
| LSK-B22 | 1μm | magnetic linear | ±2μm | direct lead-out |
| LSK-B30 | 0.1μm | magnetic linear | ±0.5μm | DB15 |
| LSK-B31 | 0.5μm | magnetic linear | ±1μm | DB15 |
| LSK-B32 | 1μm | magnetic linear | ±2μm | DB15 |
