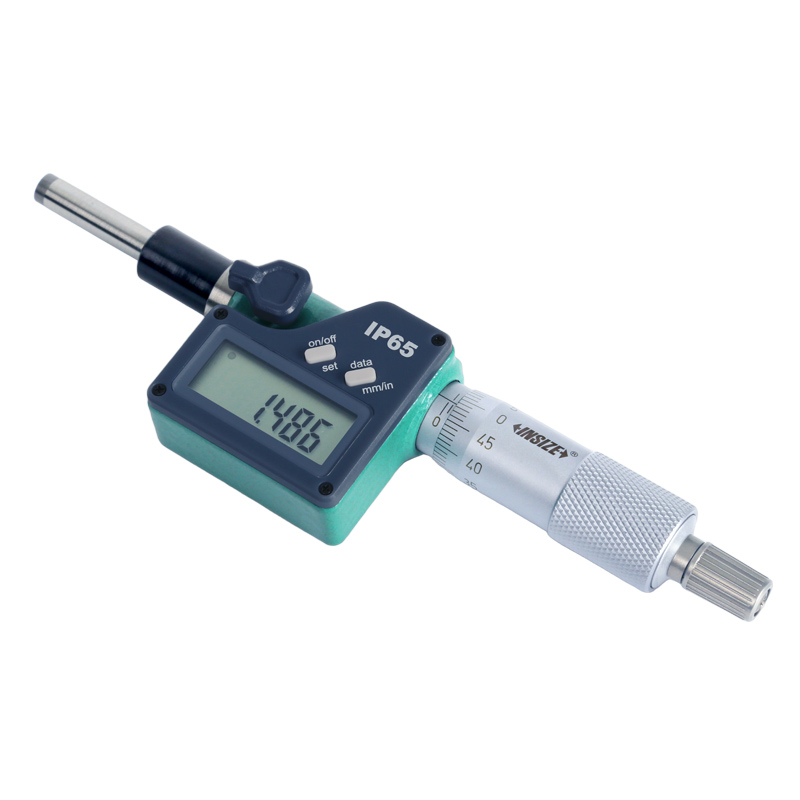

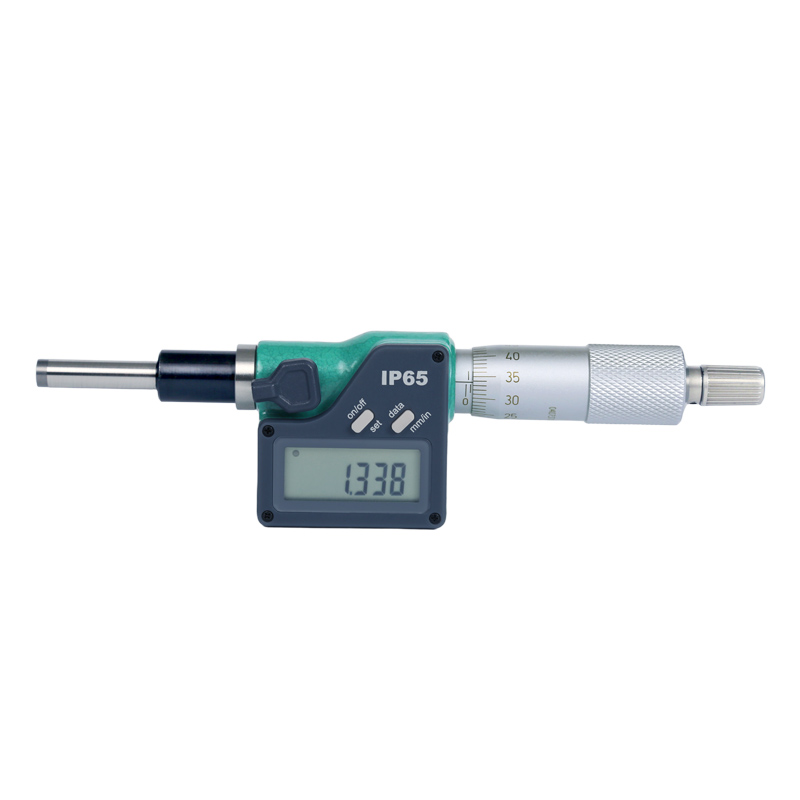

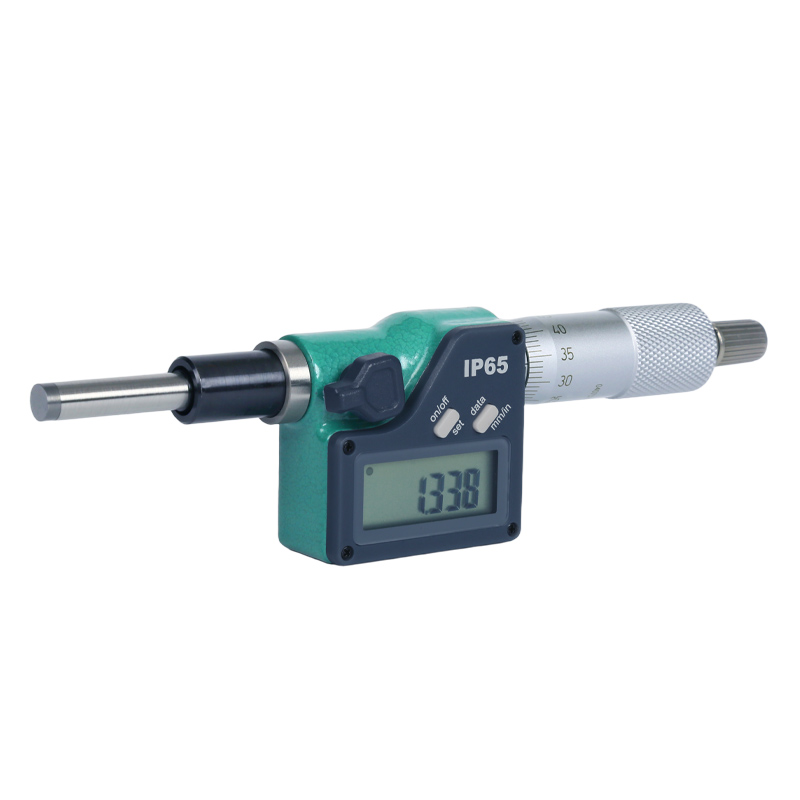

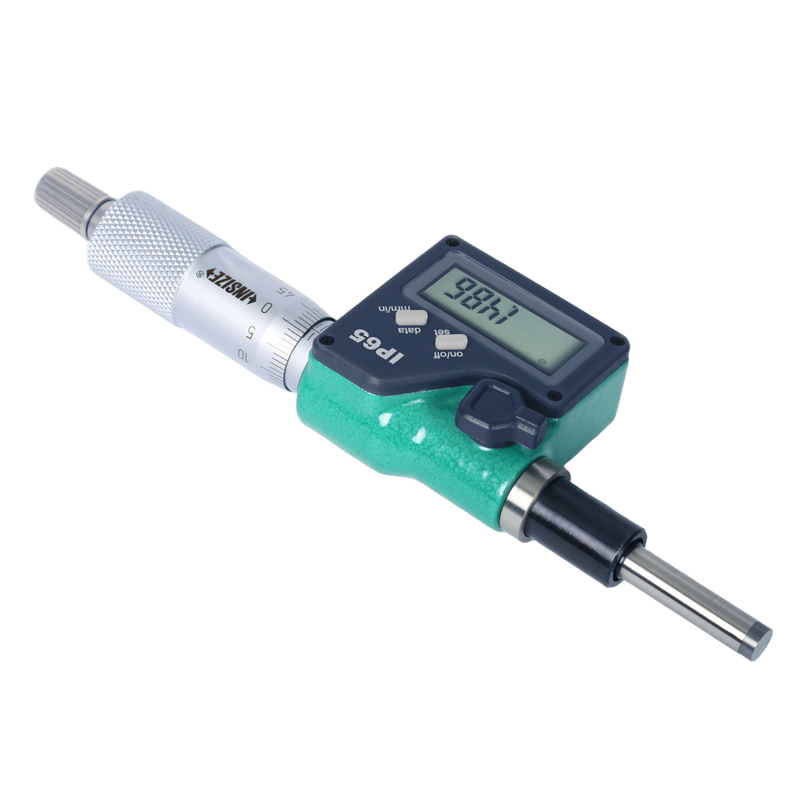

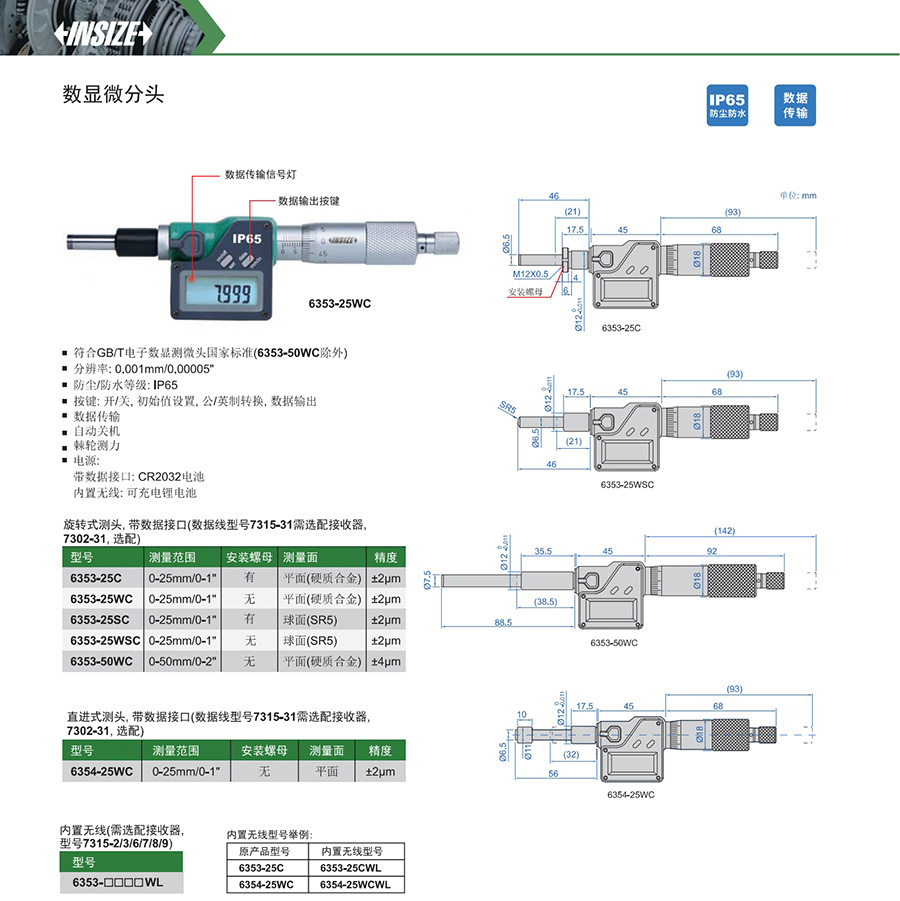

数显微分头
Code: 6353/6354
符合GB/T电子数显测微头国家标准(6353-50WC除外)
分辨率: 0.001mm/0.00005"
防尘/防水等级: IP65
按键: 开/关, 初始值设置, 公/英制转换, 数据输出
数据传输
自动关机
棘轮测力
电源:
| Code | Range | Accuracy | Resolution | Type | Stem | Spindle tip |
|---|---|---|---|---|---|---|
| 6353-25 | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Rotating spindle | with clamp nut | flat (carbide) |
| 6353-25W | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Rotating spindle | plain | flat (carbide) |
| 6353-25S | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Rotating spindle | with clamp nut | spherical (SR5) |
| 6353-25WS | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Rotating spindle | plain | spherical (SR5) |
| 6353-50W | 0-50mm/0-2" | ±4μm | 0.001mm/0.00005" | Rotating spindle | plain | flat (carbide) |
| 6354-25W | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | Non-rotating spindle | plain | flat |
