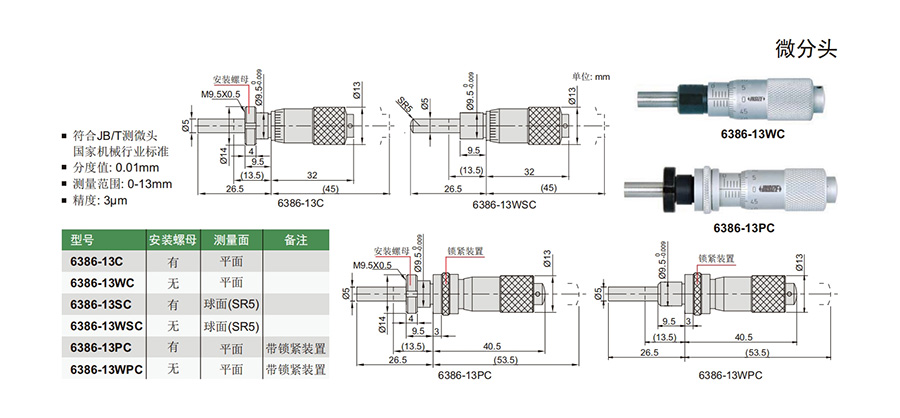

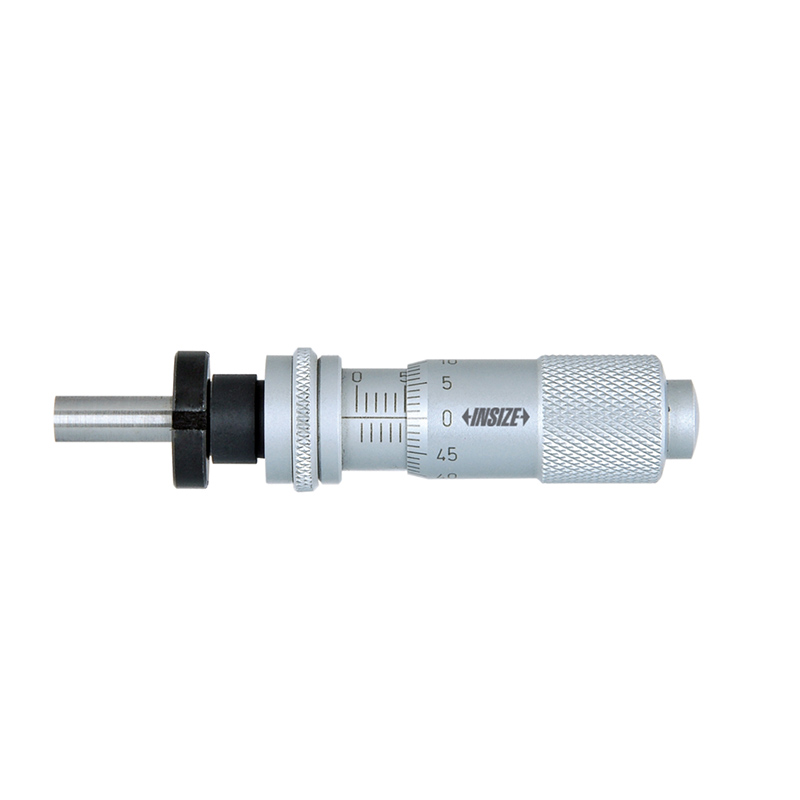

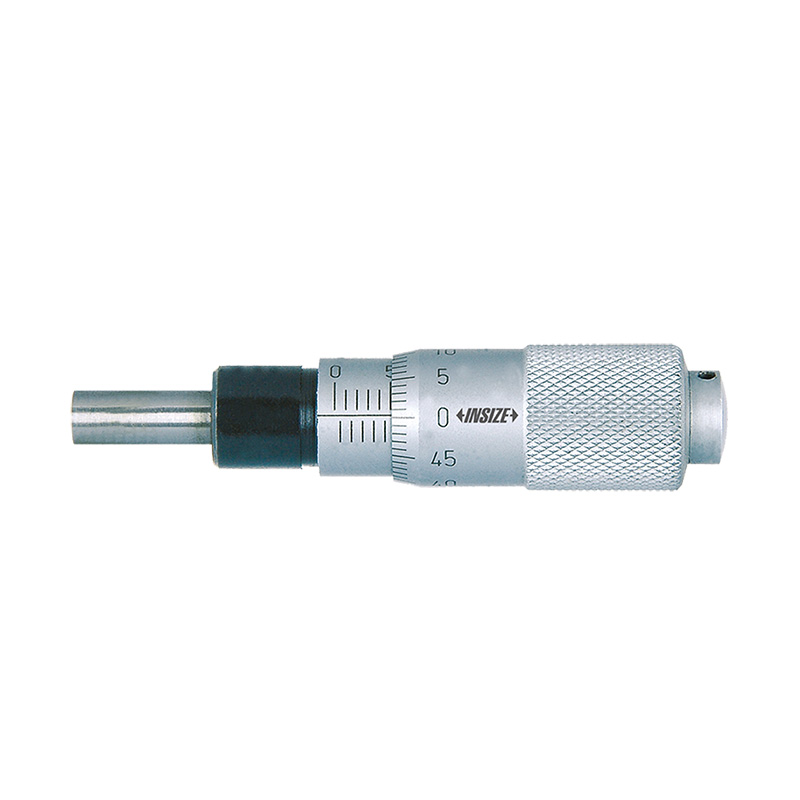

微分头
Code: 6386
符合JB/T测微头国家机械行业标准
分度值: 0.01mm
测量范围: 0-13mm
精度: 3μm
| Code | Range | Accuracy | Graduation | Remark | Stem | Spindle tip |
|---|---|---|---|---|---|---|
| 6386-13 | 0-13mm | 3μm | 0.01mm | - | with clamp nut | flat |
| 6386-13W | 0-13mm | 3μm | 0.01mm | - | plain | flat |
| 6386-13S | 0-13mm | 3μm | 0.01mm | - | with clamp nut | spherical (SR5) |
| 6386-13WS | 0-13mm | 3μm | 0.01mm | - | plain | spherical (SR5) |
| 6386-13P | 0-13mm | 3μm | 0.01mm | with spindle lock | with clamp nut | flat |
| 6386-13WP | 0-13mm | 3μm | 0.01mm | with spindle lock | plain | flat |
