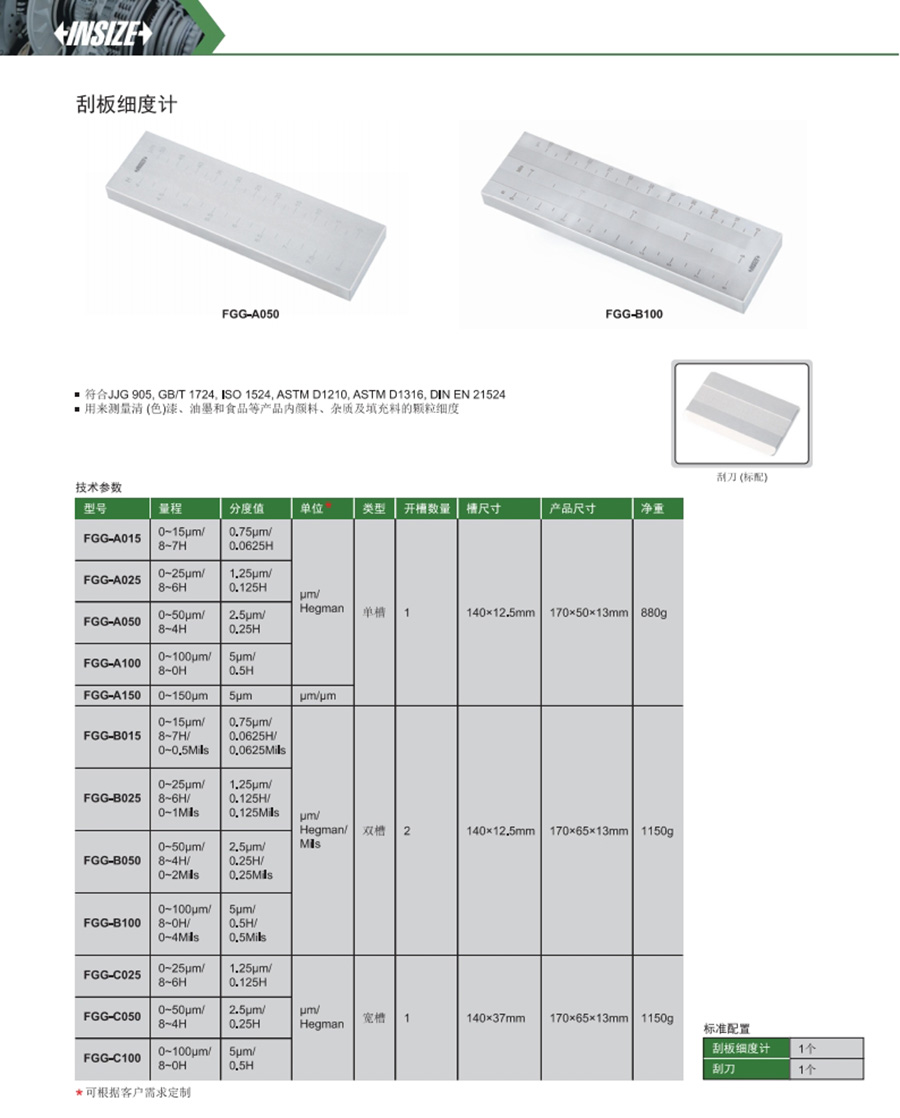

刮板细度计
型号: FGG系列
符合JJG 905, GB/T 1724, ISO 1524, ASTM D1210, ASTM D1316, DIN EN 21524
用来测量清 (色)漆、油墨和食品等产品内颜料、杂质及填充料的颗粒细度
| 型号 | 测量范围 | 类型 | 分度值 |
|---|---|---|---|

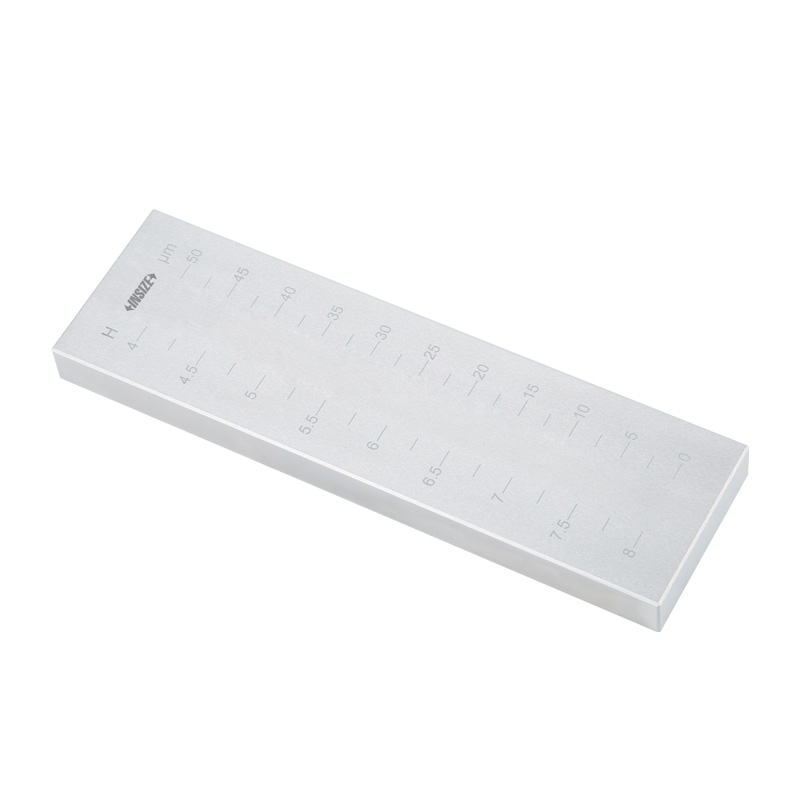

| FGG-A015 | 0~15μm/8~7H | 单槽 | 0.75μm/0.0625H |
| FGG-A025 | 0~25μm/8~6H | 单槽 | 1.25μm/0.125H |
| FGG-A050 | 0~50μm/8~4H | 单槽 | 2.5μm/0.25H |
| FGG-A100 | 0~100μm/8~0H | 单槽 | 5μm/0.5H |
| FGG-A150 | 0~150μm | 单槽 | 5μm |

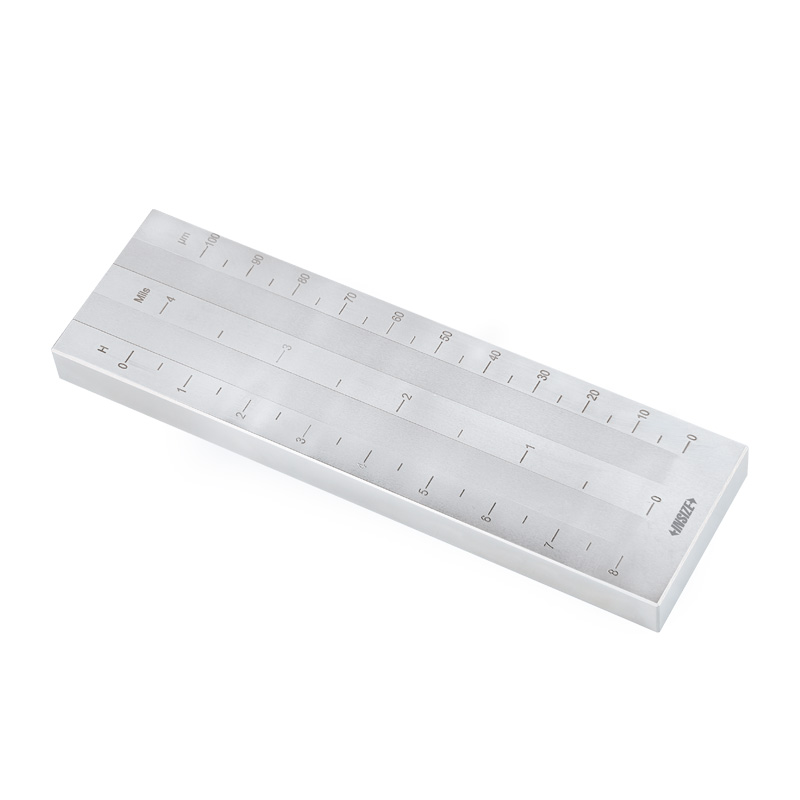

| FGG-B015 | 0~15μm/8~7H/0~0.5Mils | 双槽 | 0.75μm/0.0625H/0.0625Mils |
| FGG-B025 | 0~25μm/8~6H/0~1Mils | 双槽 | 1.25μm/0.125H/0.125Mils |
| FGG-B050 | 0~50μm/8~4H/0~2Mils | 双槽 | 2.5μm/0.25H/0.25Mils |
| FGG-B100 | 0~100μm/8~0H/0~4Mils | 双槽 | 5μm/0.5H/0.5Mils |
| FGG-C025 | 0~25μm/8~6H | 宽槽 | 1.25μm/0.125H |
| FGG-C050 | 0~50μm/8~4H | 宽槽 | 2.5μm/0.25H |
| FGG-C100 | 0~100μm/8~0H | 宽槽 | 5μm/0.5H |
