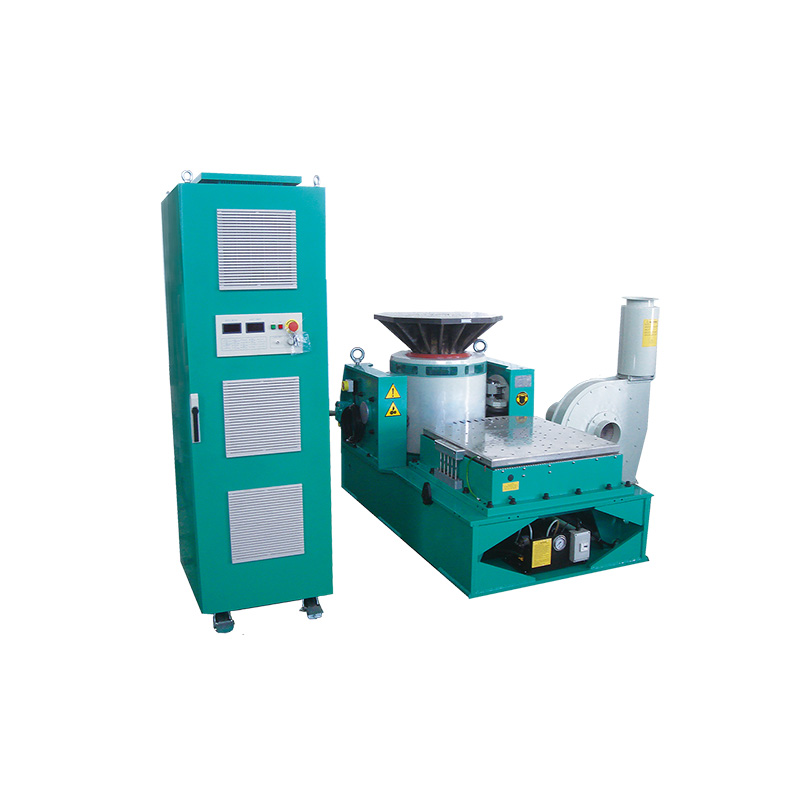

电动振动试验系统
Code: EDV-AC series
According to ISO 5344
Suitable for a variety of typical vibration and simulated transport tests for small and medium-sized automotive part, electronic component, household appliance and so on
Light weight and good rigidity, high first-order resonant frequency
High-efficiency, low-noise fan cooling, long-time continuous operation
Power amplifier modular design, complete system interlocking protection function
| Code | Max. load | Rated sine/random force | Shock force |
|---|---|---|---|
| EDV-AC1100 | 300kg | 1100kgf | 3300kgf |
| EDV-AC2400 | 300kg | 2400/2200kgf | 4800kgf |
| EDV-AC3000 | 500kg | 3000kgf | 6000kgf |
| EDV-AC4000 | 500kg | 4000kgf | 8000kgf |
| EDV-AC5000 | 1000kg | 5000kgf | 10000kgf |

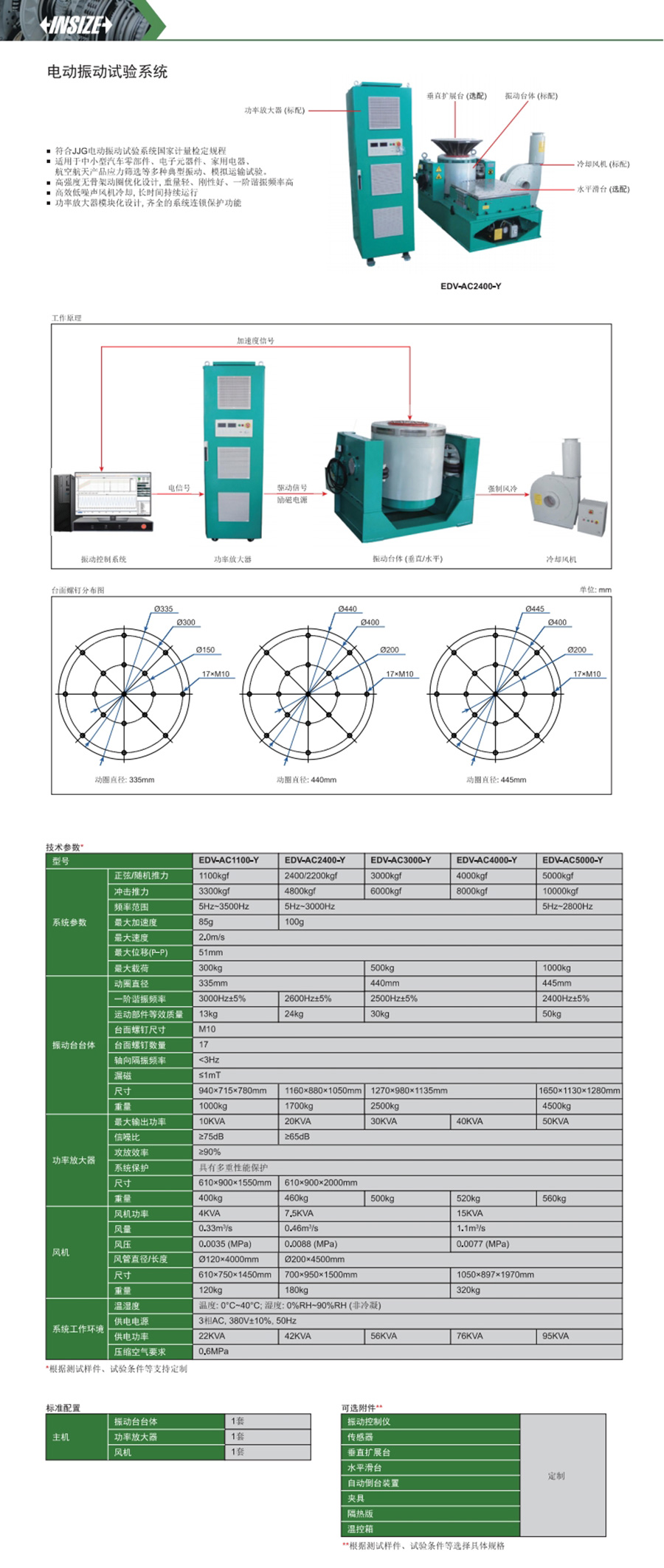

View the complete
product specifications
