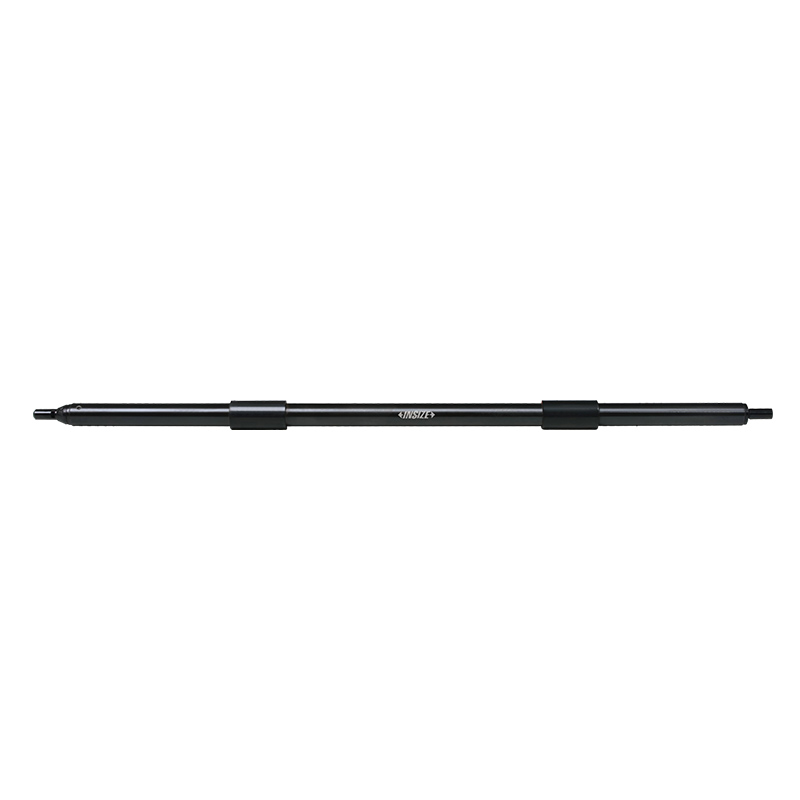

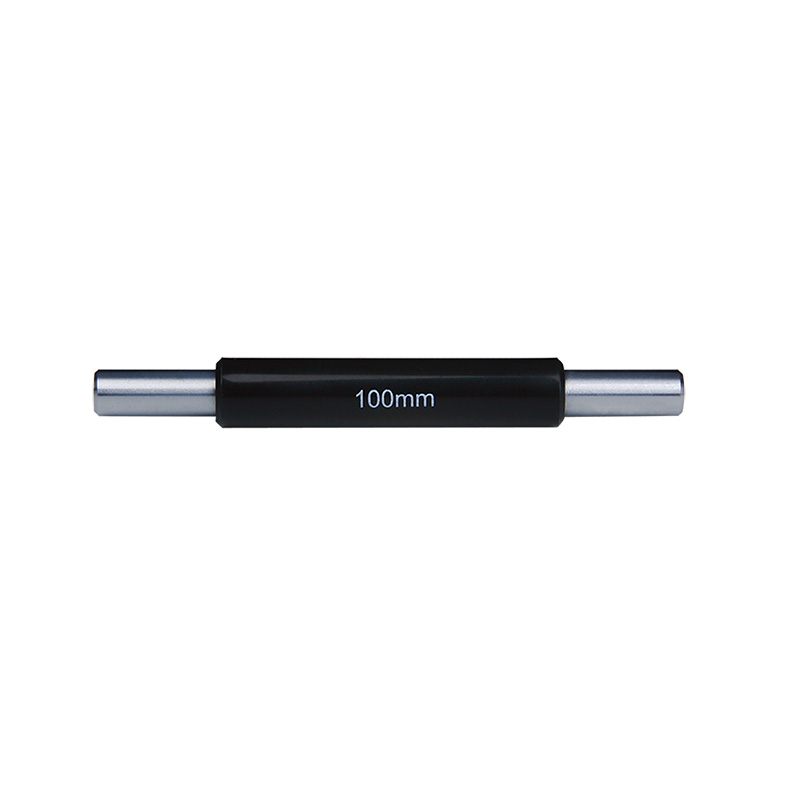

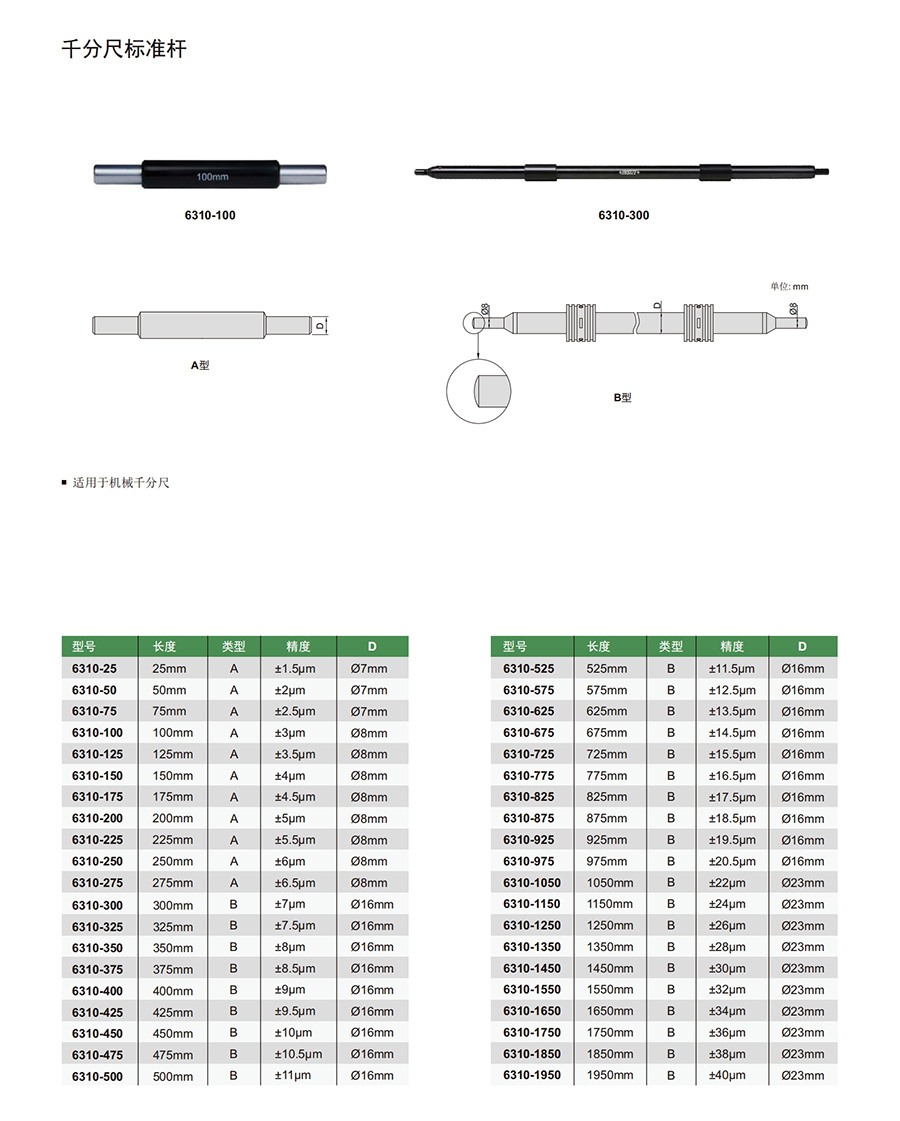

千分尺标准杆
Code: 6310
适用于机械千分尺
| Code | Accuracy | Length |
|---|---|---|
| 6310-25 | ±1.5μm | 25mm |
| 6310-50 | ±2μm | 50mm |
| 6310-75 | ±2.5μm | 75mm |
| 6310-100 | ±3μm | 100mm |
| 6310-125 | ±3.5μm | 125mm |
| 6310-150 | ±4μm | 150mm |
| 6310-175 | ±4.5μm | 175mm |
| 6310-200 | ±5μm | 200mm |
| 6310-225 | ±5.5μm | 225mm |
| 6310-250 | ±6μm | 250mm |
| 6310-275 | ±6.5μm | 275mm |
| 6310-300 | ±7μm | 300mm |
| 6310-325 | ±7.5μm | 325mm |
| 6310-350 | ±8μm | 350mm |
| 6310-375 | ±8.5μm | 375mm |
| 6310-400 | ±9μm | 400mm |
| 6310-425 | ±9.5μm | 425mm |
| 6310-450 | ±10μm | 450mm |
| 6310-475 | ±10.5μm | 475mm |
| 6310-500 | ±11μm | 500mm |
| 6310-525 | ±11.5μm | 525mm |
| 6310-575 | ±12.5μm | 575mm |
| 6310-625 | ±13.5μm | 625mm |
| 6310-675 | ±14.5μm | 675mm |
| 6310-725 | ±15.5μm | 725mm |
| 6310-775 | ±16.5μm | 775mm |
| 6310-825 | ±17.5μm | 825mm |
| 6310-875 | ±18.5μm | 875mm |
| 6310-925 | ±19.5μm | 925mm |
| 6310-975 | ±20.5μm | 975mm |
| 6310-1050 | ±22μm | 1050mm |
| 6310-1150 | ±24μm | 1150mm |
| 6310-1250 | ±26μm | 1250mm |
| 6310-1350 | ±28μm | 1350mm |
| 6310-1450 | ±30μm | 1450mm |
| 6310-1550 | ±32μm | 1550mm |
| 6310-1650 | ±34μm | 1650mm |
| 6310-1750 | ±36μm | 1750mm |
| 6310-1850 | ±38μm | 1850mm |
| 6310-1950 | ±40μm | 1950mm |
