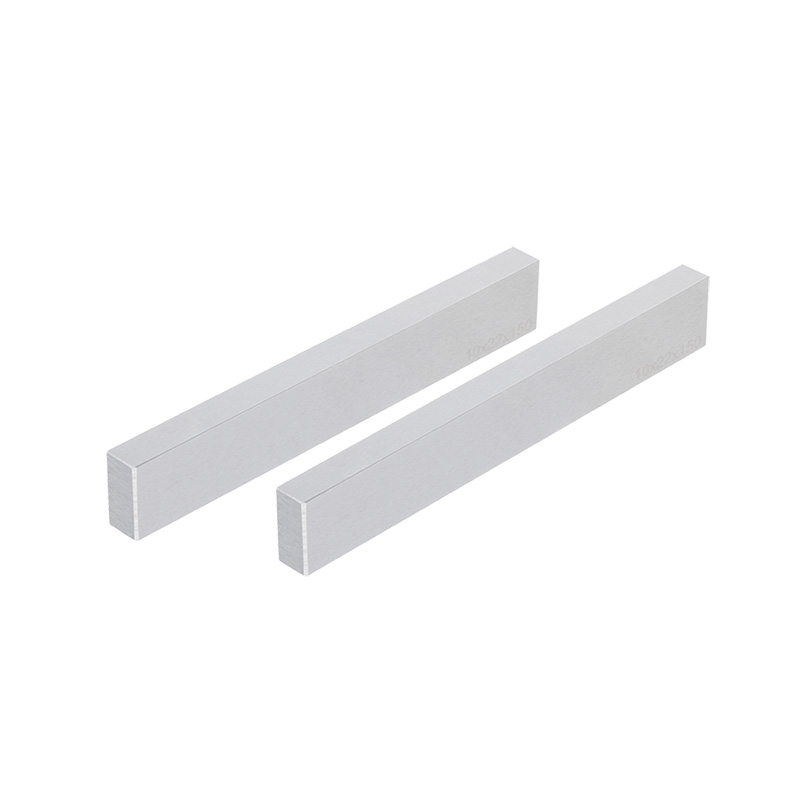

平行垫块
型号: 6512
硬度HRC55-60
合金工具钢
成对提供
| 型号 | 长度 | 平行度 | 两个平行垫块的等高度 |
|---|---|---|---|
| 6512-118 | 125mm | 5µm | 5µm |
| 6512-168 | 125mm | 5µm | 5µm |
| 6512-218 | 125mm | 5µm | 5µm |
| 6512-268 | 125mm | 5µm | 5µm |
| 6512-318 | 125mm | 5µm | 5µm |
| 6512-368 | 125mm | 5µm | 5µm |
| 6512-1310 | 125mm | 5µm | 5µm |
| 6512-1810 | 125mm | 5µm | 5µm |
| 6512-2310 | 125mm | 5µm | 5µm |
| 6512-2810 | 125mm | 5µm | 5µm |
| 6512-3310 | 125mm | 5µm | 5µm |
| 6512-3810 | 125mm | 5µm | 5µm |
| 6512-1512 | 125mm | 5µm | 5µm |
| 6512-2012 | 125mm | 5µm | 5µm |
| 6512-2512 | 125mm | 5µm | 5µm |
| 6512-3012 | 125mm | 5µm | 5µm |
| 6512-3512 | 125mm | 5µm | 5µm |
| 6512-4012 | 125mm | 5µm | 5µm |
| 6512-1714 | 125mm | 5µm | 5µm |
| 6512-2214 | 125mm | 5µm | 5µm |
| 6512-2714 | 125mm | 5µm | 5µm |
| 6512-3214 | 125mm | 5µm | 5µm |
| 6512-3714 | 125mm | 5µm | 5µm |
| 6512-4214 | 125mm | 5µm | 5µm |
| 6512-1181 | 150mm | 5µm | 5µm |
| 6512-1681 | 150mm | 5µm | 5µm |
| 6512-2181 | 150mm | 5µm | 5µm |
| 6512-2681 | 150mm | 5µm | 5µm |
| 6512-3181 | 150mm | 5µm | 5µm |
| 6512-3681 | 150mm | 5µm | 5µm |
| 6512-13101 | 150mm | 5µm | 5µm |
| 6512-18101 | 150mm | 5µm | 5µm |
| 6512-23101 | 150mm | 5µm | 5µm |
| 6512-28101 | 150mm | 5µm | 5µm |
| 6512-33101 | 150mm | 5µm | 5µm |
| 6512-38101 | 150mm | 5µm | 5µm |
| 6512-15121 | 150mm | 5µm | 5µm |
| 6512-20121 | 150mm | 5µm | 5µm |
| 6512-25121 | 150mm | 5µm | 5µm |
| 6512-30121 | 150mm | 5µm | 5µm |
| 6512-35121 | 150mm | 5µm | 5µm |
| 6512-40121 | 150mm | 5µm | 5µm |
| 6512-17141 | 150mm | 5µm | 5µm |
| 6512-22141 | 150mm | 5µm | 5µm |
| 6512-27141 | 150mm | 5µm | 5µm |
| 6512-32141 | 150mm | 5µm | 5µm |
| 6512-37141 | 150mm | 5µm | 5µm |
| 6512-42141 | 150mm | 5µm | 5µm |
| 6512-1182 | 200mm | 5µm | 5µm |
| 6512-1682 | 200mm | 5µm | 5µm |
| 6512-2182 | 200mm | 5µm | 5µm |
| 6512-2682 | 200mm | 5µm | 5µm |
| 6512-3182 | 200mm | 5µm | 5µm |
| 6512-3682 | 200mm | 5µm | 5µm |
| 6512-13102 | 200mm | 5µm | 5µm |
| 6512-18102 | 200mm | 5µm | 5µm |
| 6512-23102 | 200mm | 5µm | 5µm |
| 6512-28102 | 200mm | 5µm | 5µm |
| 6512-33102 | 200mm | 5µm | 5µm |
| 6512-38102 | 200mm | 5µm | 5µm |
| 6512-15122 | 200mm | 5µm | 5µm |
| 6512-20122 | 200mm | 5µm | 5µm |
| 6512-25122 | 200mm | 5µm | 5µm |
| 6512-30122 | 200mm | 5µm | 5µm |
| 6512-35122 | 200mm | 5µm | 5µm |
| 6512-40122 | 200mm | 5µm | 5µm |
| 6512-17142 | 200mm | 5µm | 5µm |
| 6512-22142 | 200mm | 5µm | 5µm |
| 6512-27142 | 200mm | 5µm | 5µm |
| 6512-32142 | 200mm | 5µm | 5µm |
| 6512-37142 | 200mm | 5µm | 5µm |
| 6512-42142 | 200mm | 5µm | 5µm |
| 6512-52 | 100mm | 7µm | 7µm |
| 6512-102 | 100mm | 5µm | 5µm |
| 6512-152 | 100mm | 5µm | 5µm |
| 6512-202 | 100mm | 5µm | 5µm |
| 6512-63 | 100mm | 7µm | 7µm |
| 6512-113 | 100mm | 5µm | 5µm |
| 6512-163 | 100mm | 5µm | 5µm |
| 6512-213 | 100mm | 5µm | 5µm |
| 6512-74 | 100mm | 7µm | 7µm |
| 6512-124 | 100mm | 5µm | 5µm |
| 6512-174 | 100mm | 5µm | 5µm |
| 6512-224 | 100mm | 5µm | 5µm |
| 6512-85 | 100mm | 7µm | 7µm |
| 6512-135 | 100mm | 5µm | 5µm |
| 6512-185 | 100mm | 5µm | 5µm |
| 6512-235 | 100mm | 5µm | 5µm |
| 6512-96 | 100mm | 7µm | 7µm |
| 6512-146 | 100mm | 5µm | 5µm |
| 6512-196 | 100mm | 5µm | 5µm |
| 6512-246 | 100mm | 5µm | 5µm |
| 6512-1410A | 150mm | 5µm | 5µm |
| 6512-1610A | 150mm | 5µm | 5µm |
| 6512-1810A | 150mm | 5µm | 5µm |
| 6512-2010A | 150mm | 5µm | 5µm |
| 6512-2210A | 150mm | 5µm | 5µm |
| 6512-2410A | 150mm | 5µm | 5µm |
| 6512-2610A | 150mm | 5µm | 5µm |
| 6512-2810A | 150mm | 5µm | 5µm |
| 6512-3010A | 150mm | 5µm | 5µm |
| 6512-3210A | 150mm | 5µm | 5µm |
| 6512-3510A | 150mm | 5µm | 5µm |
| 6512-4010A | 150mm | 5µm | 5µm |
| 6512-4510A | 150mm | 5µm | 5µm |
| 6512-5010A | 150mm | 5µm | 5µm |
| 6512-104A | 160mm | 5µm | 5µm |
| 6512-144A | 160mm | 5µm | 5µm |
| 6512-184A | 160mm | 5µm | 5µm |
| 6512-224A | 160mm | 5µm | 5µm |
| 6512-264A | 160mm | 5µm | 5µm |
| 6512-304A | 160mm | 5µm | 5µm |
| 6512-344A | 160mm | 5µm | 5µm |
| 6512-384A | 160mm | 5µm | 5µm |
| 6512-424A | 160mm | 5µm | 5µm |
| 6512-128A | 160mm | 5µm | 5µm |
| 6512-178A | 160mm | 5µm | 5µm |
| 6512-228A | 160mm | 5µm | 5µm |
| 6512-258A | 160mm | 5µm | 5µm |
| 6512-288A | 160mm | 5µm | 5µm |
| 6512-328A | 160mm | 5µm | 5µm |
| 6512-368A | 160mm | 5µm | 5µm |
| 6512-388A | 160mm | 5µm | 5µm |
| 6512-178B | 200mm | 5µm | 5µm |
| 6512-228B | 200mm | 5µm | 5µm |
| 6512-268B | 200mm | 5µm | 5µm |
| 6512-288B | 200mm | 5µm | 5µm |
| 6512-328B | 200mm | 5µm | 5µm |
| 6512-368B | 200mm | 5µm | 5µm |
| 6512-388B | 200mm | 5µm | 5µm |
| 6512-428B | 200mm | 5µm | 5µm |
