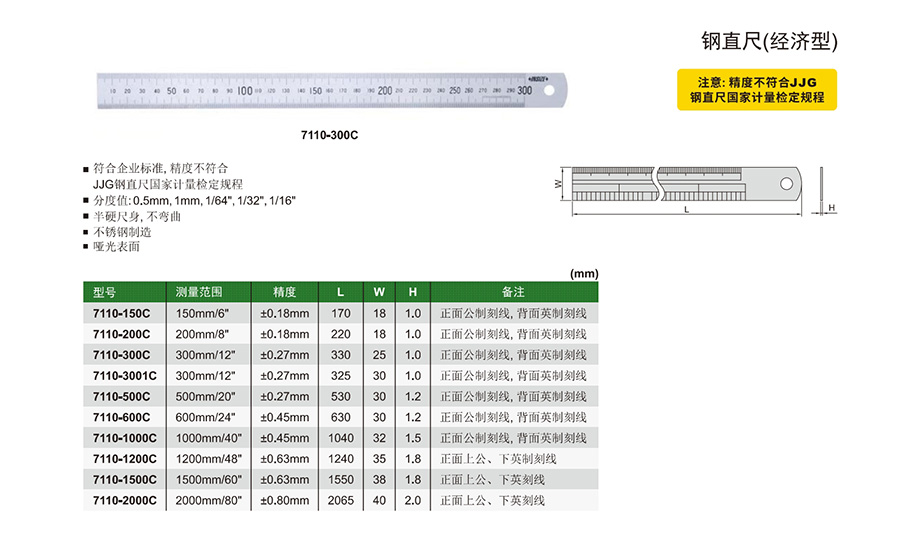

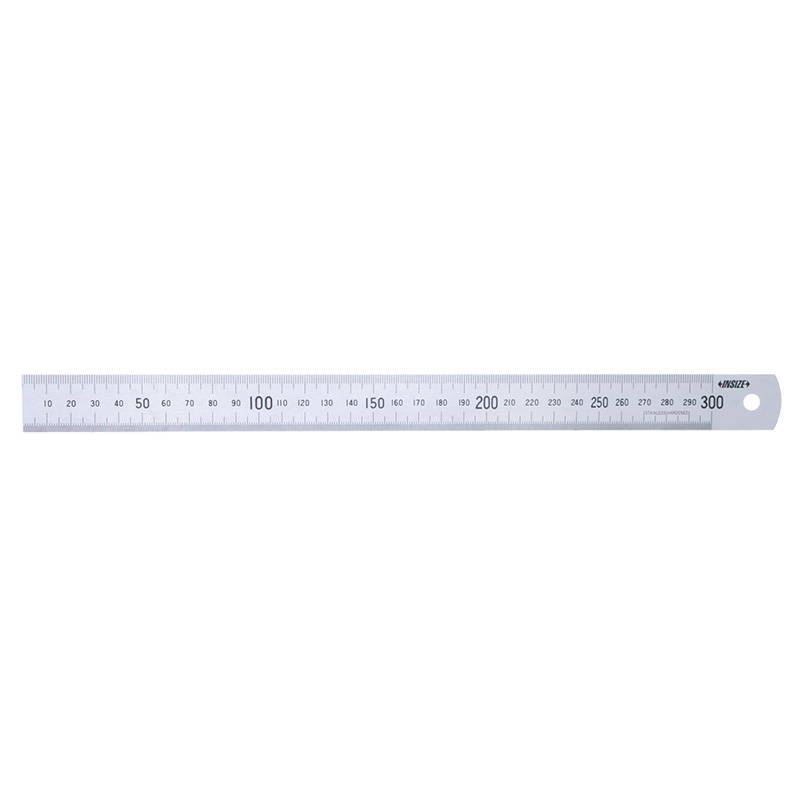

钢直尺(经济型)
型号: 7110
符合企业标准, 精度不符合JJG钢直尺国家计量检定规程
分度值: 0.5mm, 1mm, 1/64", 1/32", 1/16"
半硬尺身, 不弯曲
不锈钢制造
哑光表面
| 型号 | 测量范围 | 精度 | 分度值 |
|---|---|---|---|
| 7110-150C | 150mm/6" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-200C | 200mm/8" | ±0.18mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-300C | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-3001C | 300mm/12" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-500C | 500mm/20" | ±0.27mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-600C | 600mm/24" | ±0.45mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1000C | 1000mm/40" | ±0.45mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1200C | 1200mm/48" | ±0.63mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-1500C | 1500mm/60" | ±0.63mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
| 7110-2000C | 2000mm/80" | ±0.80mm | 0.5mm, 1mm, 1/64", 1/32", 1/16" |
