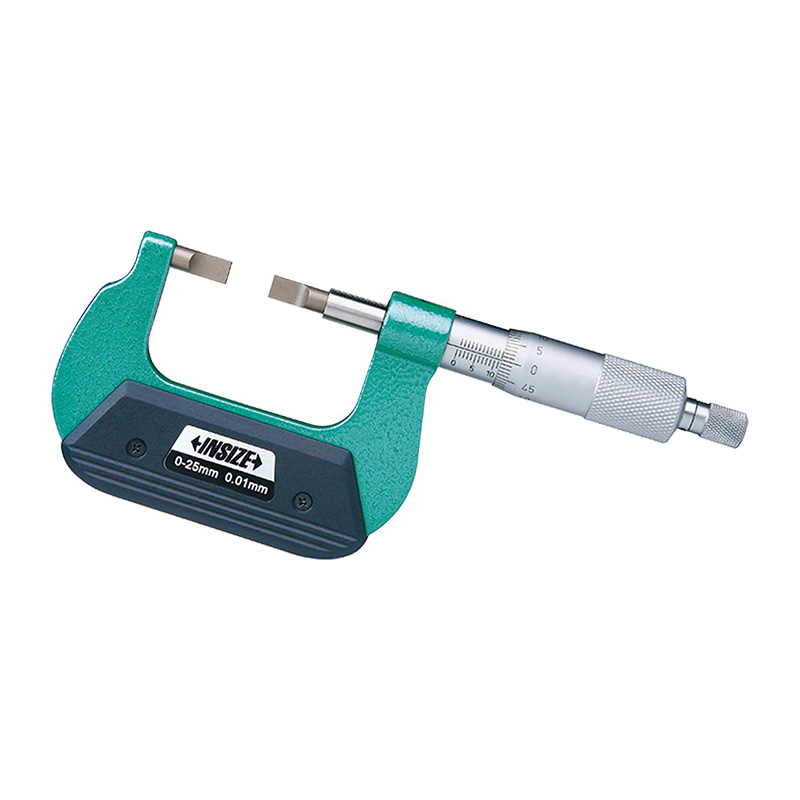

Blade Micrometers
Code: 3232
符合JJG外径千分尺国家计量检定规程
用于测量狭窄凹槽的直径等
分度值: 0.01mm
直进式, 测头不旋转
棘轮测力
配标准杆(除0-25mm外)

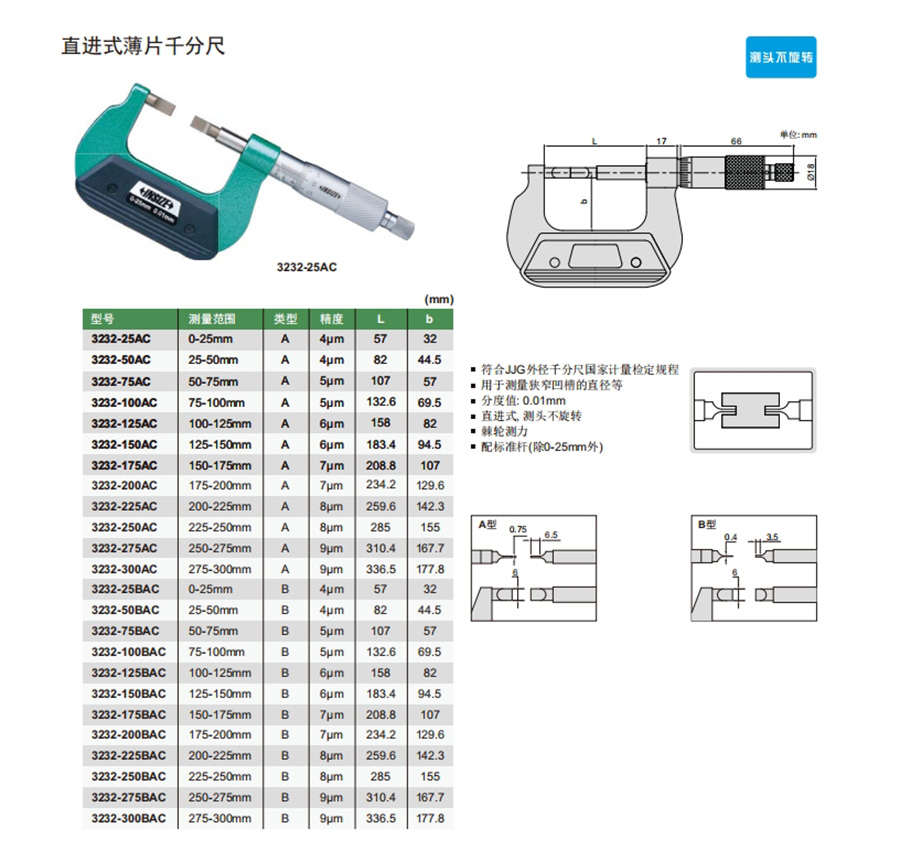

| Code | Range | Accuracy | Type | Graduation |
|---|---|---|---|---|
| 3232-25A | 0-25mm | 4μm | A | 0.01mm |
| 3232-50A | 25-50mm | 4μm | A | 0.01mm |
| 3232-75A | 50-75mm | 5μm | A | 0.01mm |
| 3232-100A | 75-100mm | 5μm | A | 0.01mm |
| 3232-125A | 100-125mm | 6μm | A | 0.01mm |
| 3232-150A | 125-150mm | 6μm | A | 0.01mm |
| 3232-175A | 150-175mm | 7μm | A | 0.01mm |
| 3232-200A | 175-200mm | 7μm | A | 0.01mm |
| 3232-225A | 200-225mm | 8μm | A | 0.01mm |
| 3232-250A | 225-250mm | 8μm | A | 0.01mm |
| 3232-275A | 250-275mm | 9μm | A | 0.01mm |
| 3232-300A | 275-300mm | 9μm | A | 0.01mm |
| 3232-25BA | 0-25mm | 4μm | B | 0.01mm |
| 3232-50BA | 25-50mm | 4μm | B | 0.01mm |
| 3232-75BA | 50-75mm | 5μm | B | 0.01mm |
| 3232-100BA | 75-100mm | 5μm | B | 0.01mm |
| 3232-125BA | 100-125mm | 6μm | B | 0.01mm |
| 3232-150BA | 125-150mm | 6μm | B | 0.01mm |
| 3232-175BA | 150-175mm | 7μm | B | 0.01mm |
| 3232-200BA | 175-200mm | 7μm | B | 0.01mm |
| 3232-225BA | 200-225mm | 8μm | B | 0.01mm |
| 3232-250BA | 225-250mm | 8μm | B | 0.01mm |
| 3232-275BA | 250-275mm | 9μm | B | 0.01mm |
| 3232-300BA | 275-300mm | 9μm | B | 0.01mm |
