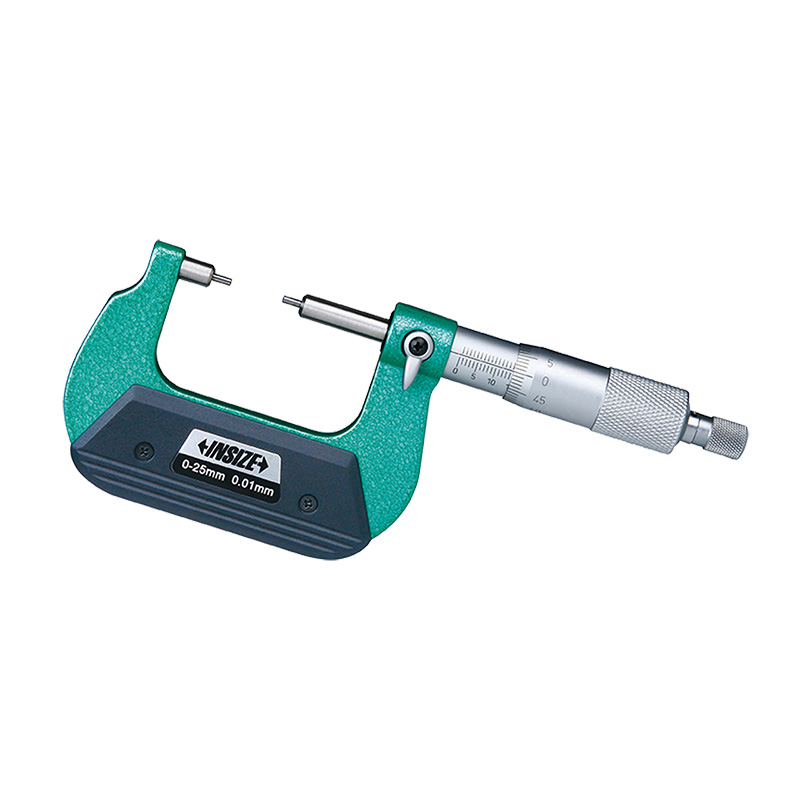

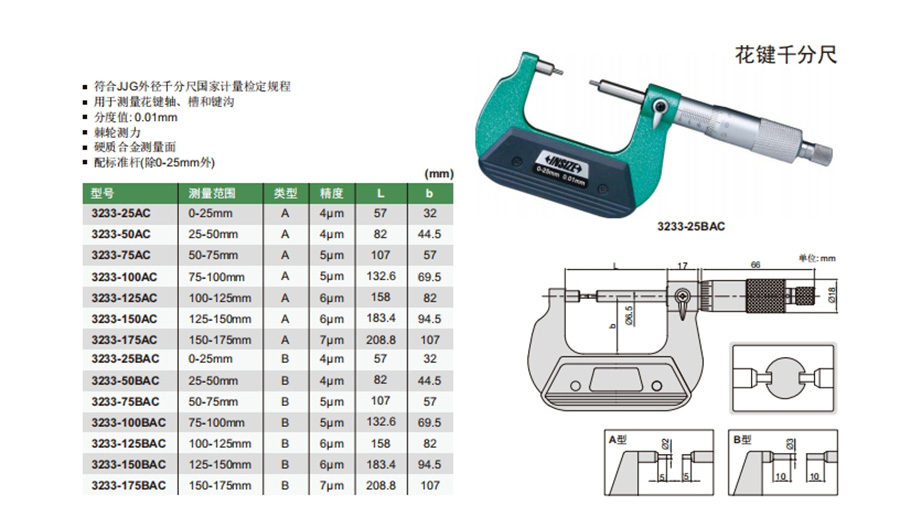

花键千分尺
Code: 3233
符合JJG外径千分尺国家计量检定规程
用于测量花键轴、槽和键沟
分度值: 0.01mm
棘轮测力
硬质合金测量面
配标准杆(除0-25mm外)
| Code | Range | Accuracy | Type | Graduation |
|---|---|---|---|---|
| 3233-25A | 0-25mm | 4μm | A | 0.01mm |
| 3233-50A | 25-50mm | 4μm | A | 0.01mm |
| 3233-75A | 50-75mm | 5μm | A | 0.01mm |
| 3233-100A | 75-100mm | 5μm | A | 0.01mm |
| 3233-125A | 100-125mm | 6μm | A | 0.01mm |
| 3233-150A | 125-150mm | 6μm | A | 0.01mm |
| 3233-175A | 150-175mm | 7μm | A | 0.01mm |
| 3233-25BA | 0-25mm | 4μm | B | 0.01mm |
| 3233-50BA | 25-50mm | 4μm | B | 0.01mm |
| 3233-75BA | 50-75mm | 5μm | B | 0.01mm |
| 3233-100BA | 75-100mm | 5μm | B | 0.01mm |
| 3233-125BA | 100-125mm | 6μm | B | 0.01mm |
| 3233-150BA | 125-150mm | 6μm | B | 0.01mm |
| 3233-175BA | 150-175mm | 7μm | B | 0.01mm |
