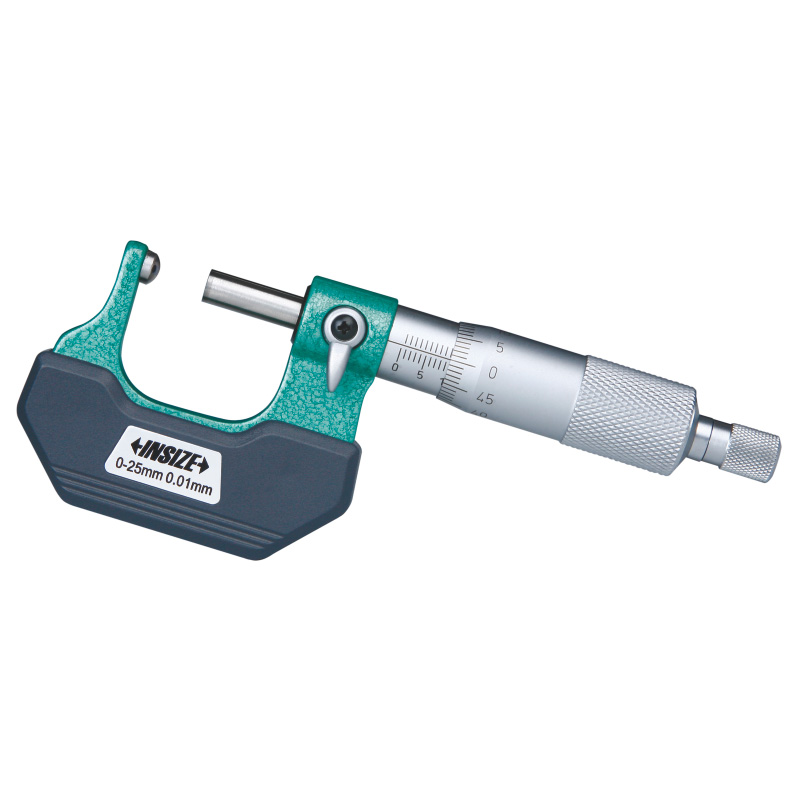

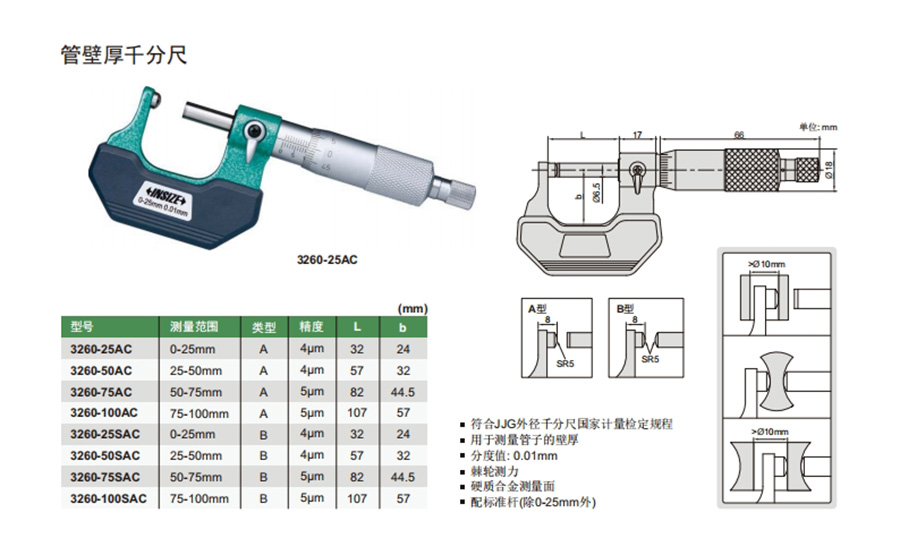

管壁厚千分尺
Code: 3260
符合JJG外径千分尺国家计量检定规程
用于测量管子的壁厚
分度值: 0.01mm
棘轮测力
硬质合金测量面
配标准杆(除0-25mm外)
| Code | Range | Accuracy | Type | Graduation |
|---|---|---|---|---|
| 3260-25A | 0-25mm | 4μm | A | 0.01mm |
| 3260-50A | 25-50mm | 4μm | A | 0.01mm |
| 3260-75A | 50-75mm | 5μm | A | 0.01mm |
| 3260-100A | 75-100mm | 5μm | A | 0.01mm |
| 3260-25SA | 0-25mm | 4μm | B | 0.01mm |
| 3260-50SA | 25-50mm | 4μm | B | 0.01mm |
| 3260-75SA | 50-75mm | 5μm | B | 0.01mm |
| 3260-100SA | 75-100mm | 5μm | B | 0.01mm |
