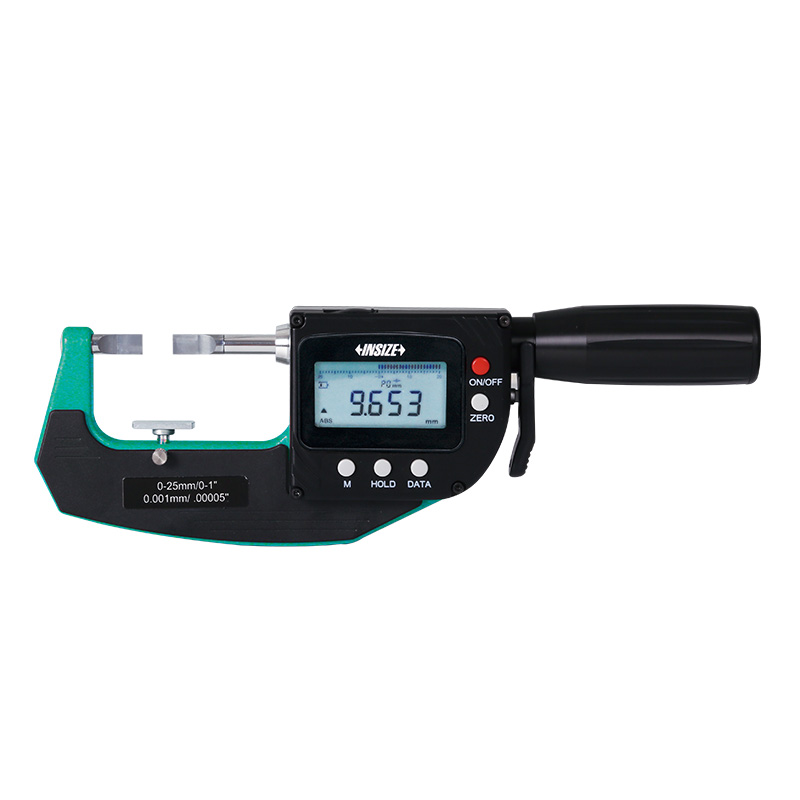

快速数显薄片千分尺/卡规
Code: 3352
符合JJG外径千分尺国家计量检定规程
用于测量狭窄凹槽的直径等
绝对编码光栅, 关机后仍保留原有数值
分辨率: 0.001mm/0.00005"
套筒转动一圈, 测头进给10mm
测量精度不受套筒使用方式影响
按下拨叉测头缩进3mm
硬质合金测量面
测头测力5-10N, 可定制测力范围3-11N (注意: 小测力会降低防尘防水等级)
按键功能: 数据输出, 设置公差, 设置初始值, 保持读数, 测量方向转换, 最大值/最小值/跳动, 关机时间设置, 开/关, 置零, 公/英制转换
标配对零量块(除0-25mm/0-1"外)
电源: 充电电池, 可工作24小时
| Code | Range | Accuracy | Resolution | Type | Data output |
|---|---|---|---|---|---|
| 3352-251 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | A | with data interface |
| 3352-501 | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | A | with data interface |
| 3352-751 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | A | with data interface |
| 3352-252 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | B | with data interface |
| 3352-502 | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | B | with data interface |
| 3352-752 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | B | with data interface |
| 3352-251WL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | A | built-in wireless |
| 3352-501WL | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | A | built-in wireless |
| 3352-751WL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | A | built-in wireless |
| 3352-252WL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | B | built-in wireless |
| 3352-502WL | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | B | built-in wireless |
| 3352-752WL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | B | built-in wireless |
