数据传输

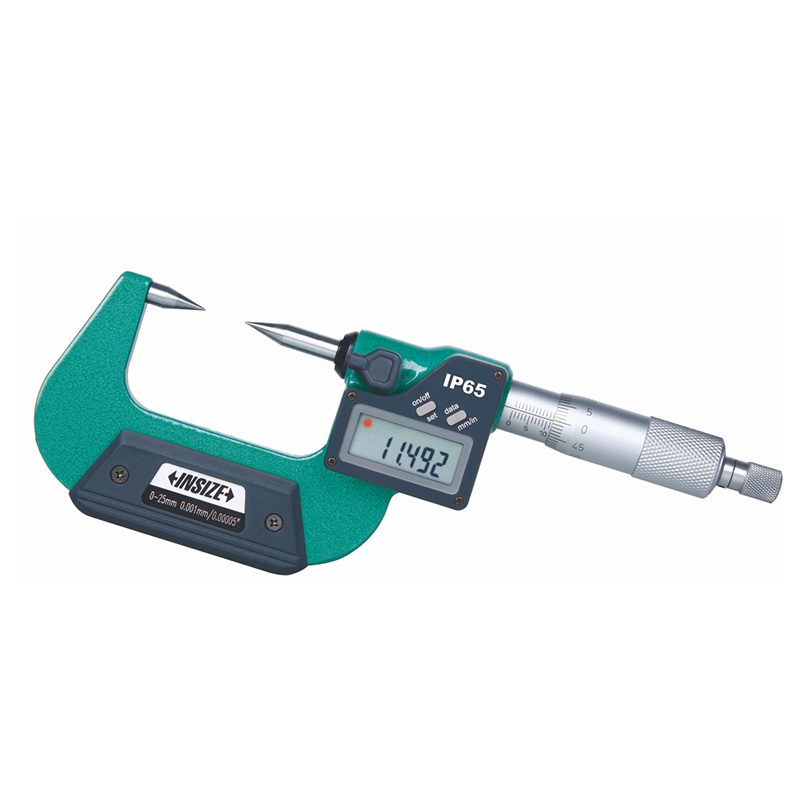

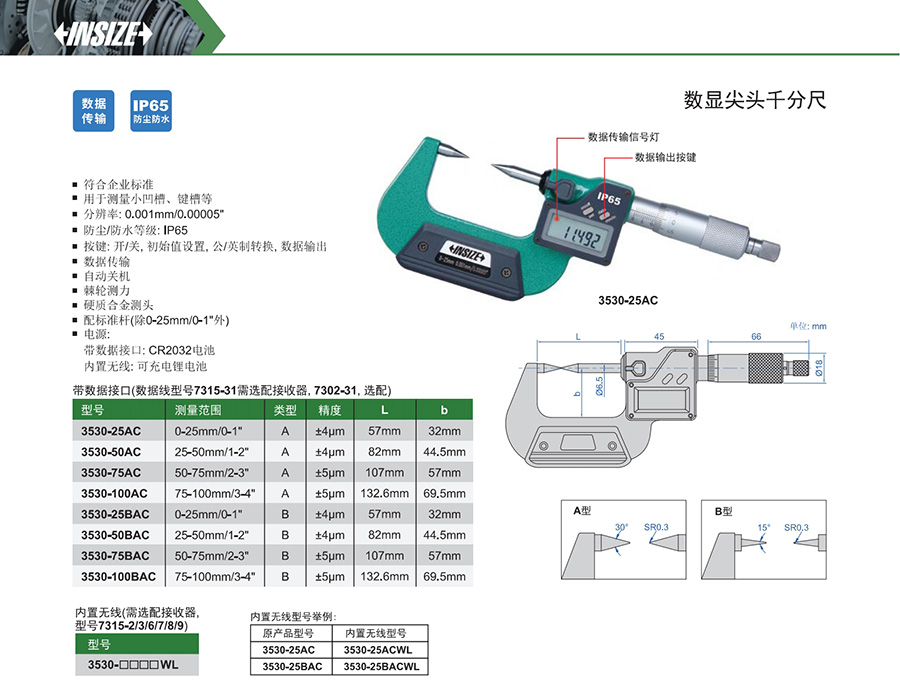

Code: 3530
符合企业标准
用于测量小凹槽、键槽等
分辨率: 0.001mm/0.00005"
防尘/防水等级: IP65
按键: 开/关, 初始值设置, 公/英制转换, 数据输出
数据传输
自动关机
棘轮测力
硬质合金测头
配标准杆(除0-25mm/0-1"外)
电源:
| Code | Range | Accuracy | Resolution | Type | Data output |
|---|---|---|---|---|---|
| 3530-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | A | with data interface |
| 3530-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | A | with data interface |
| 3530-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | A | with data interface |
| 3530-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | A | with data interface |
| 3530-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3530-50BA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3530-75BA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | B | with data interface |
| 3530-100BA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | B | with data interface |
| 3530-25AWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | A | built-in wireless |
| 3530-50AWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | A | built-in wireless |
| 3530-75AWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | A | built-in wireless |
| 3530-100AWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | A | built-in wireless |
| 3530-25BAWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | built-in wireless |
| 3530-50BAWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | B | built-in wireless |
| 3530-75BAWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | B | built-in wireless |
| 3530-100BAWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | B | built-in wireless |
