数据传输
Code: 3533
符合企业标准

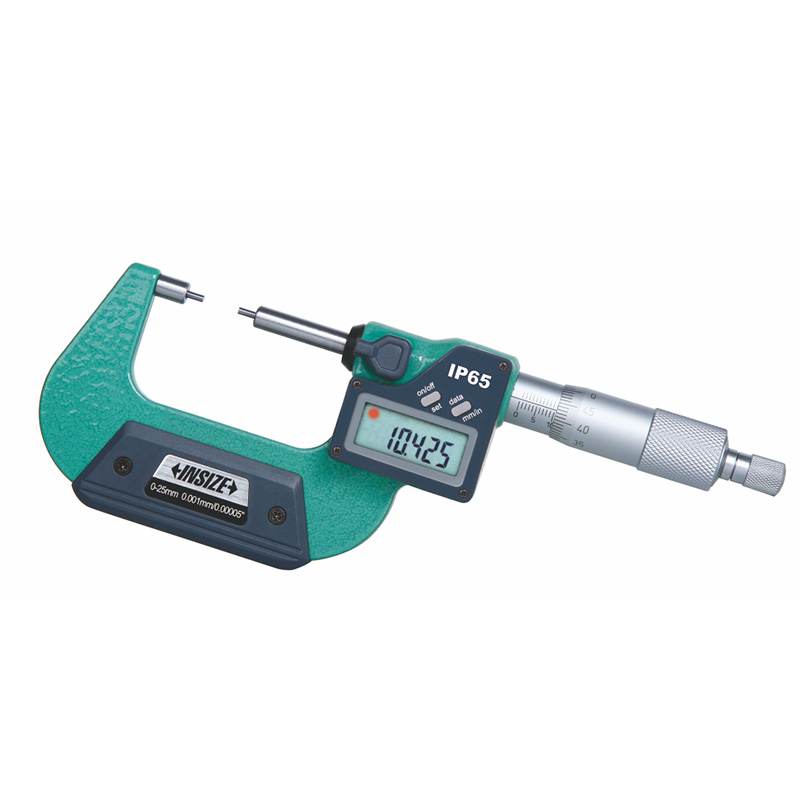

用于测量花键轴、槽和键沟
分辨率: 0.001mm/0.00005"
防尘/防水等级: IP65
按键: 开/关, 初始值设置, 公/英制转换, 数据输出
数据传输
自动关机
棘轮测力
硬质合金测量面
配标准杆(除0-25mm/0-1"外)
电源:

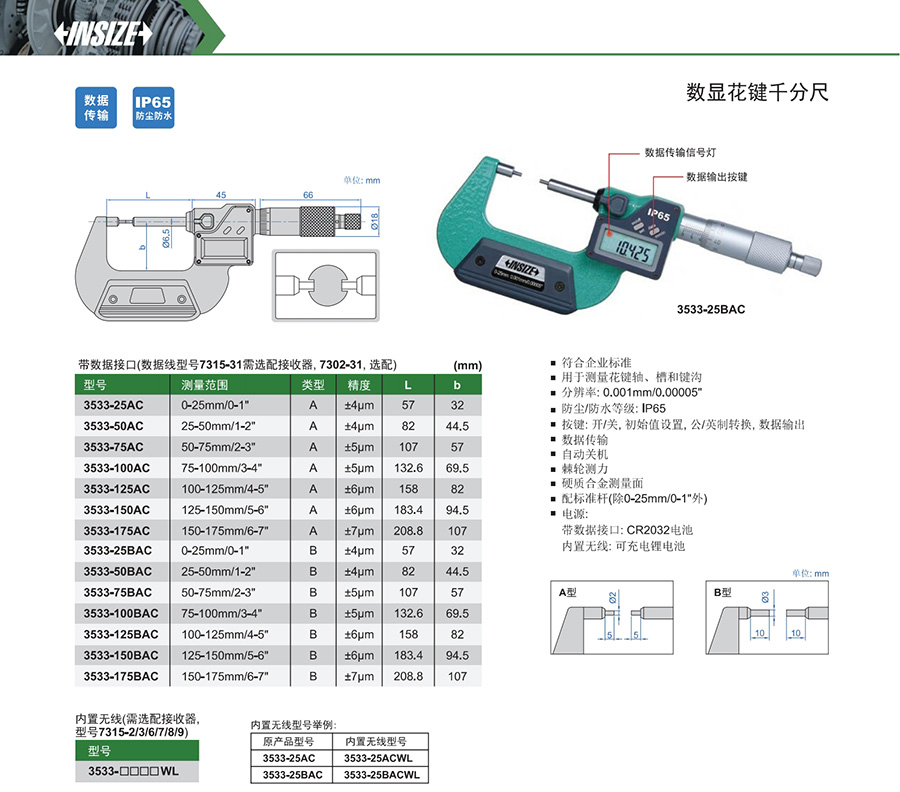

| Code | Range | Accuracy | Resolution | Type | Data output |
|---|---|---|---|---|---|
| 3533-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | A | with data interface |
| 3533-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | A | with data interface |
| 3533-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | A | with data interface |
| 3533-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | A | with data interface |
| 3533-125A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | A | with data interface |
| 3533-150A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | A | with data interface |
| 3533-175A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | A | with data interface |
| 3533-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3533-50BA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3533-75BA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | B | with data interface |
| 3533-100BA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | B | with data interface |
| 3533-125BA | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | B | with data interface |
| 3533-150BA | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | B | with data interface |
| 3533-175BA | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | B | with data interface |
| 3533-25AWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-50AWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-75AWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-100AWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-125AWL | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-150AWL | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-175AWL | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | A | built-in wireless |
| 3533-25BAWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-50BAWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-75BAWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-100BAWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-125BAWL | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-150BAWL | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | B | built-in wireless |
| 3533-175BAWL | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | B | built-in wireless |
