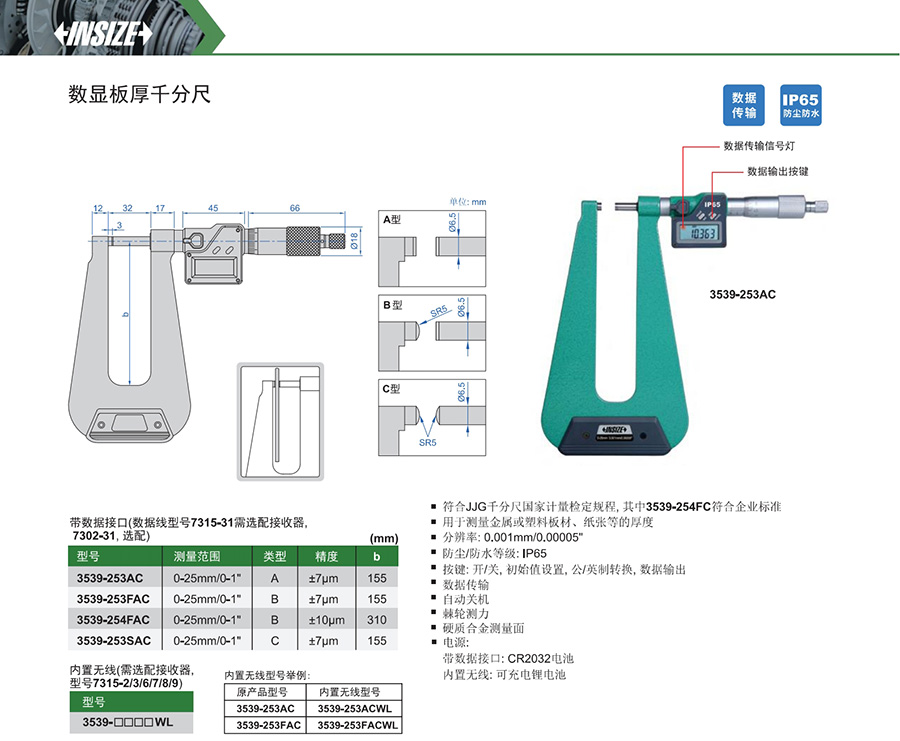

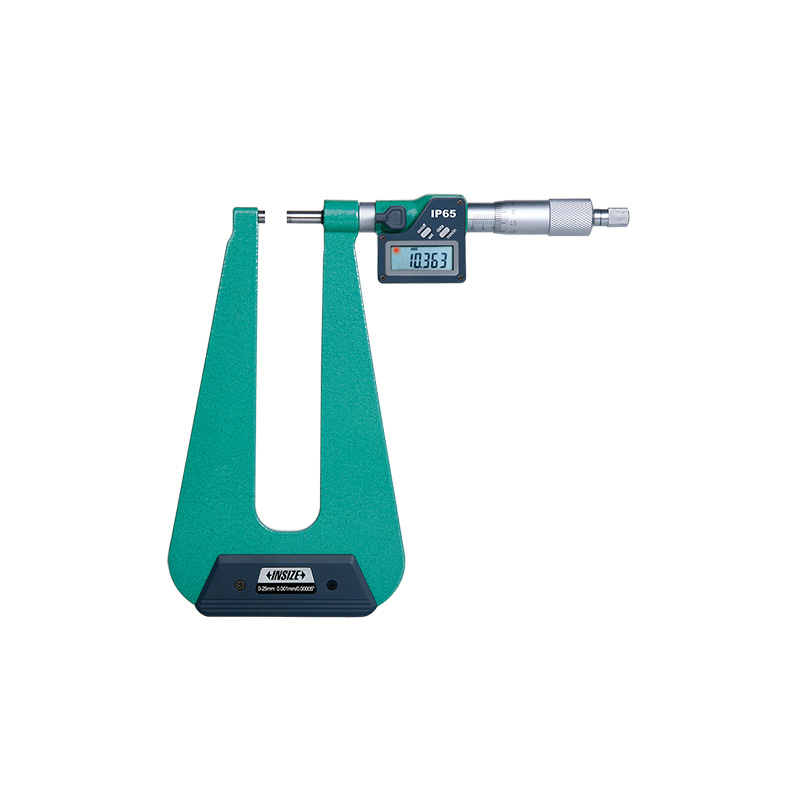

数显板厚千分尺
Code: 3539
符合JJG千分尺国家计量检定规程, 其中3539-254FC符合企业标准
用于测量金属或塑料板材、纸张等的厚度
分辨率: 0.001mm/0.00005"
防尘/防水等级: IP65
按键: 开/关, 初始值设置, 公/英制转换, 数据输出
自动关机
棘轮测力
硬质合金测量面
电源:
| Code | Range | Accuracy | Resolution | Type | Data output |
|---|---|---|---|---|---|
| 3539-253A | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | A | with data interface |
| 3539-253FA | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | B | with data interface |
| 3539-254FA | 0-25mm/0-1" | ±10μm | 0.001mm/0.00005" | B | with data interface |
| 3539-253SA | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | C | with data interface |
| 3539-253AWL | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | A | built-in wireless |
| 3539-253FAWL | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | B | built-in wireless |
| 3539-254FAWL | 0-25mm/0-1" | ±10μm | 0.001mm/0.00005" | B | built-in wireless |
| 3539-253SAWL | 0-25mm/0-1" | ±7μm | 0.001mm/0.00005" | C | built-in wireless |
