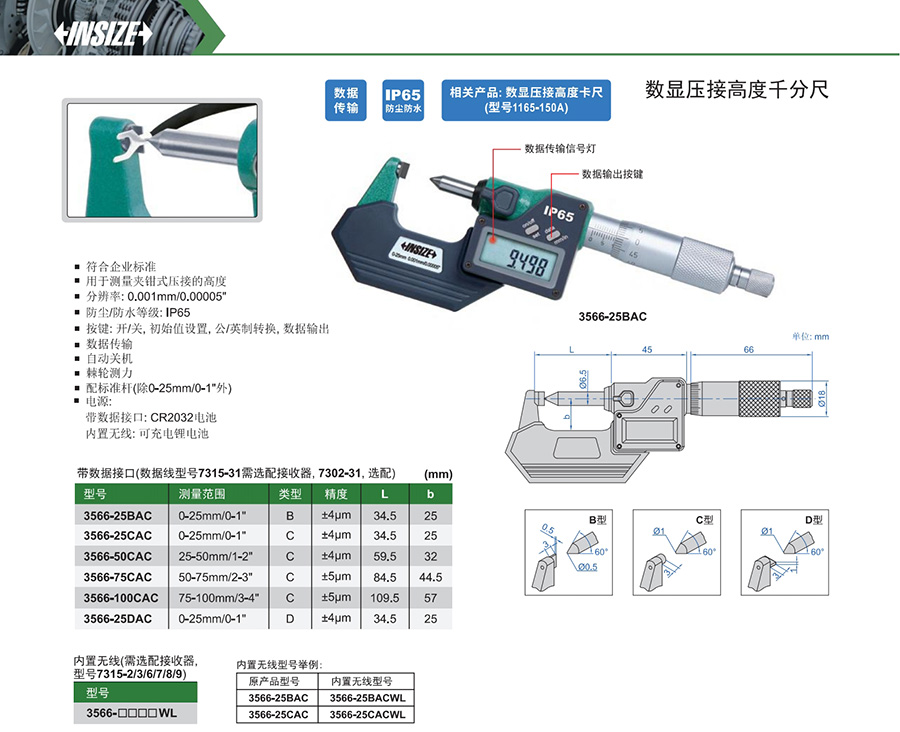

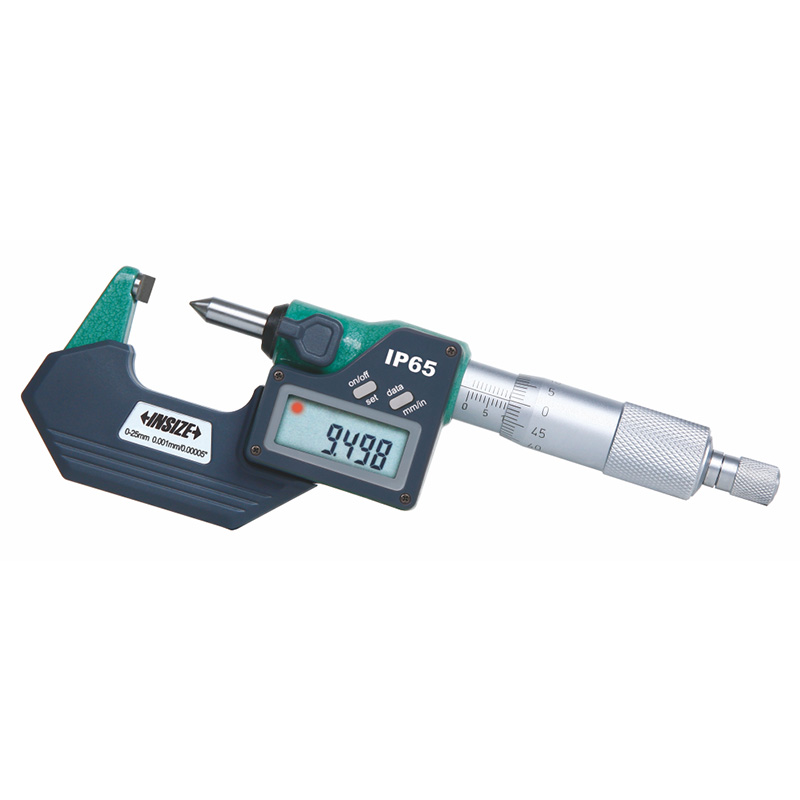

数显压接高度千分尺
Code: 3566
符合企业标准
用于测量夹钳式压接的高度
分辨率: 0.001mm/0.00005"
防尘/防水等级: IP65
按键: 开/关, 初始值设置, 公/英制转换, 数据输出
数据传输
自动关机
棘轮测力
配标准杆(除0-25mm/0-1"外)
电源:
| Code | Range | Accuracy | Resolution | Type | Data output |
|---|---|---|---|---|---|
| 3566-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3566-25CA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | C | with data interface |
| 3566-50CA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | C | with data interface |
| 3566-75CA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | C | with data interface |
| 3566-100CA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | C | with data interface |
| 3566-25DA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | D | with data interface |
| 3566-25BAWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | B | with data interface |
| 3566-25CAWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | C | with data interface |
| 3566-50CAWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | C | with data interface |
| 3566-75CAWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | C | with data interface |
| 3566-100CAWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | C | with data interface |
| 3566-25DAWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | D | with data interface |
