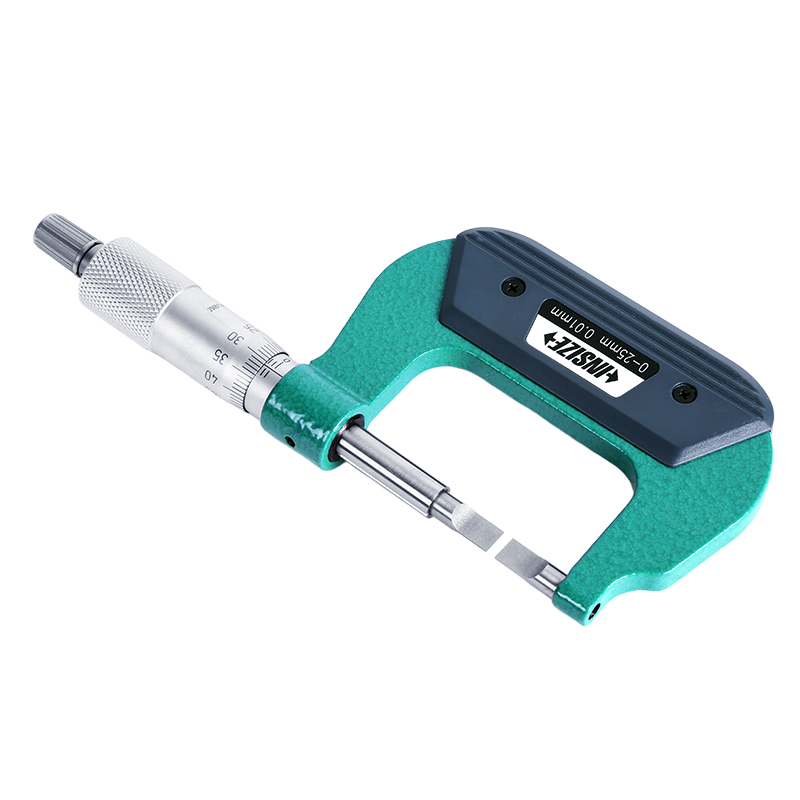

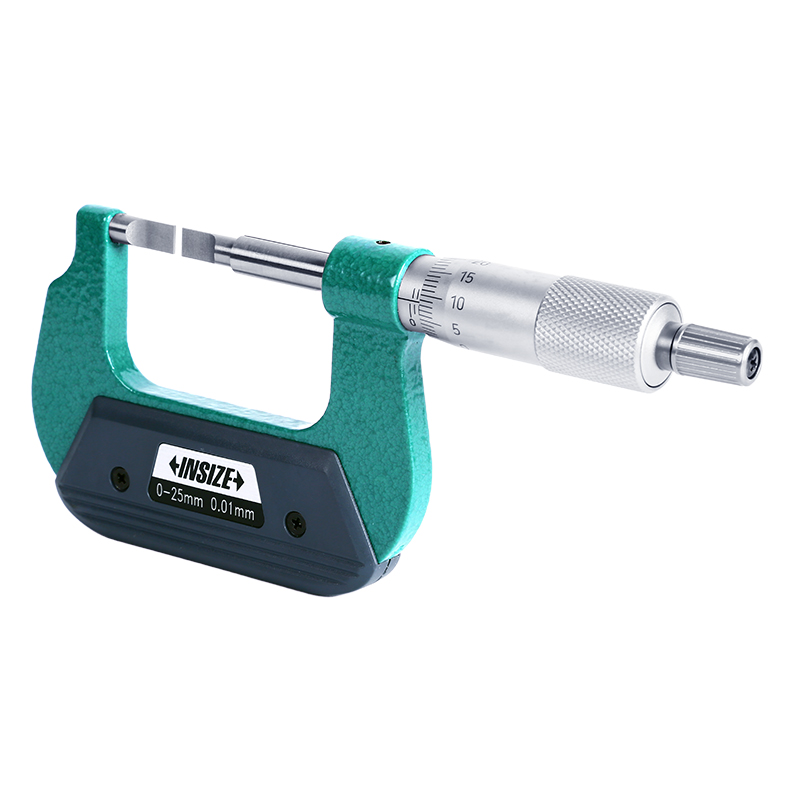

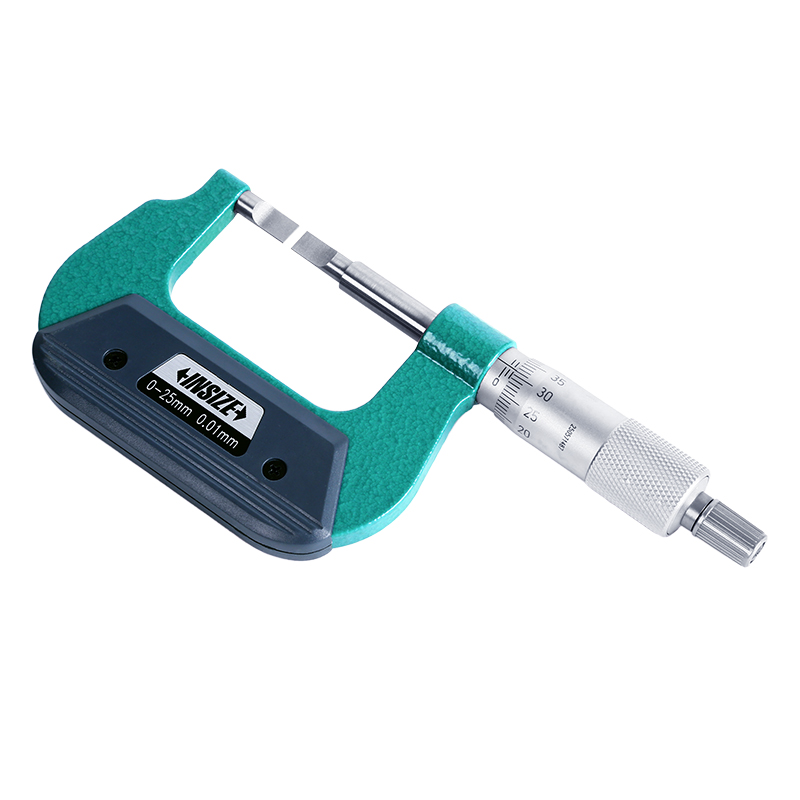

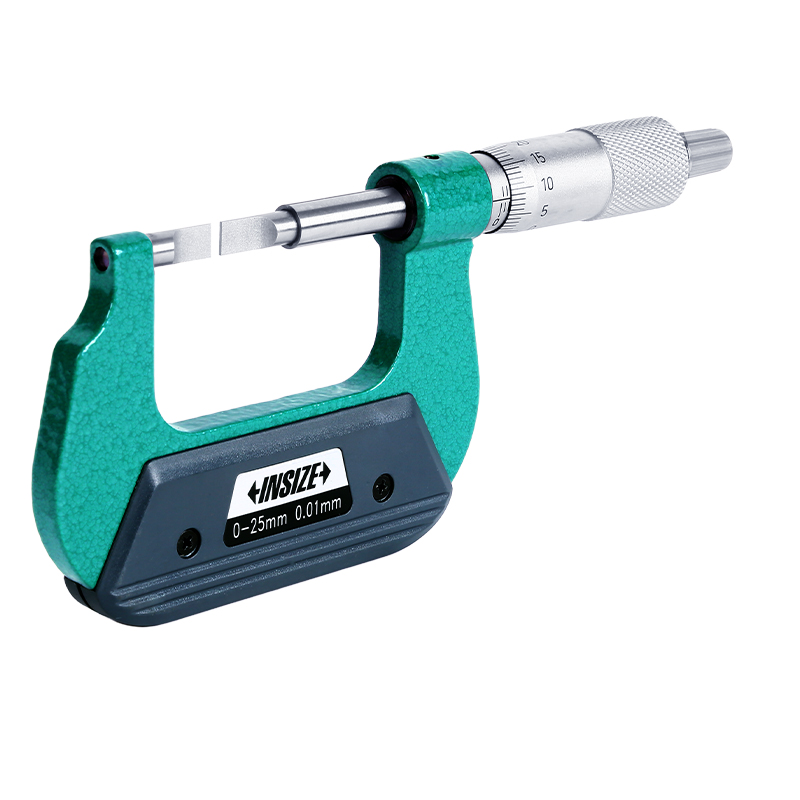

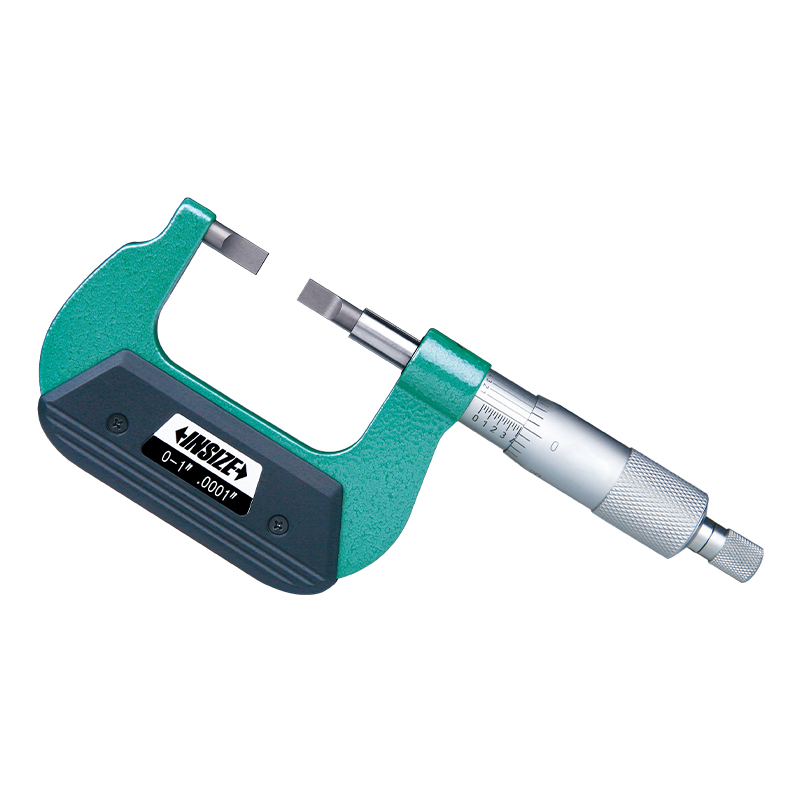

直进式薄片千分尺
型号: 3232
符合JJG外径千分尺国家计量检定规程
用于测量狭窄凹槽的直径等
分度值: 0.01mm
直进式, 测头不旋转
棘轮测力
配标准杆(除0-25mm外)
| 型号 | 测量范围 | 精度 | 类型 | 分度值 |
|---|---|---|---|---|
| 3232-25AC | 0-25mm | 4μm | A | 0.01mm |
| 3232-50AC | 25-50mm | 4μm | A | 0.01mm |
| 3232-75AC | 50-75mm | 5μm | A | 0.01mm |
| 3232-100AC | 75-100mm | 5μm | A | 0.01mm |
| 3232-125AC | 100-125mm | 6μm | A | 0.01mm |
| 3232-150AC | 125-150mm | 6μm | A | 0.01mm |
| 3232-175AC | 150-175mm | 7μm | A | 0.01mm |
| 3232-200AC | 175-200mm | 7μm | A | 0.01mm |
| 3232-225AC | 200-225mm | 8μm | A | 0.01mm |
| 3232-250AC | 225-250mm | 8μm | A | 0.01mm |
| 3232-275AC | 250-275mm | 9μm | A | 0.01mm |
| 3232-300AC | 275-300mm | 9μm | A | 0.01mm |
| 3232-25BAC | 0-25mm | 4μm | B | 0.01mm |
| 3232-50BAC | 25-50mm | 4μm | B | 0.01mm |
| 3232-75BAC | 50-75mm | 5μm | B | 0.01mm |
| 3232-100BAC | 75-100mm | 5μm | B | 0.01mm |
| 3232-125BAC | 100-125mm | 6μm | B | 0.01mm |
| 3232-150BAC | 125-150mm | 6μm | B | 0.01mm |
| 3232-175BAC | 150-175mm | 7μm | B | 0.01mm |
| 3232-200BAC | 175-200mm | 7μm | B | 0.01mm |
| 3232-225BAC | 200-225mm | 8μm | B | 0.01mm |
| 3232-250BAC | 225-250mm | 8μm | B | 0.01mm |
| 3232-275BAC | 250-275mm | 9μm | B | 0.01mm |
| 3232-300BAC | 275-300mm | 9μm | B | 0.01mm |
