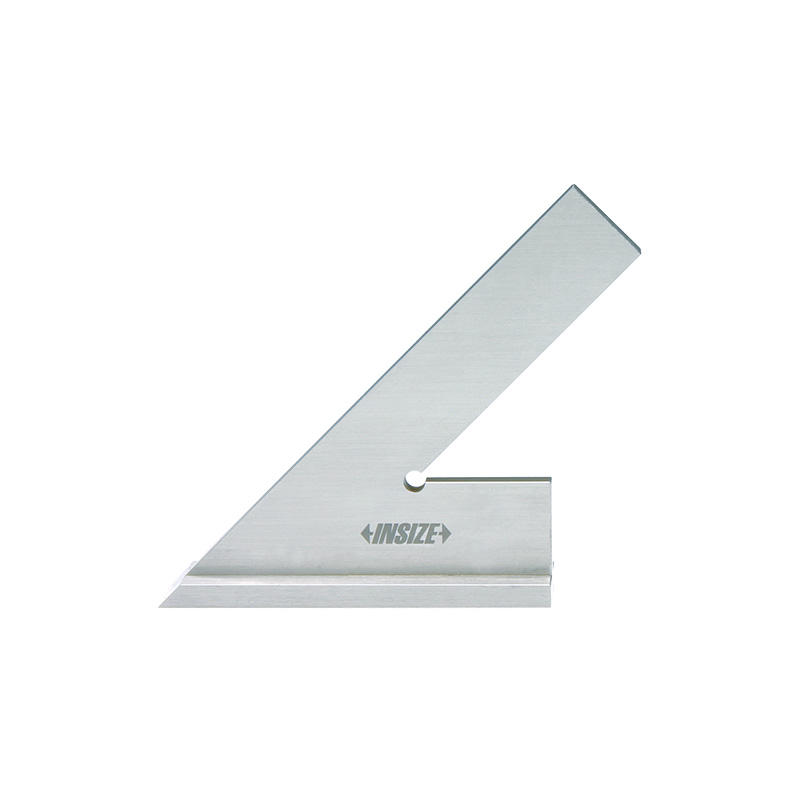

$45^{\circ}$ 带座角尺
Code: 4747
符合企业标准
不锈钢尺身, 不淬火

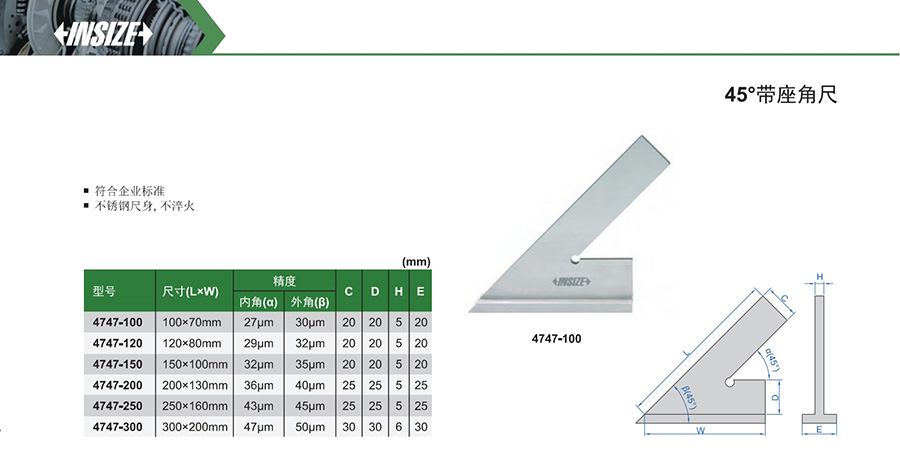

| Code | Accuracy Inside (α) | Accuracy Outside (β) | Size |
|---|---|---|---|
| 4747-100 | 27µm | 30µm | 100x70mm |
| 4747-120 | 29µm | 32µm | 120x80mm |
| 4747-150 | 32µm | 35µm | 150x100mm |
| 4747-200 | 36µm | 40µm | 200x130mm |
| 4747-250 | 43µm | 45µm | 250x160mm |
| 4747-300 | 47µm | 50µm | 300x200mm |
View the complete
product specifications
