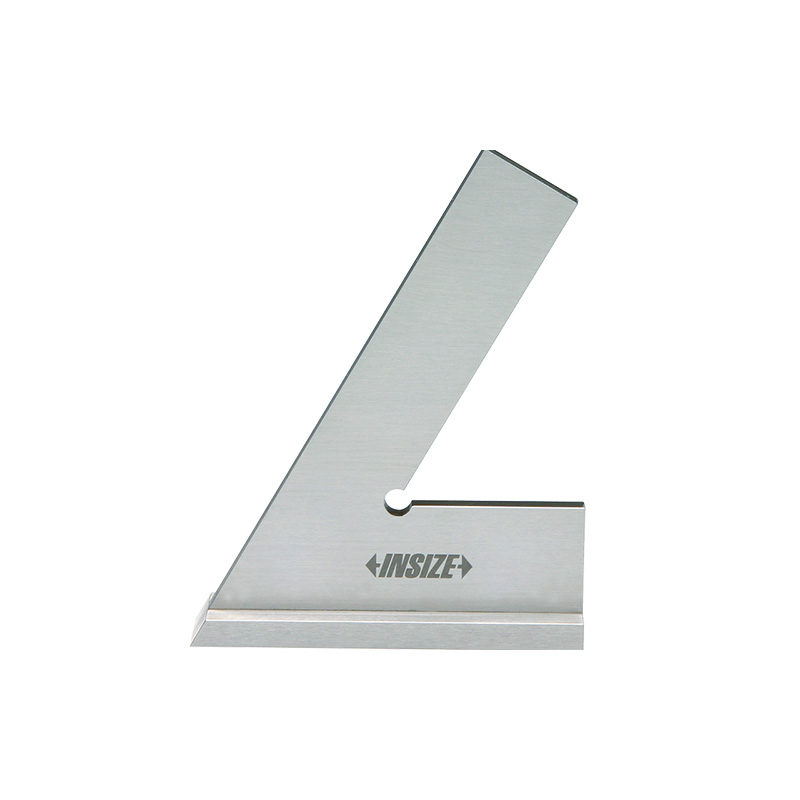

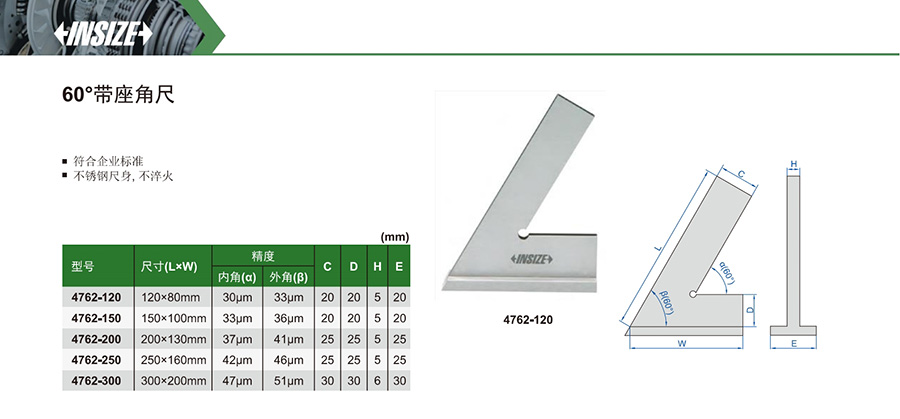

$60^{\circ}$ 带座角尺
Code: 4762
符合企业标准
不锈钢尺身, 不淬火
| Code | Accuracy Inside (α) | Accuracy Outside (β) | Size |
|---|---|---|---|
| 4762-120 | 30µm | 33µm | 120x80mm |
| 4762-150 | 33µm | 36µm | 150x100mm |
| 4762-200 | 37µm | 41µm | 200x130mm |
| 4762-250 | 42µm | 46µm | 250x160mm |
| 4762-300 | 47µm | 51µm | 300x200mm |
