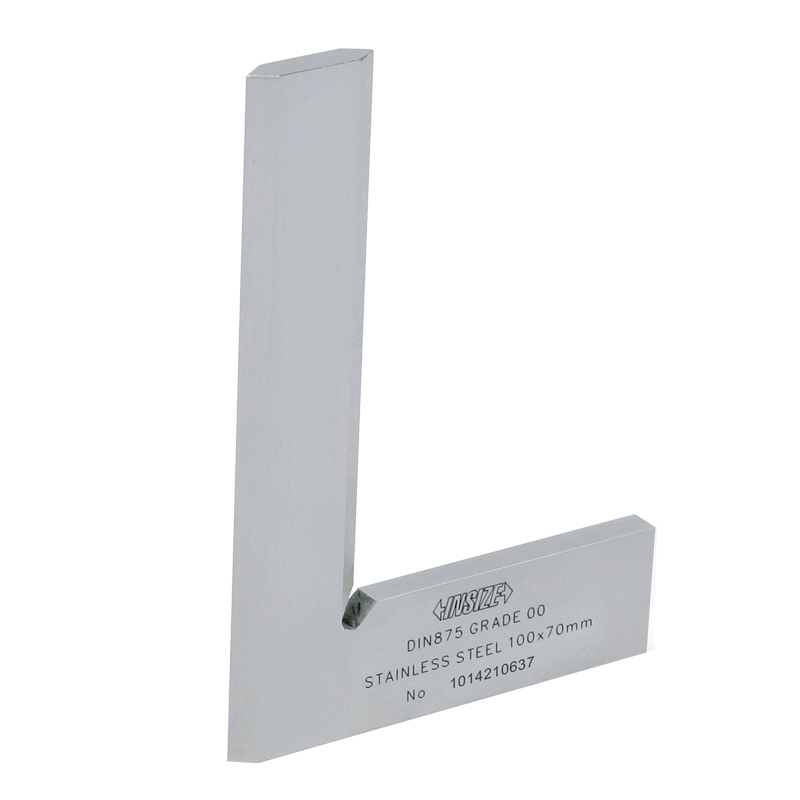

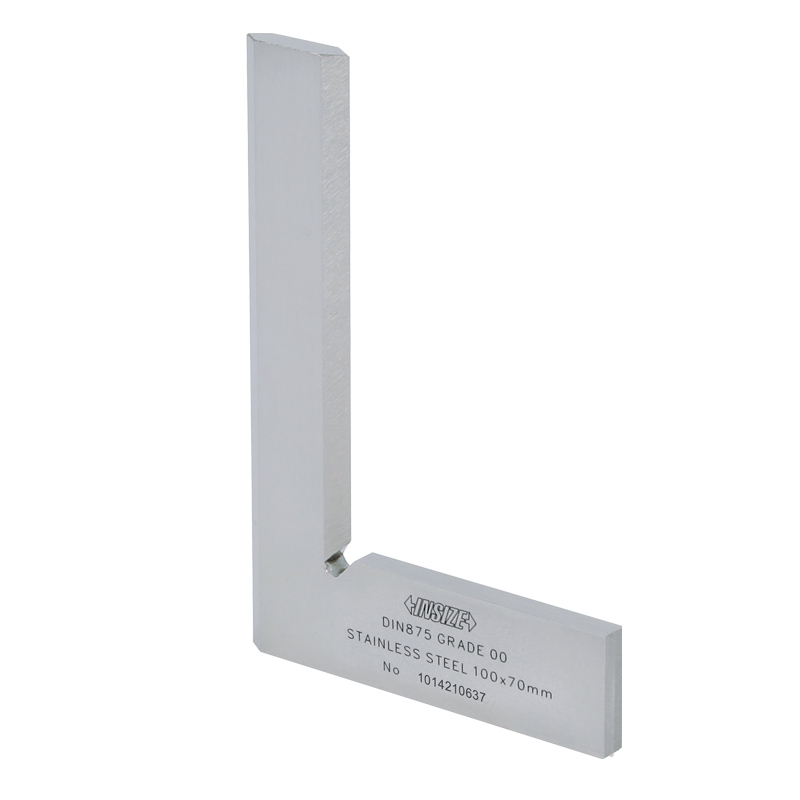

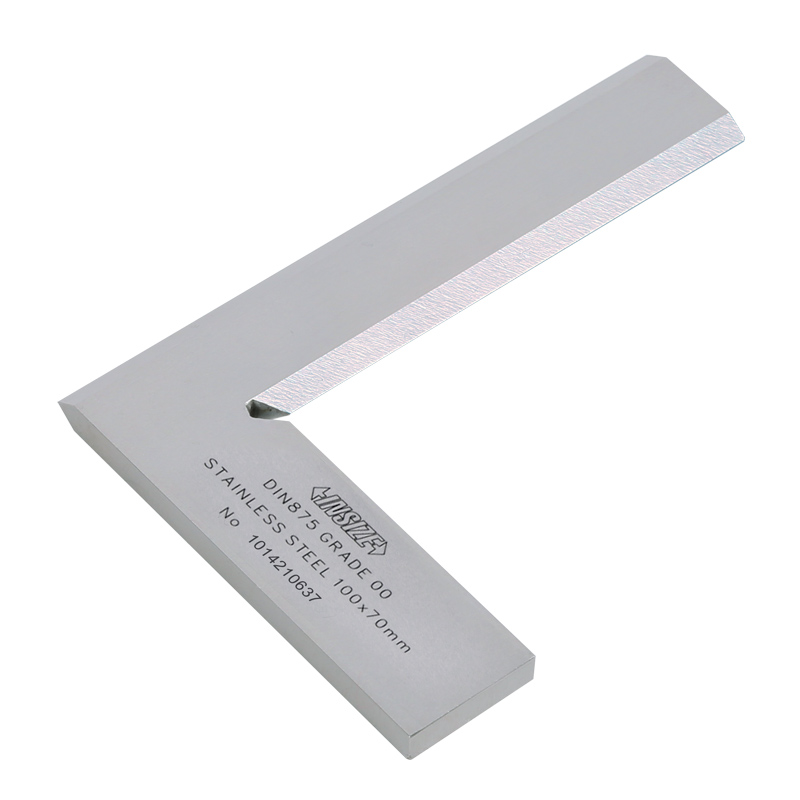

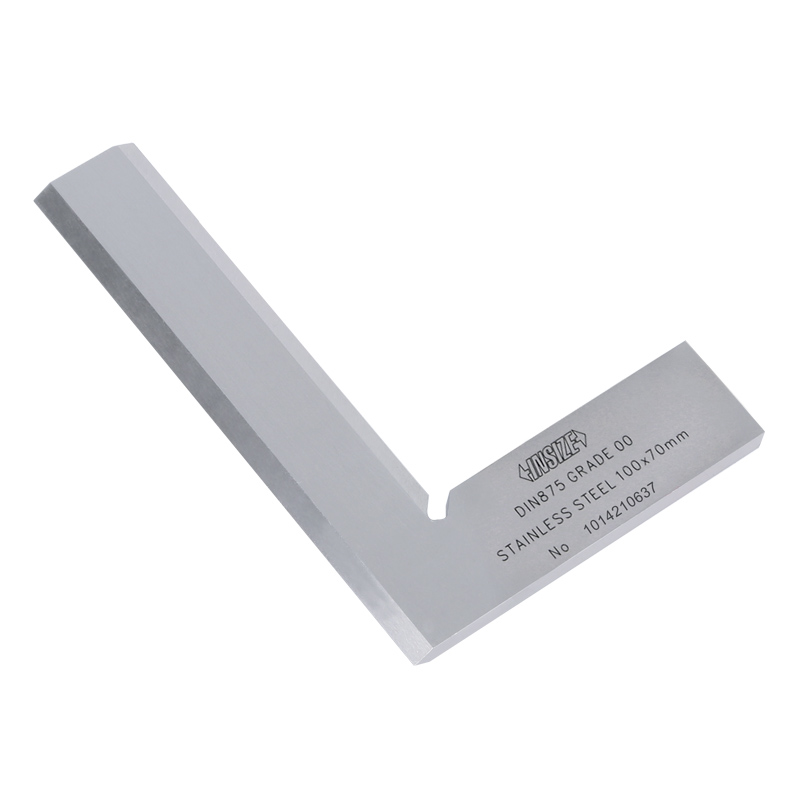

刀口角尺
Code: 4790
刀口内/外测量面
不锈钢尺身, 淬火
表面镀暗铬, 避免反光, 便于观察
| Code | Squareness Inside (α) | Squareness Outside (β) | Size |
|---|---|---|---|
| 4790-050 | 2.4µm | 2.5µm | 50x40mm |
| 4790-075 | 2.6µm | 2.8µm | 75x50mm |
| 4790-0100 | 2.8µm | 3.0µm | 100x70mm |
| 4790-0150 | 3.2µm | 3.5µm | 150x100mm |
| 4790-0200 | 3.7µm | 4.0µm | 200x130mm |
| 4790-0250 | 4.2µm | 4.5µm | 250x165mm |
| 4790-0300 | 4.6µm | 5.0µm | 300x200mm |
| 4790-500 | 6µm | 6µm | 50x40mm |
| 4790-750 | 6µm | 7µm | 75x50mm |
| 4790-1000 | 7µm | 7µm | 100x70mm |
| 4790-1500 | 7µm | 8µm | 150x100mm |
| 4790-2000 | 8µm | 9µm | 200x130mm |
| 4790-2500 | 9µm | 10µm | 250x165mm |
| 4790-3000 | 10µm | 11µm | 300x200mm |
