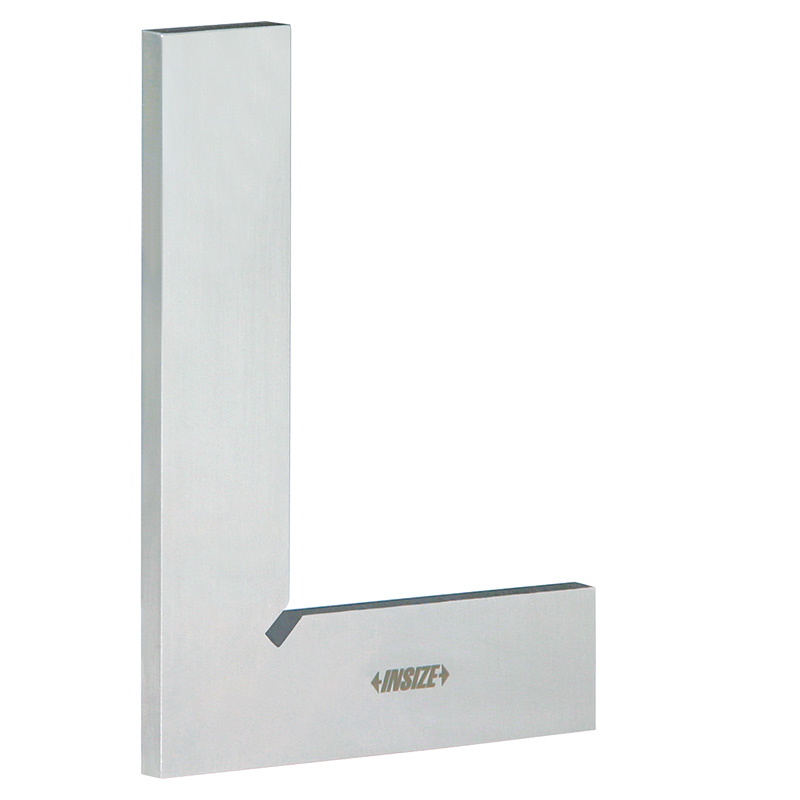

90°Flat Edge Squares
Code: 4791
不锈钢尺身

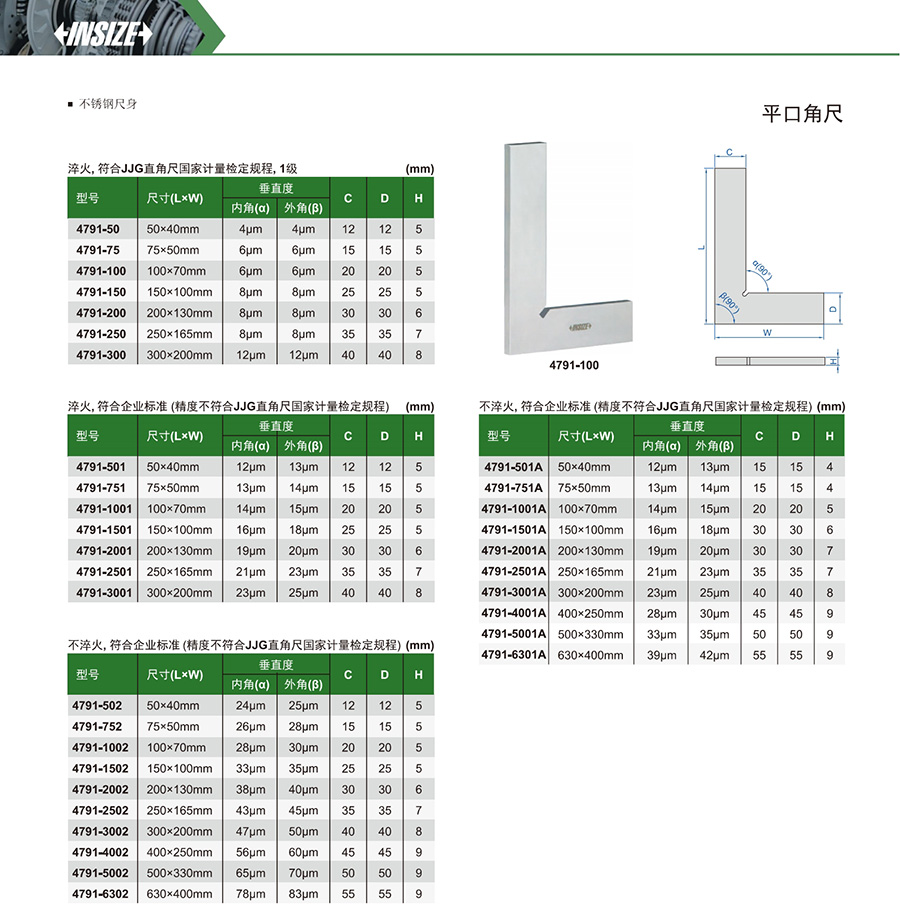

| Code | Squareness Inside (α) | Squareness Outside (β) | Size |
|---|---|---|---|
| 4791-50 | 6µm | 6µm | 50x40mm |
| 4791-75 | 6µm | 7µm | 75x50mm |
| 4791-100 | 7µm | 7µm | 100x70mm |
| 4791-150 | 7µm | 8µm | 150x100mm |
| 4791-200 | 8µm | 9µm | 200x130mm |
| 4791-250 | 9µm | 10µm | 250x165mm |
| 4791-300 | 10µm | 11µm | 300x200mm |
| 4791-501 | 12µm | 13µm | 50x40mm |
| 4791-751 | 13µm | 14µm | 75x50mm |
| 4791-1001 | 14µm | 15µm | 100x70mm |
| 4791-1501 | 16µm | 18µm | 150x100mm |
| 4791-2001 | 19µm | 20µm | 200x130mm |
| 4791-2501 | 21μm | 23μm | 250x165mm |
| 4791-3001 | 23μm | 25μm | 300x200mm |
| 4791-501A | 12µm | 13µm | 50x40mm |
| 4791-751A | 13µm | 14µm | 75x50mm |
| 4791-1001A | 14µm | 15µm | 100x70mm |
| 4791-1501A | 16µm | 18µm | 150x100mm |
| 4791-2001A | 19µm | 20µm | 200x130mm |
| 4791-2501A | 21μm | 23μm | 250x165mm |
| 4791-3001A | 23μm | 25μm | 300x200mm |
| 4791-4001A | 28µm | 30µm | 400x250mm |
| 4791-5001A | 33μm | 35μm | 500x330mm |
| 4791-6301A | 39μm | 42μm | 630x400mm |
| 4791-502 | 24μm | 25μm | 50x40mm |
| 4791-752 | 26μm | 28μm | 75x50mm |
| 4791-1002 | 28μm | 30μm | 100x70mm |
| 4791-1502 | 33μm | 35μm | 150x100mm |
| 4791-2002 | 38μm | 40μm | 200x130mm |
| 4791-2502 | 43μm | 45μm | 250x165mm |
| 4791-3002 | 47μm | 50μm | 300x200mm |
| 4791-4002 | 56µm | 60µm | 400x250mm |
| 4791-5002 | 65μm | 70μm | 500x330mm |
| 4791-6302 | 78μm | 83μm | 630x400mm |
