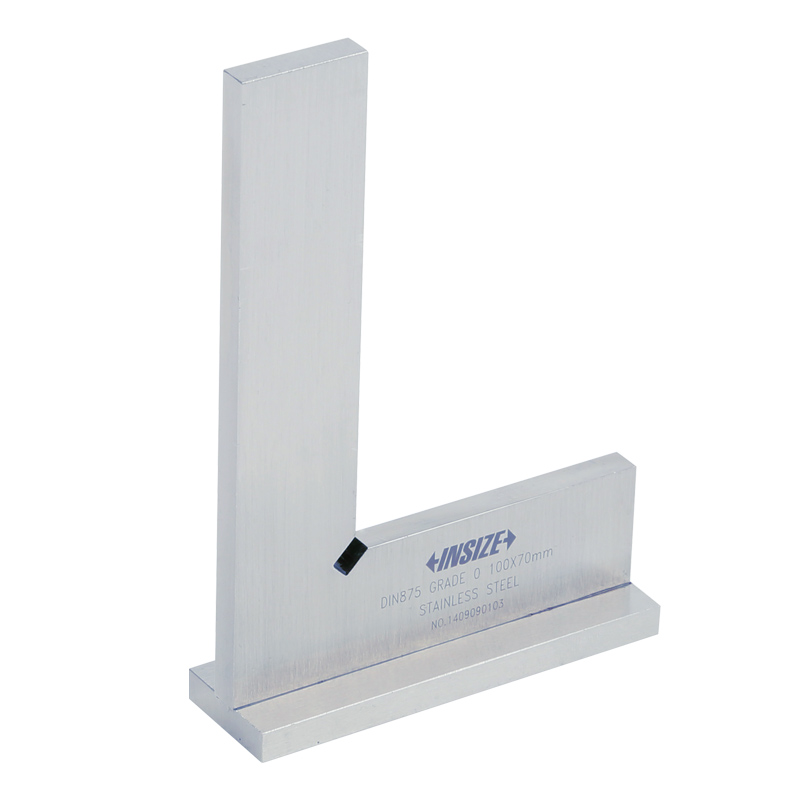

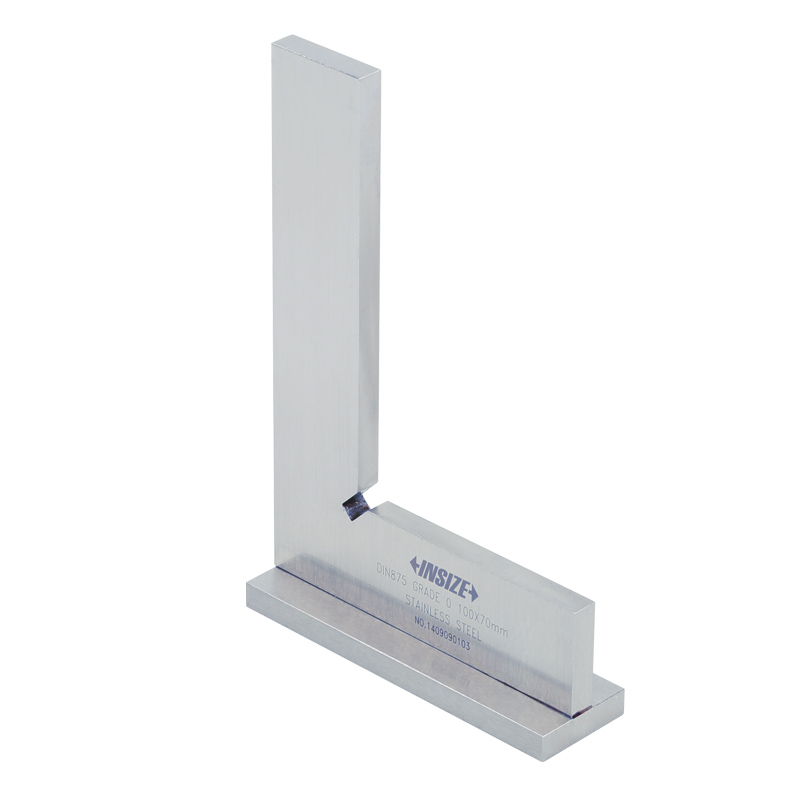

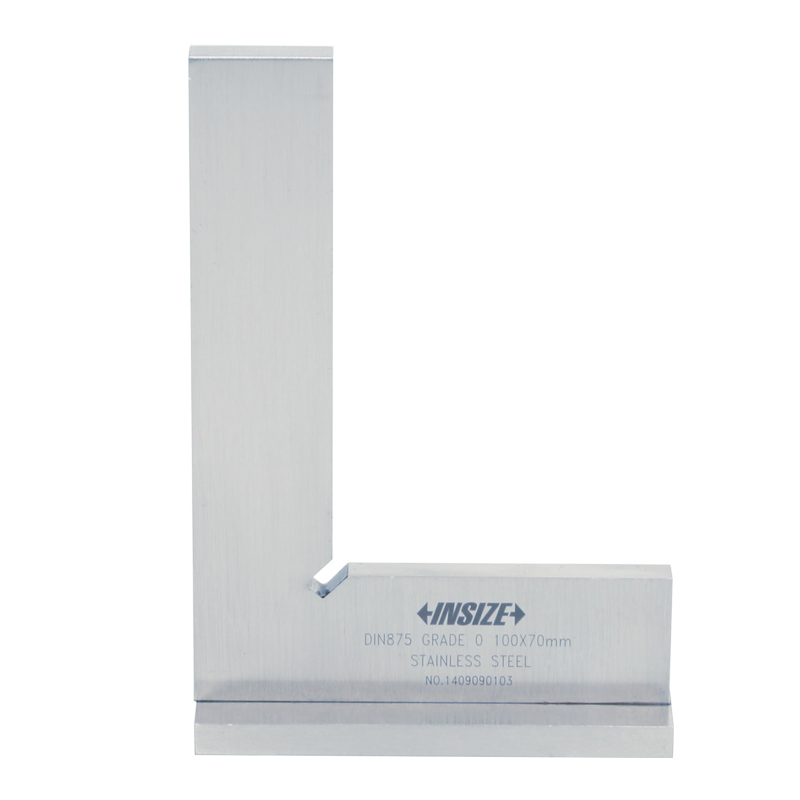

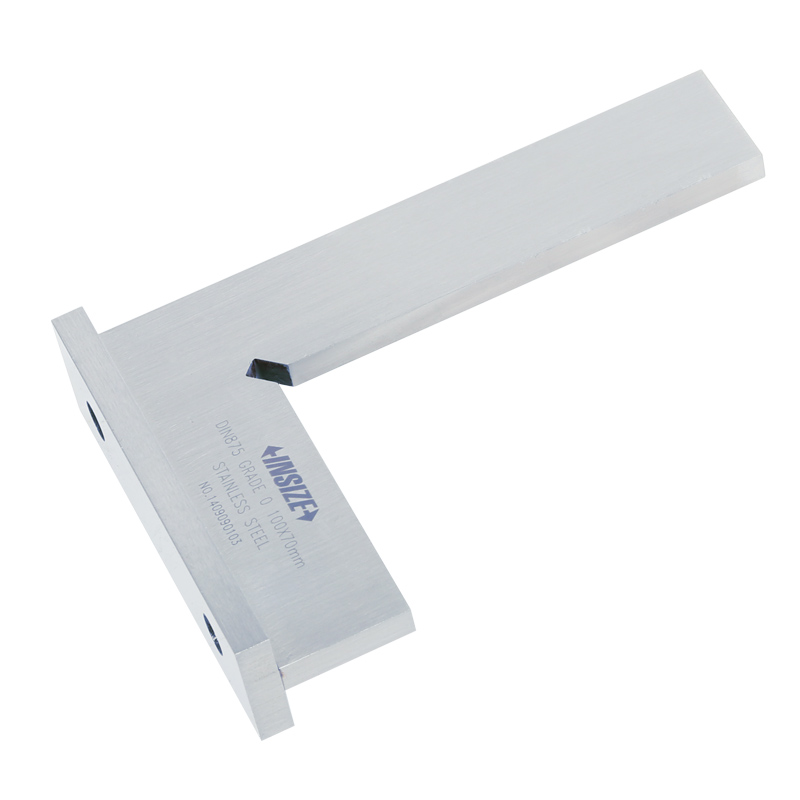

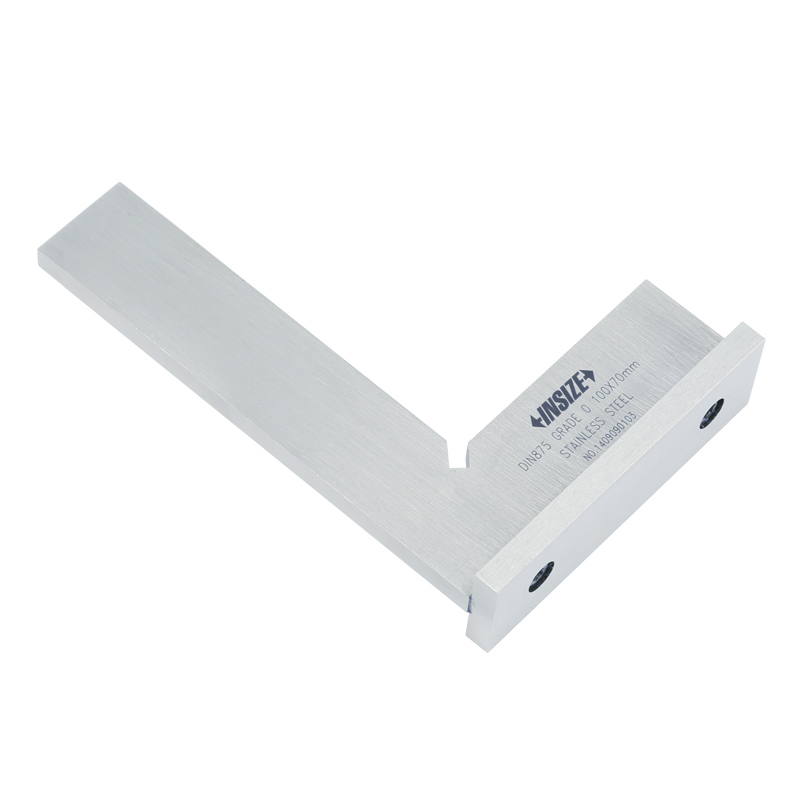

平口带座角尺
Code: 4793
不锈钢尺身, 淬火

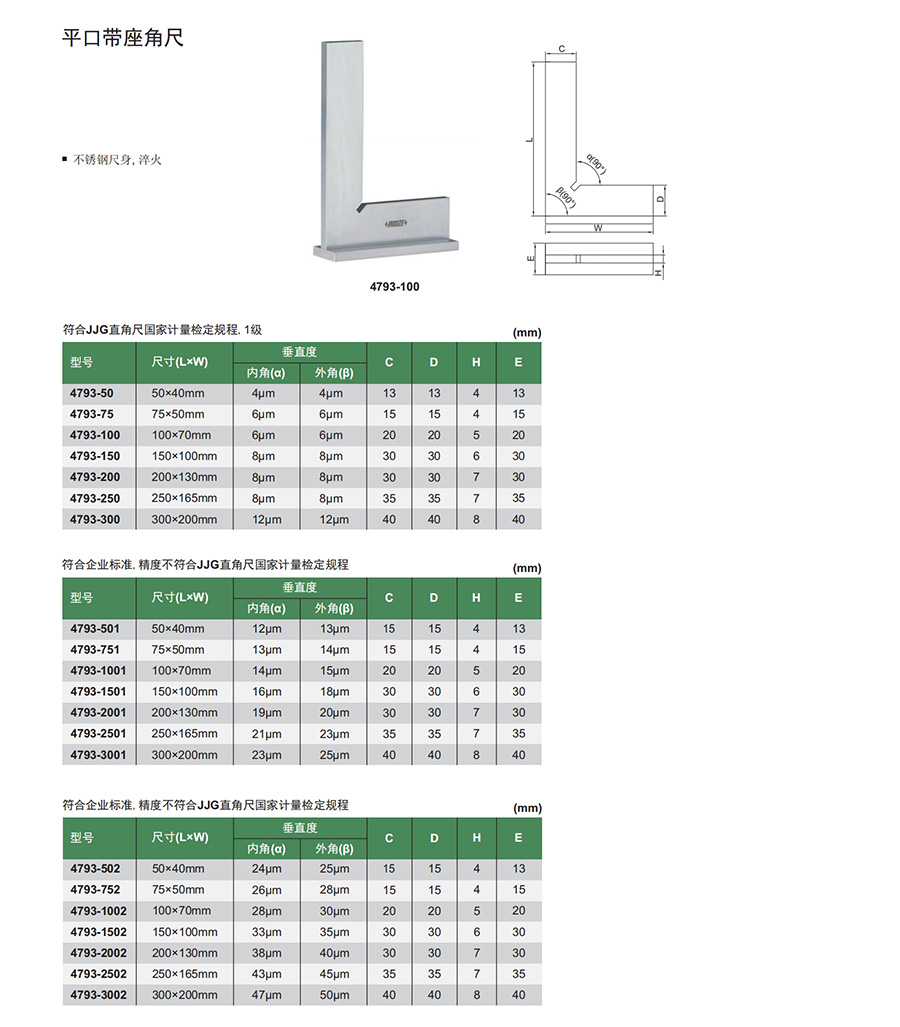

| Code | Squareness Inside (α) | Squareness Outside (β) | Size |
|---|---|---|---|
| 4793-50 | 6µm | 6µm | 50x40mm |
| 4793-75 | 6µm | 7µm | 75x50mm |
| 4793-100 | 7µm | 7µm | 100x70mm |
| 4793-150 | 7µm | 8µm | 150x100mm |
| 4793-200 | 8µm | 9µm | 200x130mm |
| 4793-250 | 9µm | 10µm | 250x165mm |
| 4793-300 | 10µm | 11µm | 300x200mm |
| 4793-501 | 12μm | 13μm | 50x40mm |
| 4793-751 | 13μm | 14μm | 75x50mm |
| 4793-1001 | 14μm | 15μm | 100x70mm |
| 4793-1501 | 16μm | 18μm | 150x100mm |
| 4793-2001 | 19μm | 20μm | 200x130mm |
| 4793-2501 | 21μm | 23μm | 250x165mm |
| 4793-3001 | 23μm | 25μm | 300x200mm |
| 4793-502 | 24μm | 25μm | 50x40mm |
| 4793-752 | 26μm | 28μm | 75x50mm |
| 4793-1002 | 28μm | 30μm | 100x70mm |
| 4793-1502 | 33μm | 35μm | 150x100mm |
| 4793-2002 | 38μm | 40μm | 200x130mm |
| 4793-2502 | 43μm | 45μm | 250x165mm |
| 4793-3002 | 47μm | 50μm | 300x200mm |
