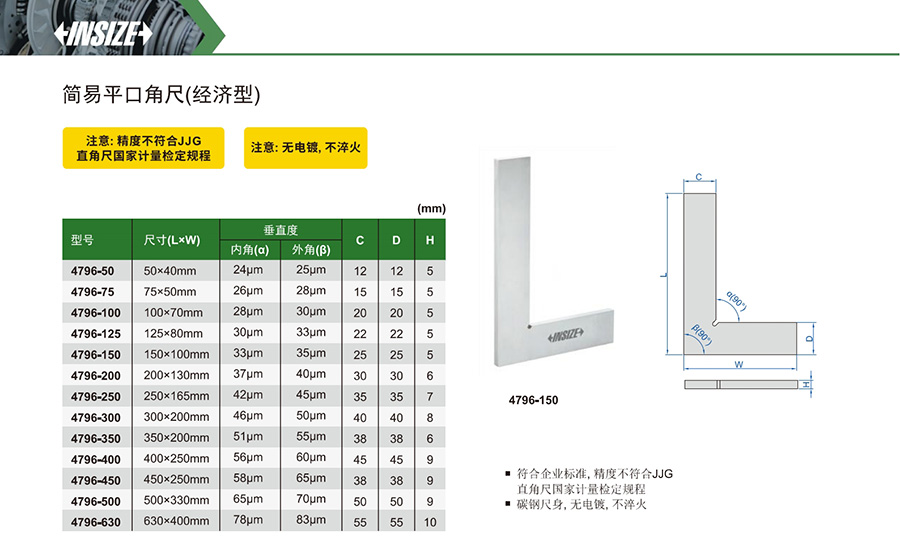

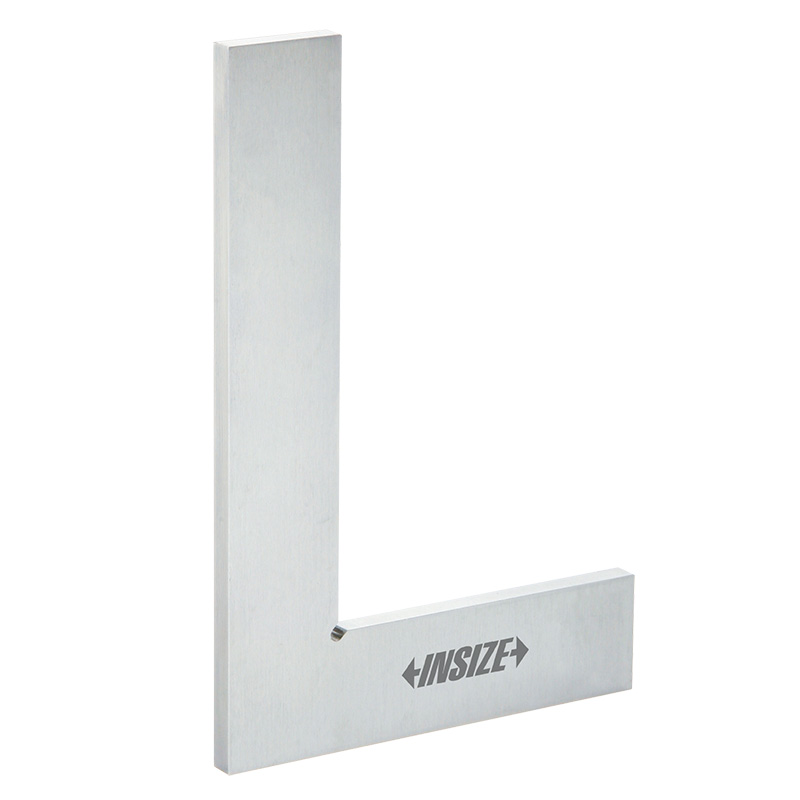

简易平口角尺(经济型)
Code: 4796
符合企业标准, 精度不符合JJG 直角尺国家计量检定规程
碳钢尺身, 无电镀, 不淬火
| Code | Squareness Inside (α) | Squareness Outside (β) | Size |
|---|---|---|---|
| 4796-50 | 24μm | 25μm | 50×40mm |
| 4796-75 | 26μm | 28μm | 75×50mm |
| 4796-100 | 28μm | 30μm | 100×70mm |
| 4796-125 | 30μm | 33μm | 125×80mm |
| 4796-150 | 33μm | 35μm | 150×100mm |
| 4796-200 | 37μm | 40μm | 200×130mm |
| 4796-250 | 42μm | 45μm | 250×165mm |
| 4796-300 | 46μm | 50μm | 300×200mm |
| 4796-350 | 51μm | 55μm | 350×200mm |
| 4796-400 | 56μm | 60μm | 400×250mm |
| 4796-450 | 58μm | 65μm | 450×250mm |
| 4796-500 | 65μm | 70μm | 500×330mm |
| 4796-630 | 78μm | 83μm | 630×400mm |
