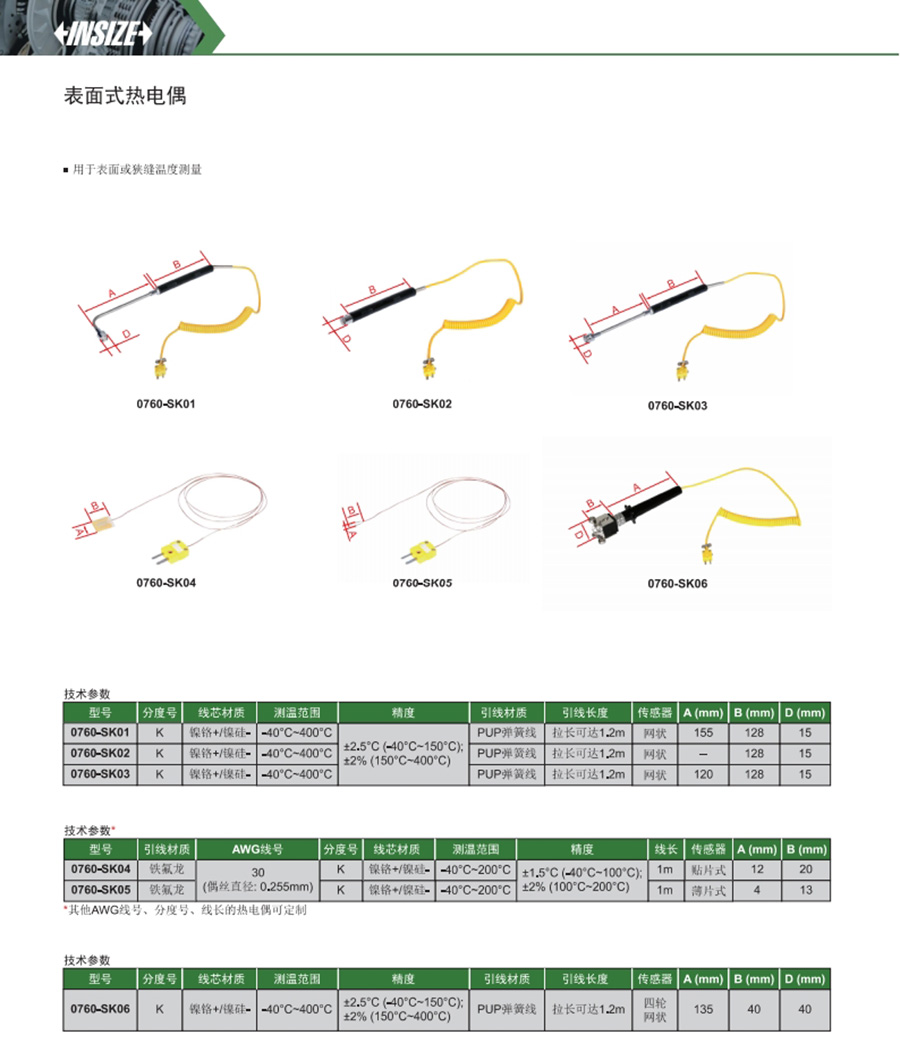

表面式热电偶
Code: 0760-SK Series
用于表面或狭缝温度测量
| Code | Material | Range | Sensor type | Accuracy | Type | Length | Size |
|---|---|---|---|---|---|---|---|

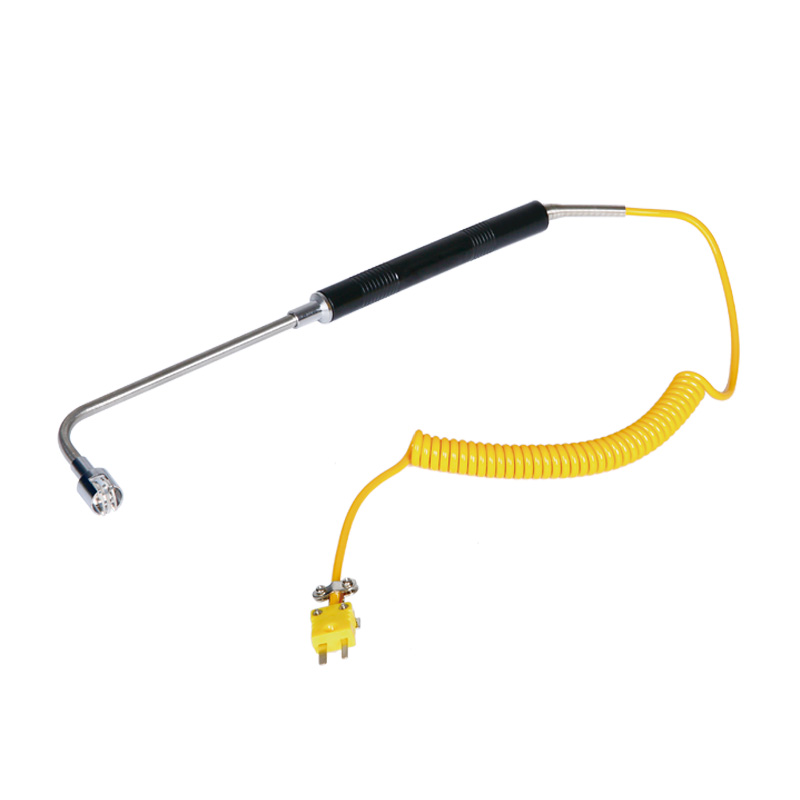

| 0760-SK01 | lead: PUP spring wire | -40°C~400°C | 网状 | ±2.5°C (-40°C~150°C); ±2% (150°C~400°C) | K | lead: tension up to 1.2m | A: 155mm, B: 128mm, D: 15mm |

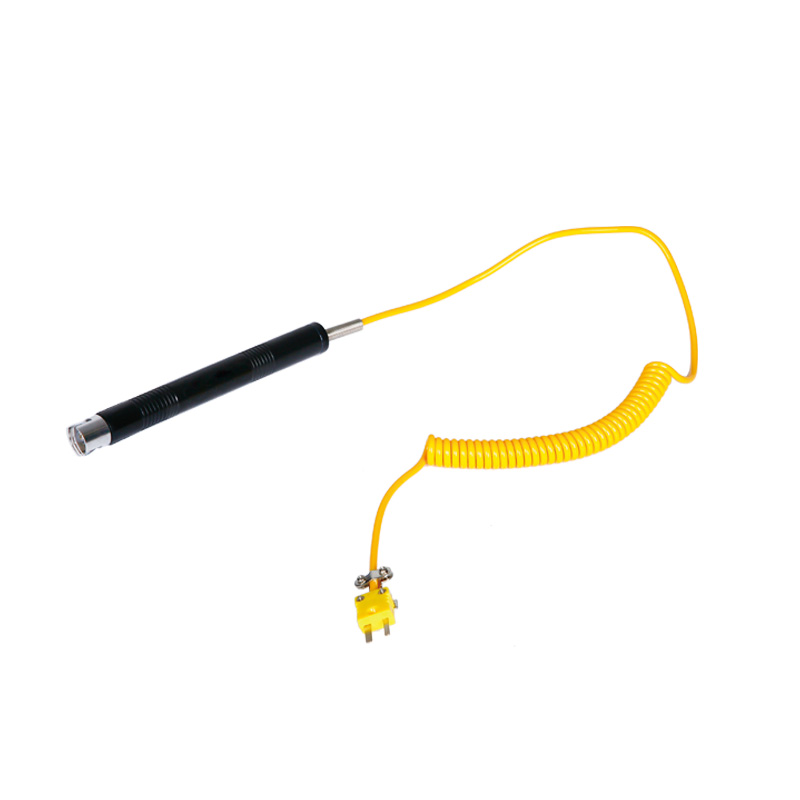

| 0760-SK02 | lead: PUP spring wire | -40°C~400°C | - | PUP弹簧线 | K | lead: tension up to 1.2m | B: 128mm, D: 15mm |

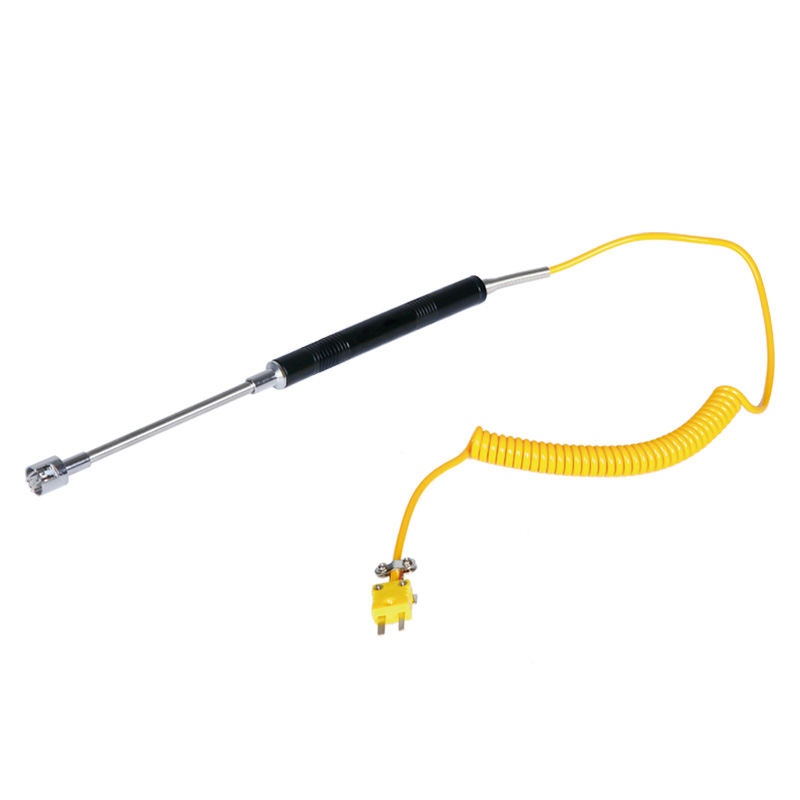

| 0760-SK03 | lead: PUP spring wire | -40°C-400°C | 120 | PUP弹簧线 | K | lead: tension up to 1.2m | A: 120mm, B: 128mm, D: 15mm |

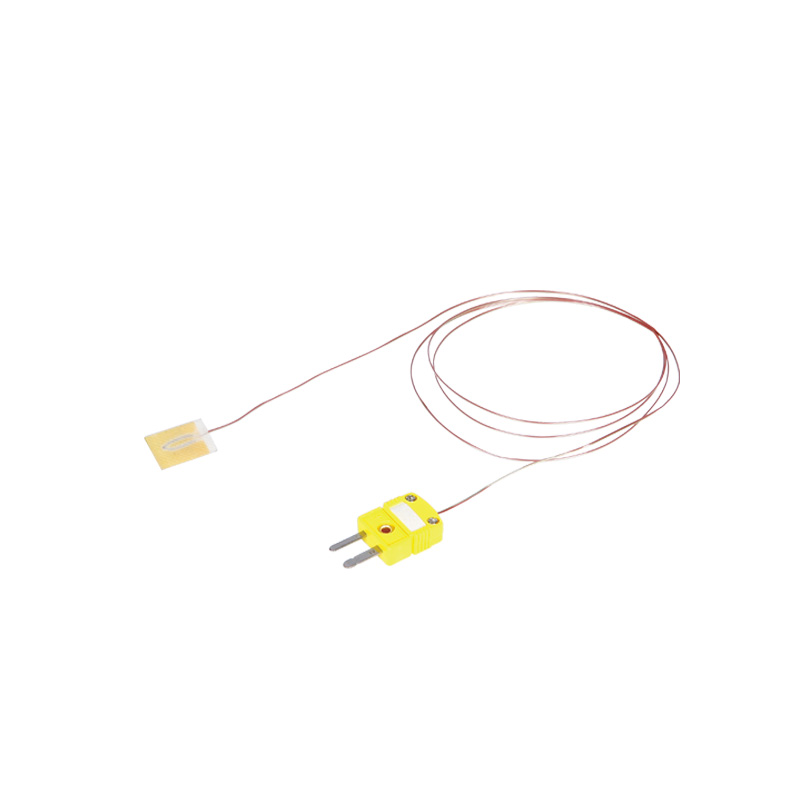

| 0760-SK04 | lead: teflon | -40°C~200°C | 贴片式 | ±1.5°C (-40°C~100°C); ±2% (100°C~200°C) | K | lead: 1m | A: 12mm, B: 20mm |

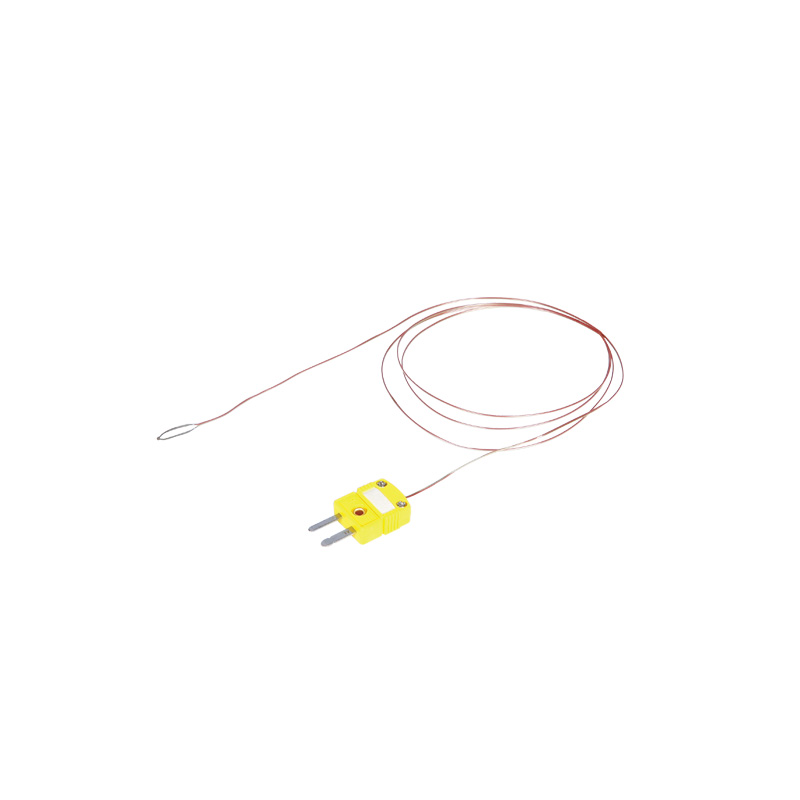

| 0760-SK05 | lead: teflon | -40°C~200°C | 13 | 薄片式 | K | lead: 1m | A: 4mm, B: 13mm |

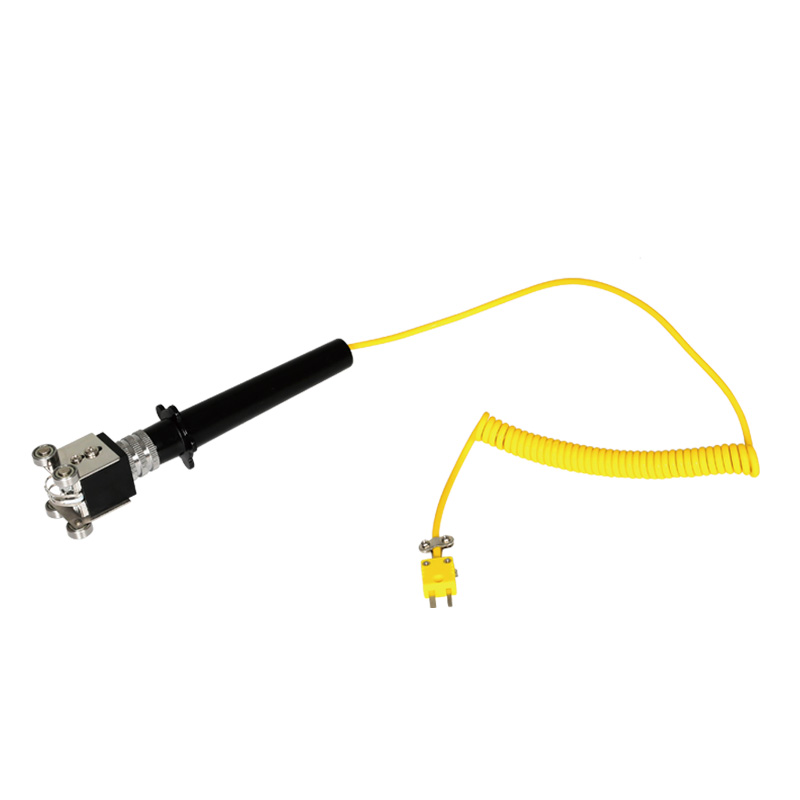

| 0760-SK06 | lead: PUP spring wire | -40°C-400°C | 四轮网状 | ±2.5°C (-40°C~150°C); ±2% (150°C~400°C) | K | lead: tension up to 1.2m | A: 135mm, B: 40mm, D: 40mm |
