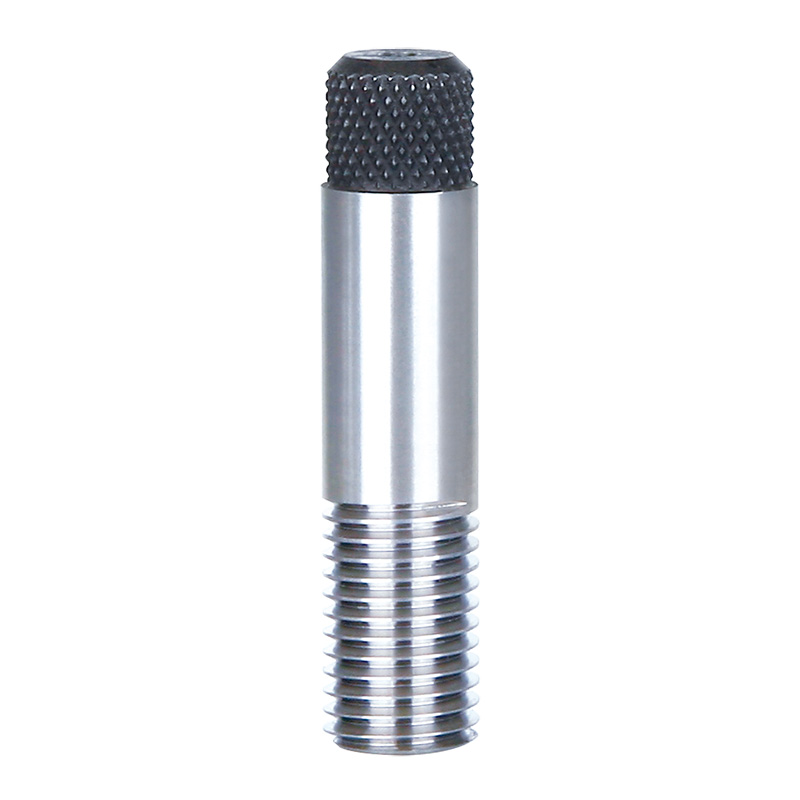

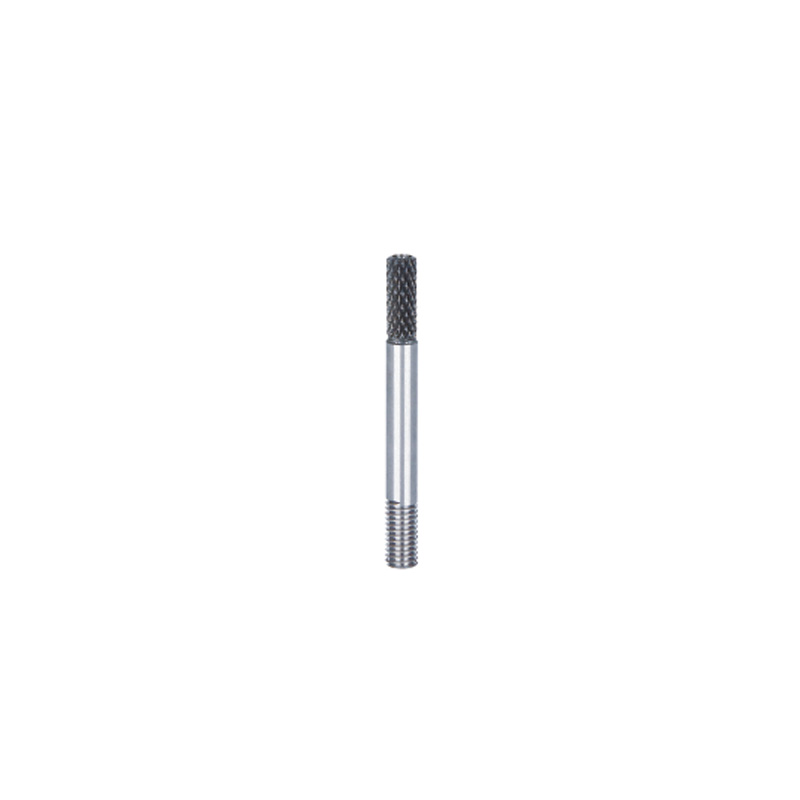

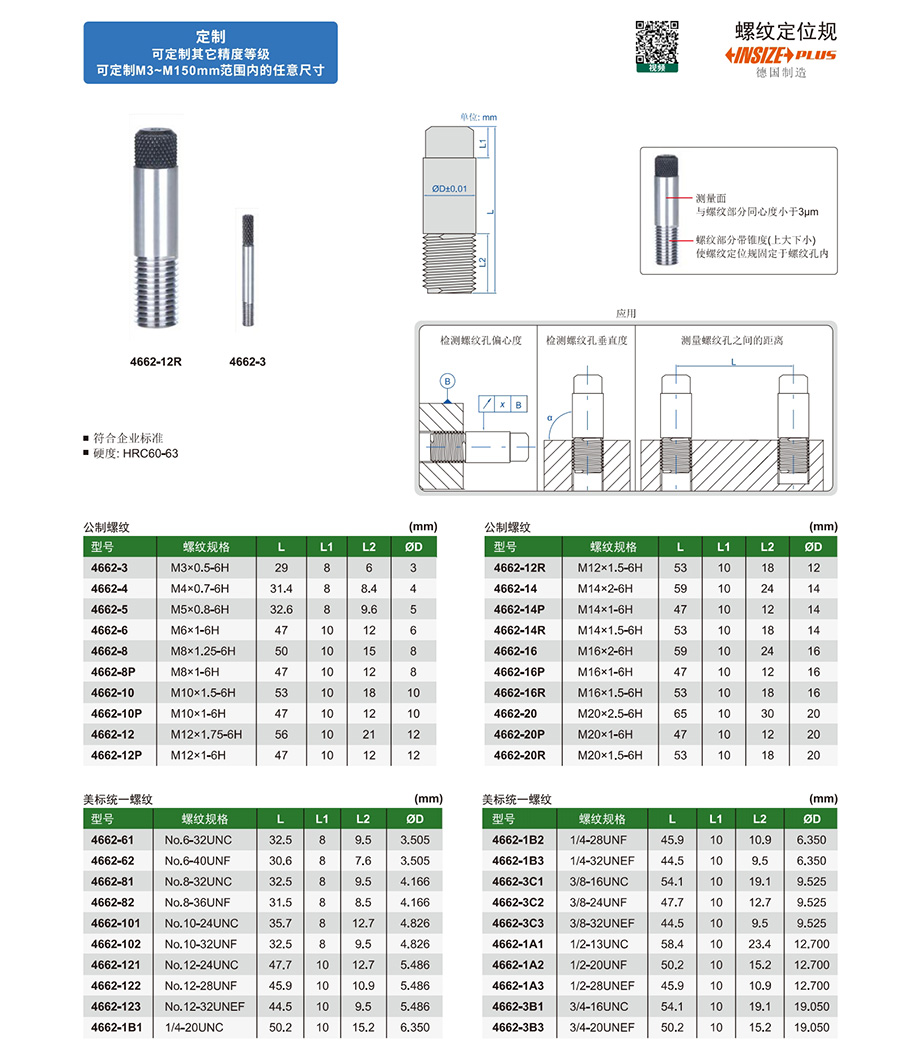

螺纹定位规
型号: 4662
符合企业标准
硬度: HRC60-63
| 型号 | 螺纹规格 |
|---|---|
| 4662-3 | M3×0.5-6H |
| 4662-4 | M4×0.7-6H |
| 4662-5 | M5×0.8-6H |
| 4662-6 | M6×1-6H |
| 4662-8 | M8×1.25-6H |
| 4662-8P | M8×1-6H |
| 4662-10 | M10×1.5-6H |
| 4662-10P | M10×1-6H |
| 4662-12 | M12×1.75-6H |
| 4662-12P | M12×1-6H |
| 4662-12R | M12×1.5-6H |
| 4662-14 | M14×2-6H |
| 4662-14P | M14×1-6H |
| 4662-14R | M14×1.5-6H |
| 4662-16 | M16×2-6H |
| 4662-16P | M16×1-6H |
| 4662-16R | M16×1.5-6H |
| 4662-20 | M20×2.5-6H |
| 4662-20P | M20×1-6H |
| 4662-20R | M20×1.5-6H |
| 4662-61 | No.6-32UNC |
| 4662-62 | No.6-40UNF |
| 4662-81 | No.8-32UNC |
| 4662-82 | No.8-36UNF |
| 4662-101 | No.10-24UNC |
| 4662-102 | No.10-32UNF |
| 4662-121 | No.12-24UNC |
| 4662-122 | No.12-28UNF |
| 4662-123 | No.12-32UNEF |
| 4662-1B1 | 1/4-20UNC |
| 4662-1B2 | 1/4-28UNF |
| 4662-1B3 | 1/4-32UNEF |
| 4662-3C1 | 3/8-16UNC |
| 4662-3C2 | 3/8-24UNF |
| 4662-3C3 | 3/8-32UNEF |
| 4662-1A1 | 1/2-13UNC |
| 4662-1A2 | 1/2-20UNF |
| 4662-1A3 | 1/2-28UNEF |
| 4662-3B1 | 3/4-16UNC |
| 4662-3B3 | 3/4-20UNEF |
