日期时间 标签 扭力量测值 单位 判定结果

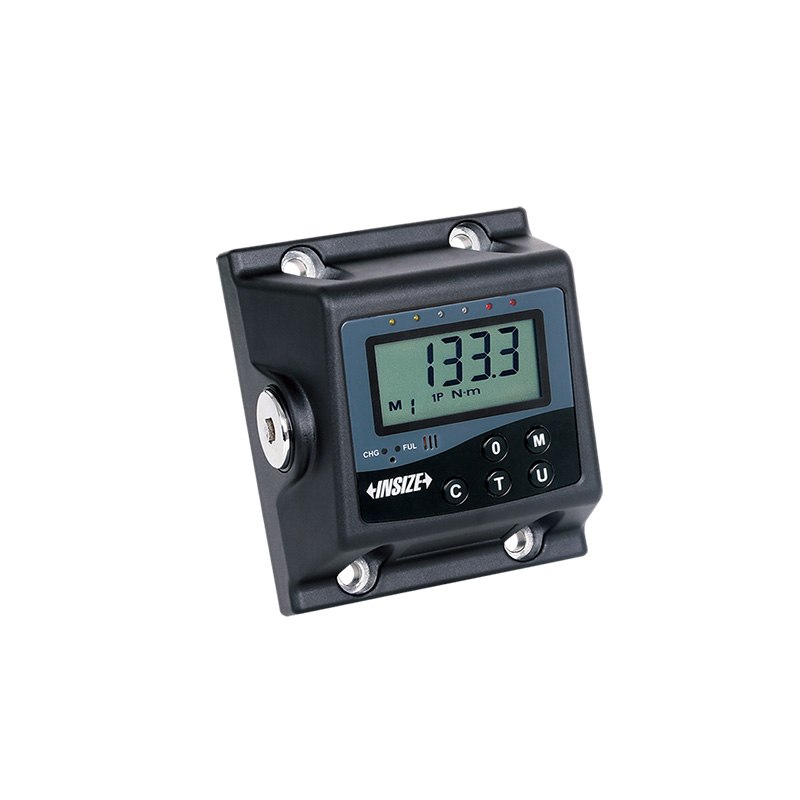

Code: IST-04TT Series
符合JJG扭矩扳子检定仪国家计量检定规程
用于扭矩扳手、扭力螺丝刀或其它扭力工具测试
顺时针操作
最大值显示、跟踪模式和第一峰值三种模式
设定上下限，并判断测试结果
蜂鸣器及LED灯警示目标值:
能实时上传数据、保存数据和导出数据至EXCEL
无操作时, 2分钟自动进入待机状态
带生产厂检验证书
实时数据实时跟踪记录
| Code | Range | Sensor type | Torque testing category | Installation method | With buffer |
|---|---|---|---|---|---|
| IST-04TT5 | 0.5~5N.m | fixed type | static torque | portable installation | no |
| IST-04TT28 | 2.8~28N.m | fixed type | static torque | portable installation | no |
| IST-04TT68 | 6.8~68N.m | fixed type | static torque | portable installation | no |
| IST-04TT350 | 35~350N.m | fixed type | static torque | portable installation | no |
| IST-04TT815 | 81.5~815N.m | fixed type | static torque | portable installation | no |
| IST-04TT1000 | 100~1000N.m | fixed type | static torque | portable installation | no |
| IST-04TT2000 | 200~2000N.m | fixed type | static torque | portable installation | no |
