Torque Wrenches

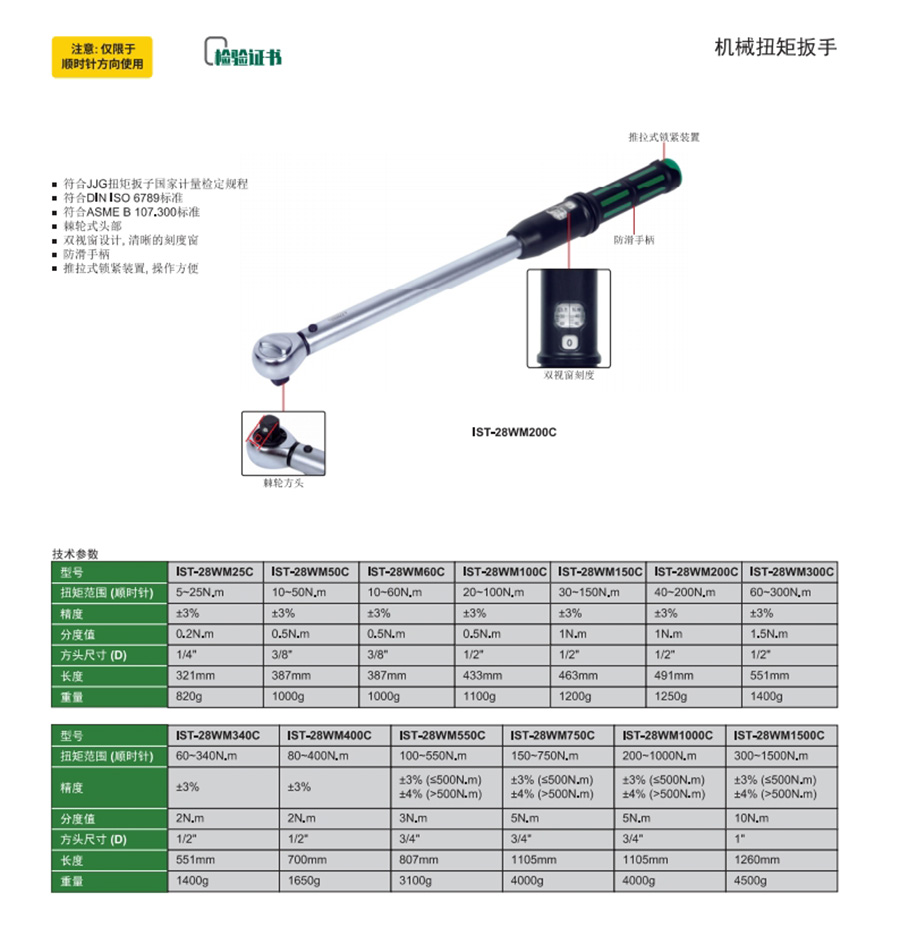

Code: IST-28WM Series
符合JJG扭矩扳子国家计量检定规程
符合DIN ISO 6789标准
符合ASME B 107.300标准
棘轮式头部
双视窗设计, 清晰的刻度窗
防滑手柄
推拉式锁紧装置, 操作方便
| Code | Range | Type | Presentation Format of Values | Head Type |
|---|---|---|---|---|
| IST-28WM25 | 5~25N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM50 | 10~50N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM60 | 10~60N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM100 | 20~100N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM150 | 30~150N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM200 | 40~200N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM300 | 60~300N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM340 | 60~340N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM400 | 80~400N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM550 | 100~550N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM750 | 150~750N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM1000 | 200~1000N.m | mechanical preset | window design | fixed ratchet head |
| IST-28WM1500 | 300~1500N.m | mechanical preset | window design | fixed ratchet head |
View the complete
product specifications
