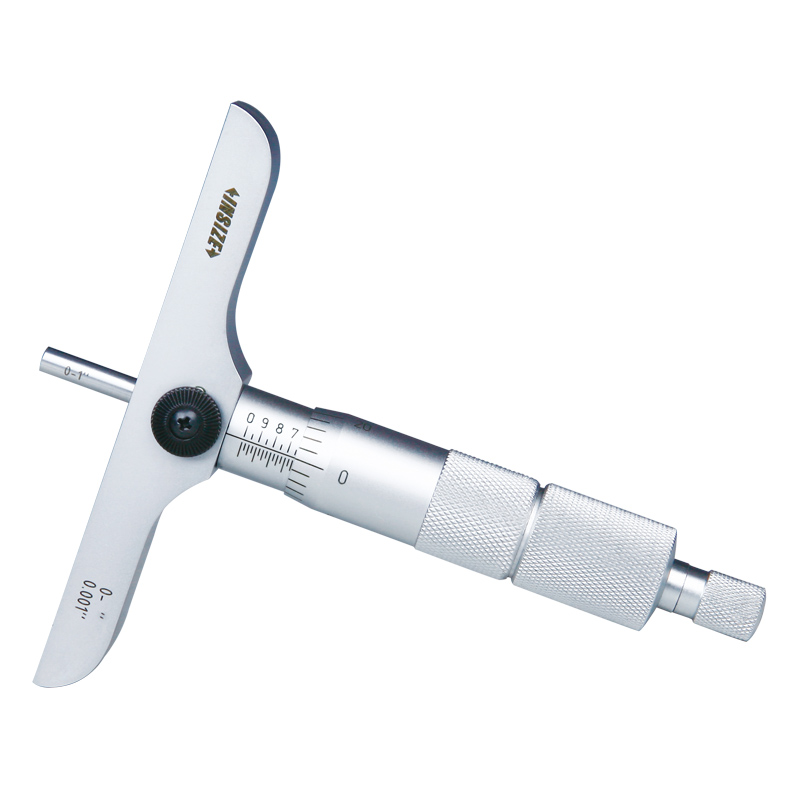

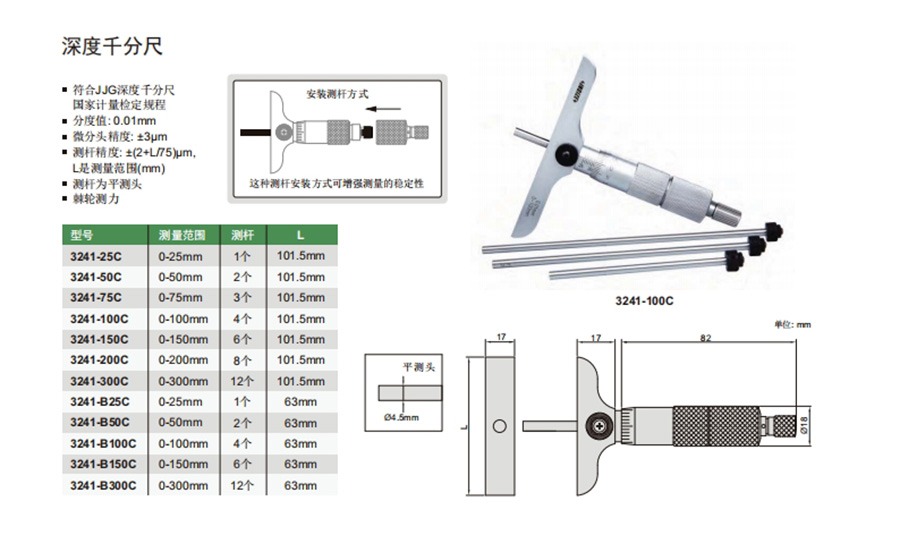

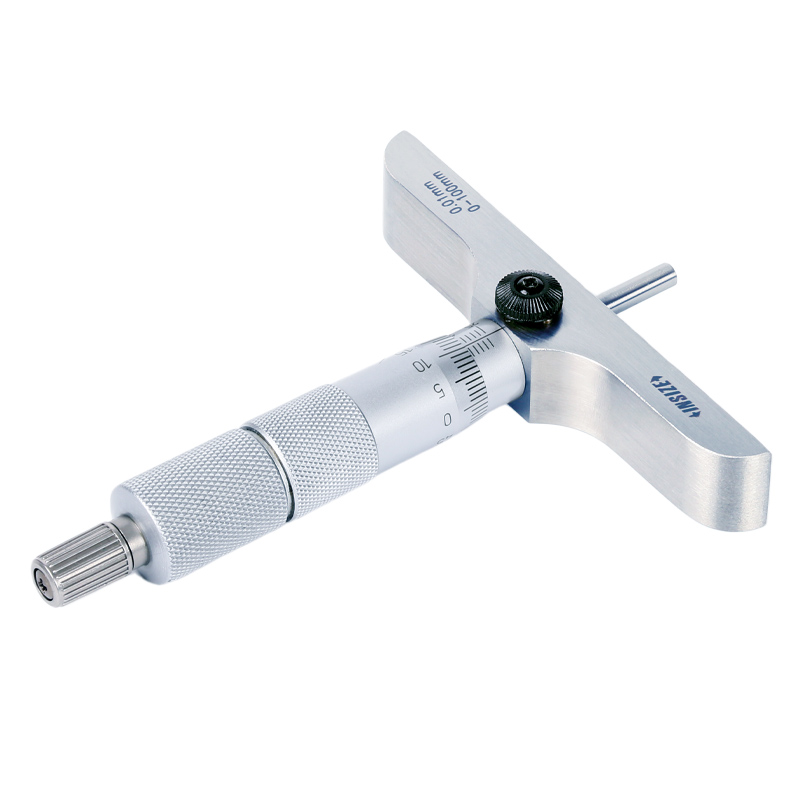

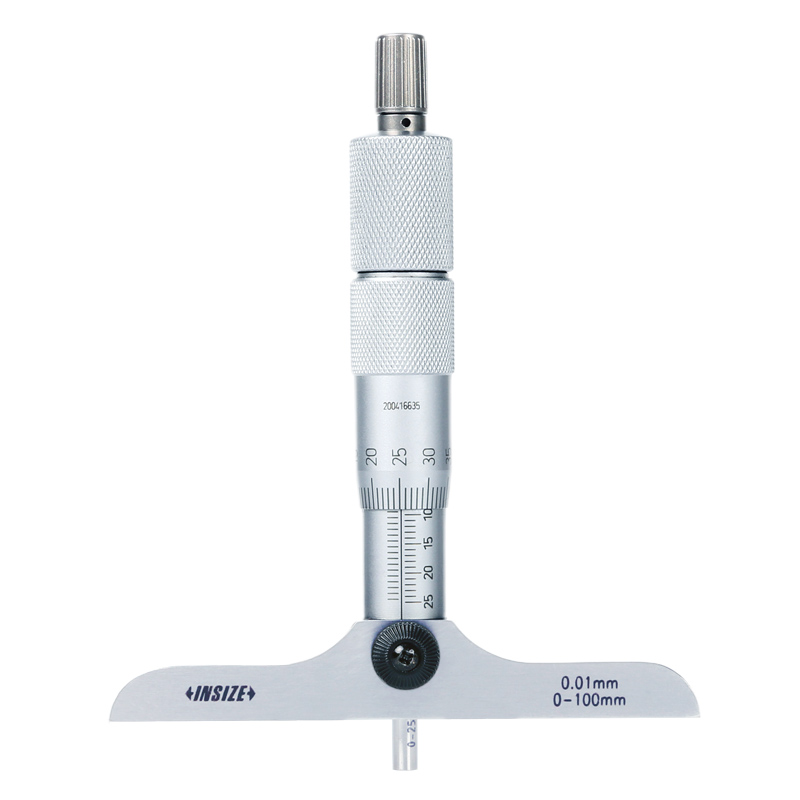

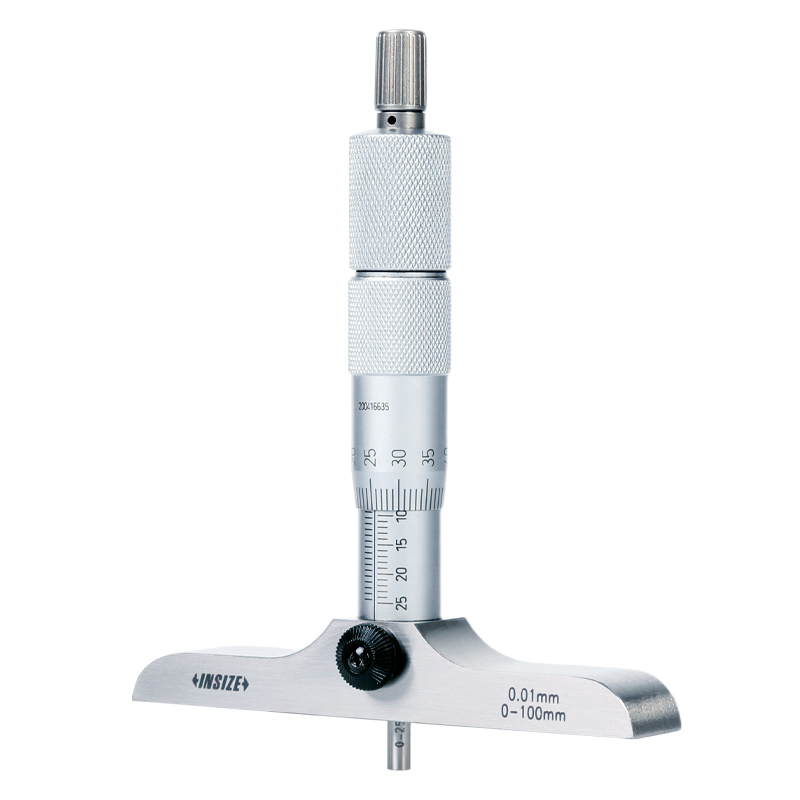

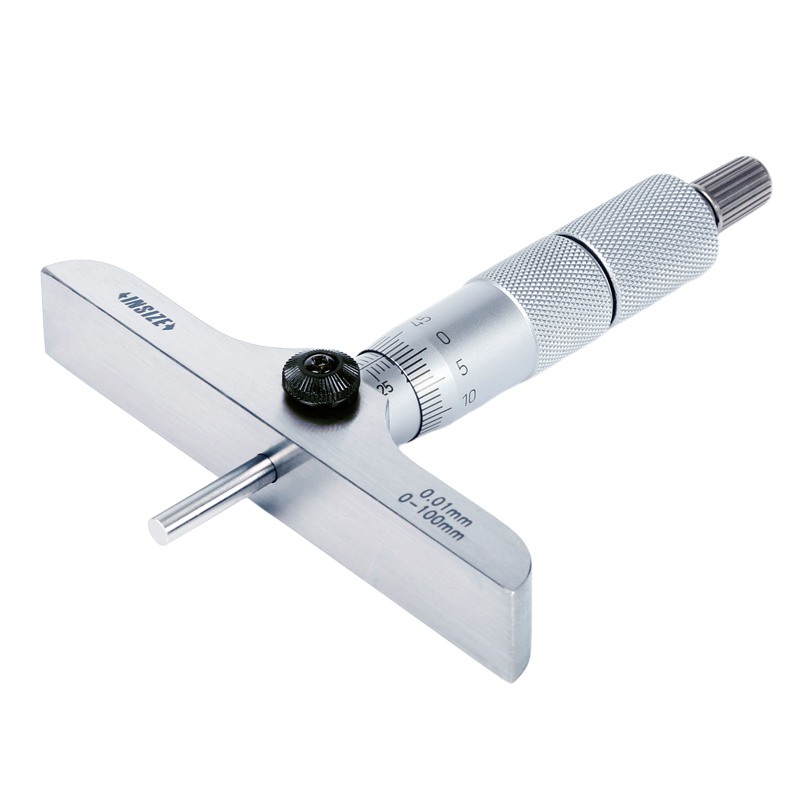

深度千分尺
型号: 3241
符合JJG深度千分尺国家计量检定规程
分度值: 0.01mm
微分头精度: ±3μm
测杆精度: ±(2+L/75)μm, L是测量范围(mm)
测杆为平测头
棘轮测力
| 型号 | 测量范围 | 分度值 | 底板测量面长度 |
|---|---|---|---|
| 3241-25C | 0-25mm | 0.01mm | 101.5mm |
| 3241-50C | 0-50mm | 0.01mm | 101.5mm |
| 3241-75C | 0-75mm | 0.01mm | 101.5mm |
| 3241-100C | 0-100mm | 0.01mm | 101.5mm |
| 3241-150C | 0-150mm | 0.01mm | 101.5mm |
| 3241-200C | 0-200mm | 0.01mm | 101.5mm |
| 3241-300C | 0-300mm | 0.01mm | 101.5mm |
| 3241-B25C | 0-25mm | 0.01mm | 63mm |
| 3241-B50C | 0-50mm | 0.01mm | 63mm |
| 3241-B100C | 0-100mm | 0.01mm | 63mm |
| 3241-B150C | 0-150mm | 0.01mm | 63mm |
| 3241-B300C | 0-300mm | 0.01mm | 63mm |
