外径千分尺
Code: 3203
符合JJG外径千分尺国家计量检定规程
分度值: 0.01mm
硬质合金测量面
棘轮测力
配标准杆(除0-25mm外)
| Code | Range | Accuracy | Type | Graduation |
|---|---|---|---|---|

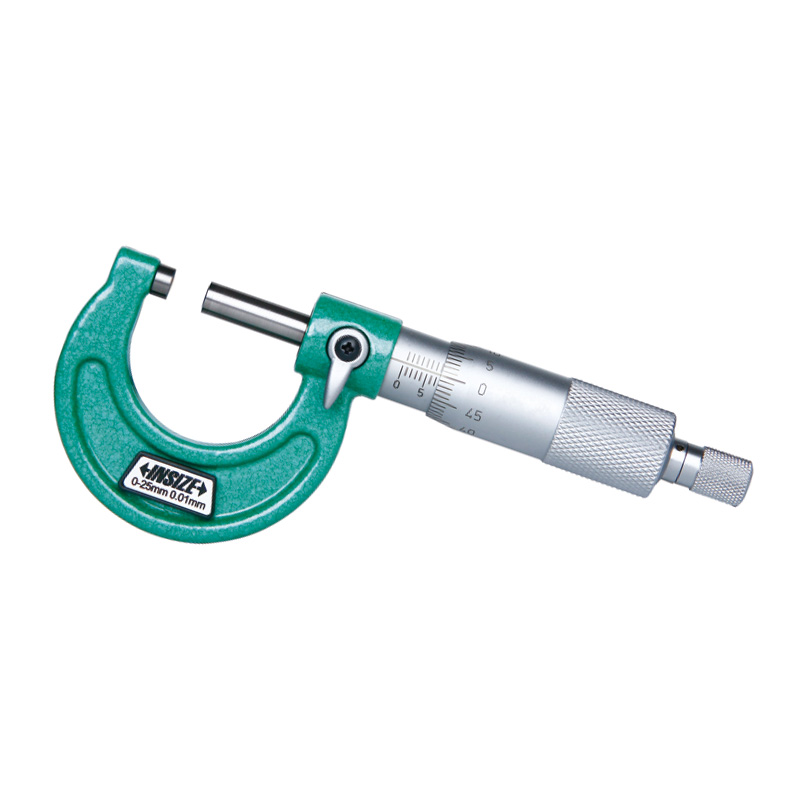

| 3203-25A | 0-25mm | ±2μm | metric (ratchet stop) | 0.01mm |

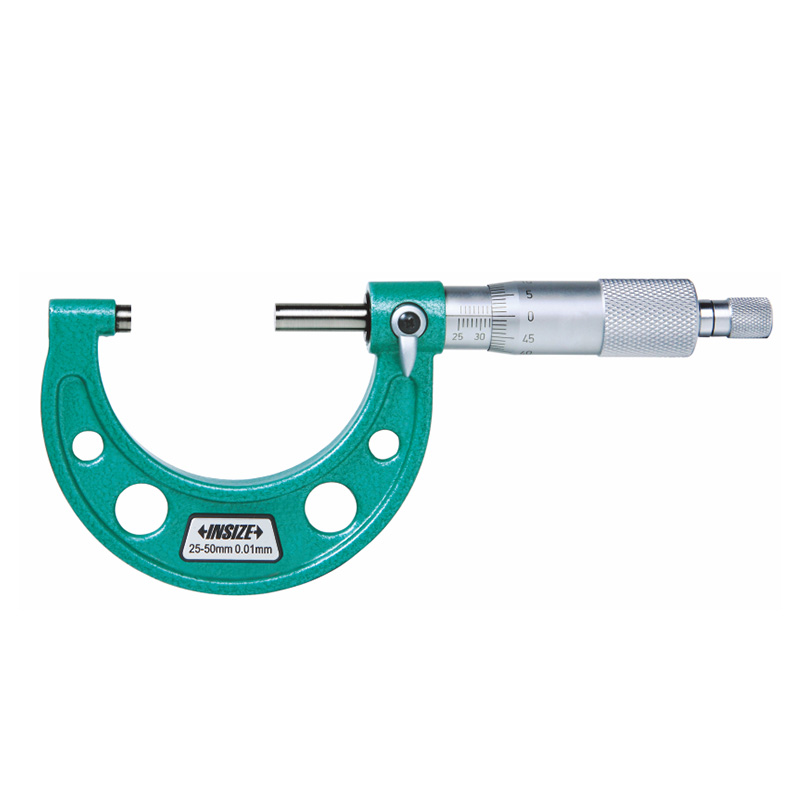

| 3203-50A | 25-50mm | ±2μm | metric (ratchet stop) | 0.01mm |
| 3203-75A | 50-75mm | ±2μm | metric (ratchet stop) | 0.01mm |
| 3203-100A | 75-100mm | ±3μm | metric (ratchet stop) | 0.01mm |
| 3203-125A | 100-125mm | ±3μm | metric (ratchet stop) | 0.01mm |
| 3203-150A | 125-150mm | ±3μm | metric (ratchet stop) | 0.01mm |
| 3203-175A | 150-175mm | ±4μm | metric (ratchet stop) | 0.01mm |
| 3203-200A | 175-200mm | ±4μm | metric (ratchet stop) | 0.01mm |
| 3203-225A | 200-225mm | ±4μm | metric (ratchet stop) | 0.01mm |
| 3203-250A | 225-250mm | ±5μm | metric (ratchet stop) | 0.01mm |
| 3203-275A | 250-275mm | ±5μm | metric (ratchet stop) | 0.01mm |
| 3203-300A | 275-300mm | ±5μm | metric (ratchet stop) | 0.01mm |

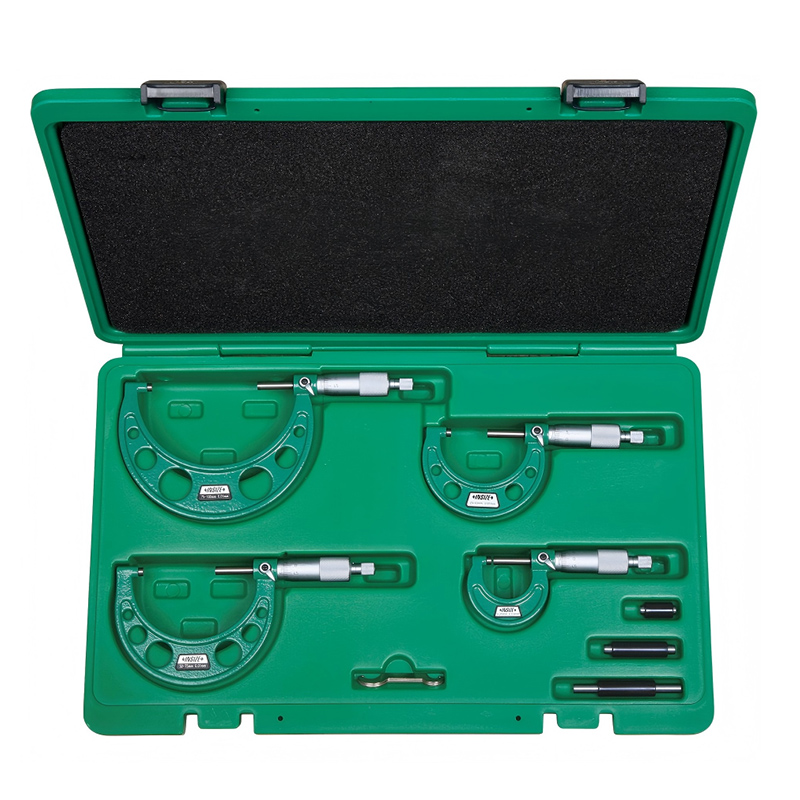

| 3203-753A (Set) | 0-75mm | ±2μm | metric micrometer set (ratchet stop) | 0.01mm |
| 3203-1004A (Set) | 0-100mm | ±2~±3μm | metric micrometer set (ratchet stop) | 0.01mm |
| 3203-1506A (Set) | 0-150mm | ±2~±3μm | metric micrometer set (ratchet stop) | 0.01mm |

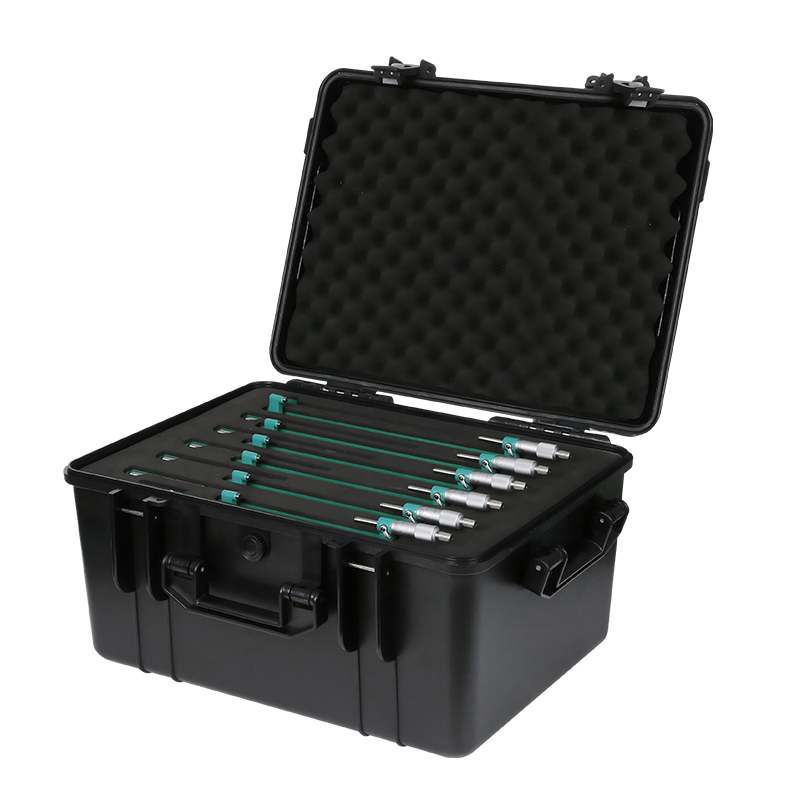

| 3203-3006A (Set) | 150-300mm | ±4~±5μm | metric micrometer set (ratchet stop) | 0.01mm |
| 3203-3012A (Set) | 0-300mm | ±2~±5μm | metric micrometer set (ratchet stop) | 0.01mm |
| 3203-1A | 0-1" | ±0.0001" | inch (ratchet stop) | 0.0001" |
| 3203-2A | 1-2" | ±0.0001" | inch (ratchet stop) | 0.0001" |
| 3203-3A | 2-3" | ±0.0001" | inch (ratchet stop) | 0.0001" |
| 3203-4A | 3-4" | ±0.00015" | inch (ratchet stop) | 0.0001" |
| 3203-5A | 4-5" | ±0.00015" | inch (ratchet stop) | 0.0001" |
| 3203-6A | 5-6" | ±0.00015" | inch (ratchet stop) | 0.0001" |
| 3203-7A | 6-7" | ±0.0002" | inch (ratchet stop) | 0.0001" |
| 3203-8A | 7-8" | ±0.0002" | inch (ratchet stop) | 0.0001" |
| 3203-9A | 8-9" | ±0.0002" | inch (ratchet stop) | 0.0001" |
| 3203-10A | 9-10" | ±0.00025" | inch (ratchet stop) | 0.0001" |
| 3203-11A | 10-11" | ±0.00025" | inch (ratchet stop) | 0.0001" |
| 3203-12A | 11-12" | ±0.00025" | inch (ratchet stop) | 0.0001" |
| 3203-33A (Set) | 0-3" | ±0.0001" | inch micrometer set (ratchet stop) | 0.0001" |
| 3203-44A (Set) | 0-4" | ±0.0001"~±0.00015" | inch micrometer set (ratchet stop) | 0.0001" |
| 3203-66A (Set) | 0-6" | ±0.0001"~±0.00015" | inch micrometer set (ratchet stop) | 0.0001" |
| 3203-126A (Set) | 6-12" | ±0.0002"~±0.00025" | inch micrometer set (ratchet stop) | 0.0001" |
| 3203-1212A (Set) | 0-12" | ±0.0001"~±0.00025" | inch micrometer set (ratchet stop) | 0.0001" |
| 3203-1FA | 0-1" | ±0.0001" | inch (friction thimble) | 0.0001" |
| 3203-2FA | 1-2" | ±0.0001" | inch (friction thimble) | 0.0001" |
| 3203-3FA | 2-3" | ±0.0001" | inch (friction thimble) | 0.0001" |
| 3203-4FA | 3-4" | ±0.00015" | inch (friction thimble) | 0.0001" |
| 3203-5FA | 4-5" | ±0.00015" | inch (friction thimble) | 0.0001" |
| 3203-6FA | 5-6" | ±0.00015" | inch (friction thimble) | 0.0001" |
| 3203-7FA | 6-7" | ±0.0002" | inch (friction thimble) | 0.0001" |
| 3203-8FA | 7-8" | ±0.0002" | inch (friction thimble) | 0.0001" |
| 3203-9FA | 8-9" | ±0.0002" | inch (friction thimble) | 0.0001" |
| 3203-10FA | 9-10" | ±0.00025" | inch (friction thimble) | 0.0001" |
| 3203-11FA | 10-11" | ±0.00025" | inch (friction thimble) | 0.0001" |
| 3203-12FA | 11-12" | ±0.00025" | inch (friction thimble) | 0.0001" |
