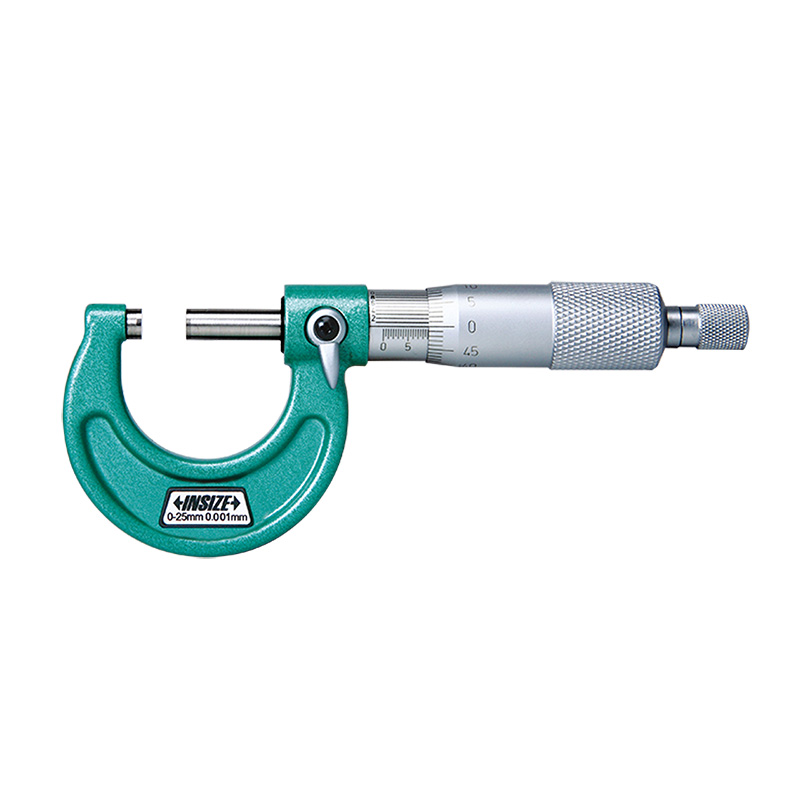

微米外径千分尺
Code: 3210
符合JJG外径千分尺国家计量检定规程
分度值: 0.001mm
硬质合金测量面
棘轮测力
配标准杆(除0-25mm外)

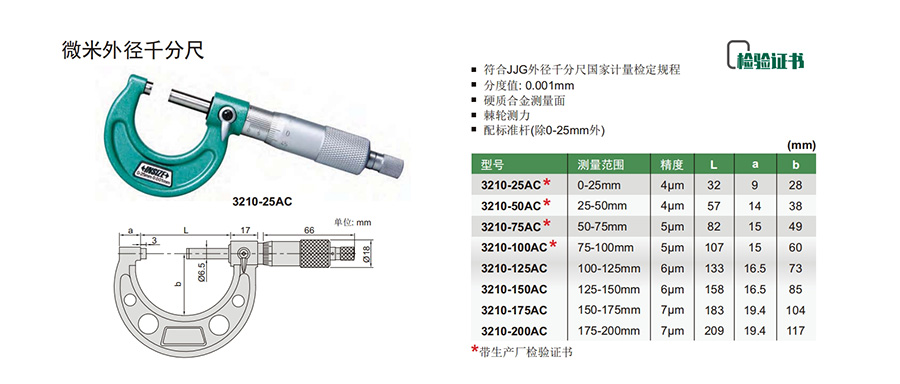

| Code | Range | Accuracy | Type | Graduation |
|---|---|---|---|---|
| 3210-25A | 0-25mm | 4μm | ratchet stop | 0.001mm |
| 3210-50A | 25-50mm | 4μm | ratchet stop | 0.001mm |
| 3210-75A | 50-75mm | 5μm | ratchet stop | 0.001mm |
| 3210-100A | 75-100mm | 5μm | ratchet stop | 0.001mm |
| 3210-125A | 100-125mm | 6μm | ratchet stop | 0.001mm |
| 3210-150A | 125-150mm | 6μm | ratchet stop | 0.001mm |
| 3210-175A | 150-175mm | 7μm | ratchet stop | 0.001mm |
| 3210-200A | 175-200mm | 7μm | ratchet stop | 0.001mm |
| 3210-25FA | 0-25mm | 4μm | friction thimble | 0.001mm |
| 3210-50FA | 25-50mm | 4μm | friction thimble | 0.001mm |
| 3210-753A | 0-75mm | 4~5μm | micrometer set (ratchet stop) | 0.001mm |
| 3210-1004A | 0-100mm | 4~5μm | micrometer set (ratchet stop) | 0.001mm |
| 3210-1506A | 0-150mm | 4~6μm | micrometer set (ratchet stop) | 0.001mm |
